Lawn Tractor · 2008Unverified

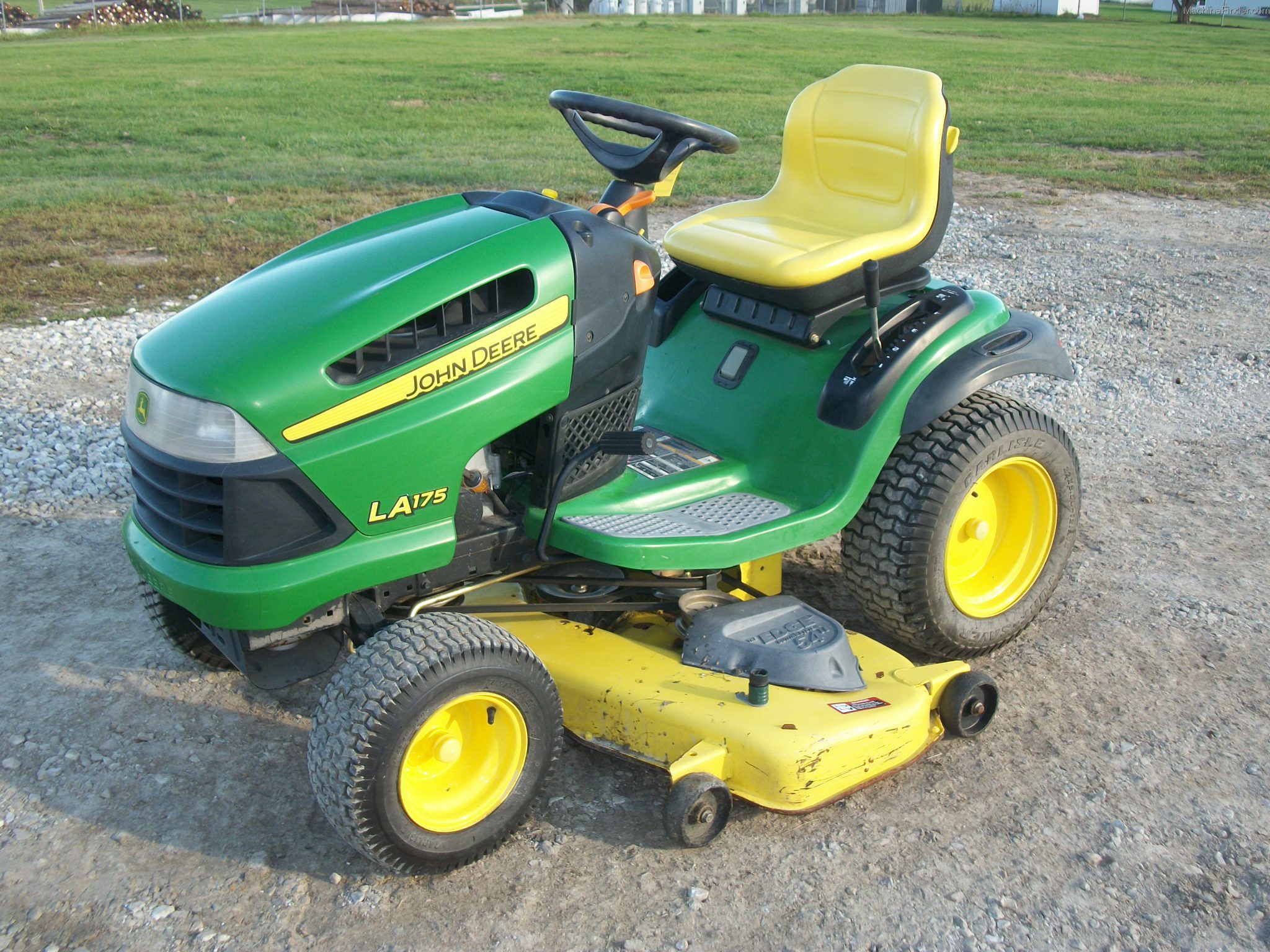

John Deere LA175
John Deere LA175 — LA105 Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
262 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Lawn tractorReference
Built in Greeneville, Tennessee, USAReference
Original price was $2,749 in 2010Reference
Two-wheel driveReference
Manual steeringReference
Open operator station. Adjustable seat (10 position, 5.5-inches travel) and cup holder. Optional nylon canopy.Reference
Engine
26HP Briggs & Stratton 724cc 2-cyl gasolineReference
Fuel tank15.1 LReference
Fuel tank8.5 LReference
Briggs & StrattonReference
gasolineReference
2-cylinderReference
air-cooledReference
Displacement44.2 ciReference
Bore/Stroke79 x 73 mmReference
Power (gross)19.4 kWReference
Air cleanerpaper and foam elementsReference
Starter volts12Reference
Sparkplug gap0.762 mmReference
Intake valve clearance0.127 mmReference
Exhaust valve clearance0.127 mmReference
Oil capacity1.9 LReference
Image courtesy of Derek WoodwardReference
Transmission
hydrostaticReference
TransmissionTuff Torq K46Reference
Typebelt-driven hydrostaticReference
Gearsinfinite forward and reverseReference
Oil changesealed unit, owner service is not recommendedReference
Dimensions
Wheelbase124 cmReference
Weight262 kgReference
Front tire16x6.5-8Reference
Rear tire22x9.5-12Reference
Lawn/turf front16x6.5-8Reference
Lawn/turf rear22x9.5-12Reference
Length175 cmReference
Width173 cmReference
Height114 cmReference
John Deere LA175 attachments
54" mid-mount mower deckReference
snowblowerReference
bladeReference
LA175 Serial Number Location
Serial number plate under the left-rear fender.Reference
LA175 Serial Numbers
2008050001Reference
2009200001Reference
2010300001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging amps16Reference
Battery volts12Reference
Battery GroupU1Reference
Questions
I have a LA105 and I see a picture of the choke sign on the dash but have no clue where the knob or lever is. The choke is engaged at the full throttle position. Once the engine is running the throttle lever should be moved just below this position to disengage the choke.Reference
Attachment overview
54" mid-mount mower deckReference
SnowblowerReference
BladeReference
54" Mower deck
Typemid-mount John Deere 54 EdgeReference
Type3-blade with manual liftReference
Cutting width137 cmReference
Overall width173 cmReference
Cut height2 to 10 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
