Tractor · 1947Unverified
John Deere M
John Deere M — Two-Cylinder Letter Series · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Max power
13.5 kW
Weight
1179 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Dubuque, Iowa, USAReference
Total built45,799Reference
Original price was $1,075 in 1952Reference
The M had been in development for several years during World War II prior to its introduction in 1947. The M replaced the H, L, and LA models. Three additional variants; the MT tricycle, MC crawler model, and MI industrial model were also built. The M was the first tractor to be produced at Deere's new Dubuque factory. It was the first to use Deere's Touch-O-Matic hydraulic system. PTO and electric starting were standard features.Reference
Two-wheel driveReference
Manual steeringReference
Differential mechanical disc brakesReference
Open operator station.Reference
Variants
MutilityReference
MTrow-cropReference
MCcrawlerReference
MIindustrialReference
Engine
John Deere 1.6L 2-cyl gasolineReference
Fuel tank37.9 LReference
Drawbar (claimed)13.4 kWReference
Belt (claimed)14.9 kWReference
Drawbar (tested)13.5 kWReference
Belt (tested)15.2 kWReference
John DeereReference
gasolineReference
2-cylinderReference
liquid-cooledReference
The model M engine was also available as an all-fuel engine. Production numbers are unknown.Reference
Displacement1.6 LReference
Bore/Stroke102 x 102 mmReference
Compression6:1Reference
Rated RPM1650Reference
Firing order1-2Reference
Starter volts6Reference
Oil capacity4.7 LReference
Coolant capacity13.2 LReference
Sparkplug gap0.635 mmReference
Point gap0.559 mmReference
Intake valve clearance0.305 mmReference
Exhaust valve clearance0.305 mmReference

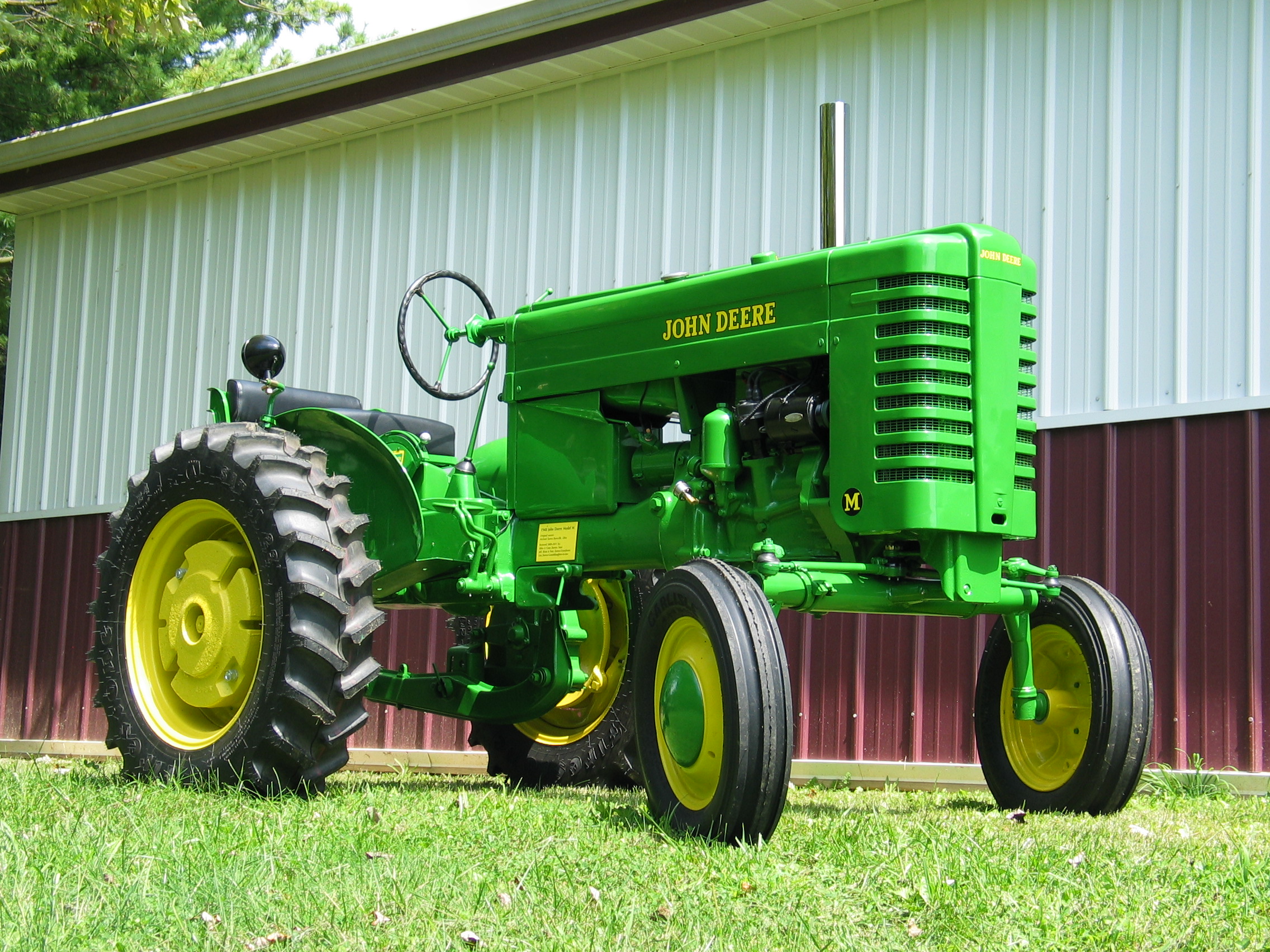

Image courtesy of JohnReference
Belt power (max)15.2 kWReference
Max power13.5 kWReference
Transmission
4-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears4 forward and 1 reverseReference
PTO & Hydraulics
TypeTouch-O-MaticReference
Pressure48.3 barReference
Total flow16.1 lpmReference
Oil type10WReference
TypeDeere Quik-TatchReference
Rear PTOtransmissionReference
Rear PTO Type550Reference
Dimensions
Wheelbase177 cmReference
Weight1179 kgReference
Front tire4.00x15Reference
Rear tire8-24Reference
Ag front4.00x15Reference
Ag rear8-24Reference
Ag front5.00x15Reference
Ag rear9-24Reference
Ag rear10-24Reference
Length279 cmReference
Width129 cmReference
Height (hood)142 cmReference
Height (exhaust)167 cmReference
Operating weight1179 kgReference
Ground clearance53 cmReference
Front tread96 to 132 cmReference
Rear tread96 to 132 cmReference
M Serial Number Location
Serial number plate located on the lower part of dash.Reference
M Serial Numbers
194710001Reference
194813734Reference
194925604Reference
195035659Reference
195143525Reference
195250580Reference
Final55799Reference
FAQ: How to read a serial number table.Reference
Links
M 3-point Hitch Conversion: Modification of the M's hitch to a three-point hitchReference
Capacities
Diameter18 cmReference
Width16 cmReference
RPM1575Reference
Speed911.05 meters/minReference
Electrical
GroundpositiveReference
Battery volts6Reference
Test results
Gasoline 4-speed 2WDOctober 6 - 16, 1947Link: Nebraska Tractor Test 387 fileReference
Belt fuel use (max)7.6 l/hourReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Max pull1056 kgReference
Gear 1 used for pull test.Reference
Speeds
With 9-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
