Tractor · 1949Unverified

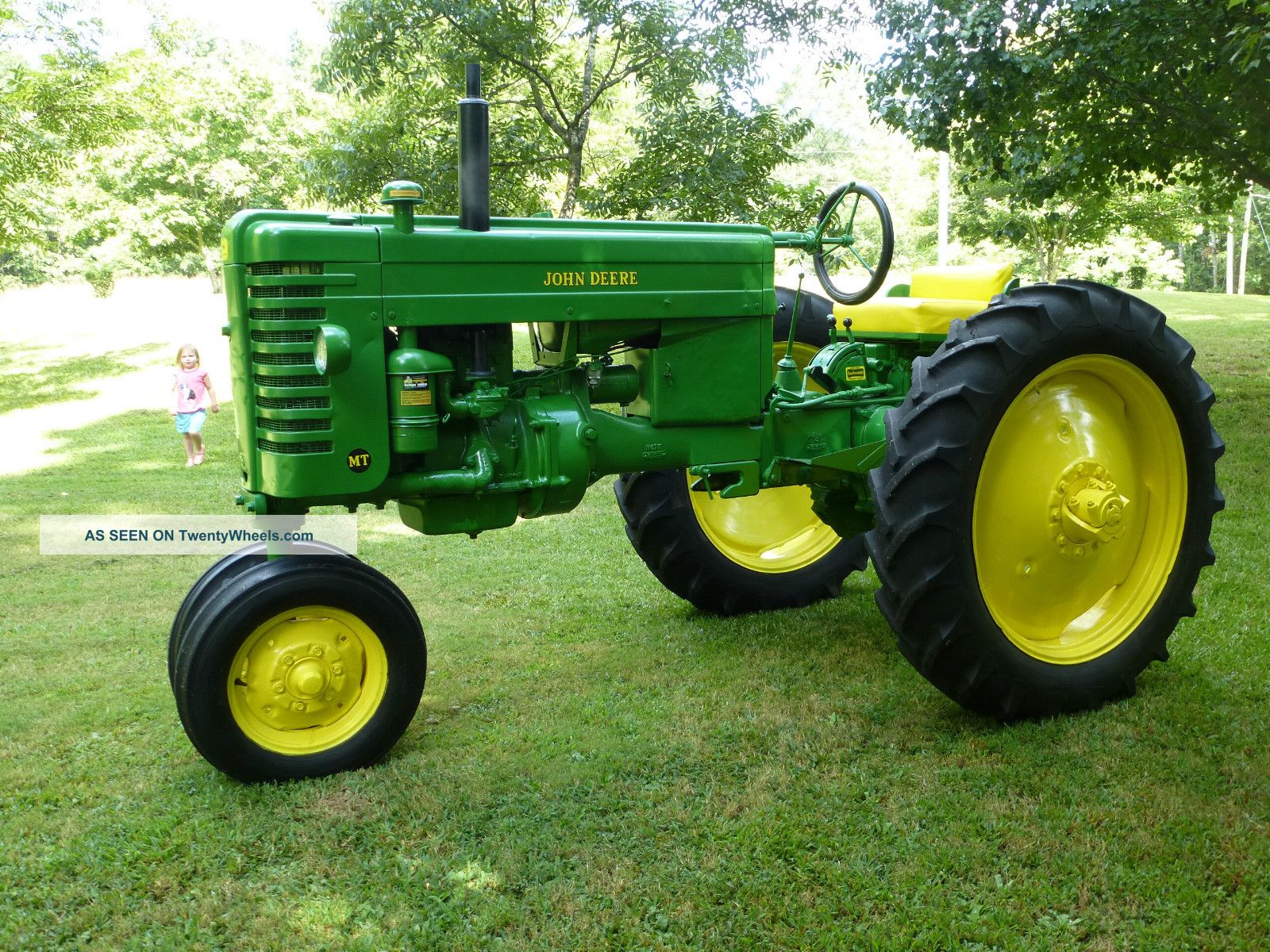

John Deere MT
John Deere MT — Two-Cylinder Letter Series · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Max power
13.6 kW
Weight
1443 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Dubuque, Iowa, USAReference
Total built30,472Reference
Original price$1,200Reference
The MT is a tricycle version of the model M. It was the first Deere tractor to feature dual-control Touch-O-Matic hydraulics, allowing each side to be raised independently. The MT was available with a single front wheel, dual front wheels, Roll-O-Matic, or adjustable wide-front. The Roll-O-Matic was designed to reduce shock in the front end of the tractor.Reference
Two-wheel driveReference
SteeringmanualReference
Differential mechanical drum brakesReference
Open operator station.Reference
Variants
MutilityReference
MTrow-cropReference
MCcrawlerReference
MIindustrialReference
Engine
John Deere 1.6L 2-cyl gasolineReference
Fuel tank34.1 LReference
Drawbar (claimed)10.5 kWReference
Belt (claimed)13.7 kWReference
Drawbar (tested)13.6 kWReference
Belt (tested)15.5 kWReference
John DeereReference
gasolineReference
2-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke102 x 102 mmReference
Air cleaneroil bathReference
Compression6:1Reference
Rated RPM1650Reference
Firing order1-2Reference
Starter volts6Reference
Oil capacity4.7 LReference
Coolant capacity13.2 LReference
Sparkplug gap0.635 mmReference
Point gap0.559 mmReference
Intake valve clearance0.305 mmReference
Exhaust valve clearance0.305 mmReference
Belt power (max)15.5 kWReference
Max power13.6 kWReference
Transmission
4-speed unsynchronized gearReference
TransmissionJohn DeereReference
Typeunsynchronized gearReference
Gears4 forward and 1 reverseReference
PTO & Hydraulics
TypeTouch-O-MaticReference
Pressure48.3 barReference
Total flow16.1 lpmReference
Rear PTO Type550Reference
Dimensions
Weight1443 kgReference
Front tire5.00x15Reference
Rear tire9-34Reference
Ag front5.00x15Reference
Ag rear9-34Reference
Length318 cmReference
Width227 cmReference
Height149 cmReference
Operating weight1443 kgReference
Ballasted weight1782 kgReference
Rear tread121 to 243 cmReference
MT Serial Number Location
On instrument panel under ignition switchReference
MT Serial Numbers
194910001Reference
195014728Reference
195125273Reference
195232813Reference
FAQ: How to read a serial number table.Reference
Links
M 3-point Conversion: A conversion of the Touch-O-Matic to a three-point systemReference
Capacities
Diameter18 cmReference
Width16 cmReference
RPM1575Reference
Speed911.35 meters/minReference
Electrical
GroundpositiveReference
Battery volts6Reference
Test results
Gasoline 4-speed 2WDSeptember 7 - 16, 1949Link: Nebraska Tractor Test 423 fileReference
Belt fuel use (max)7.9 l/hourReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Max pull1081 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
