Tractor · 2002Unverified

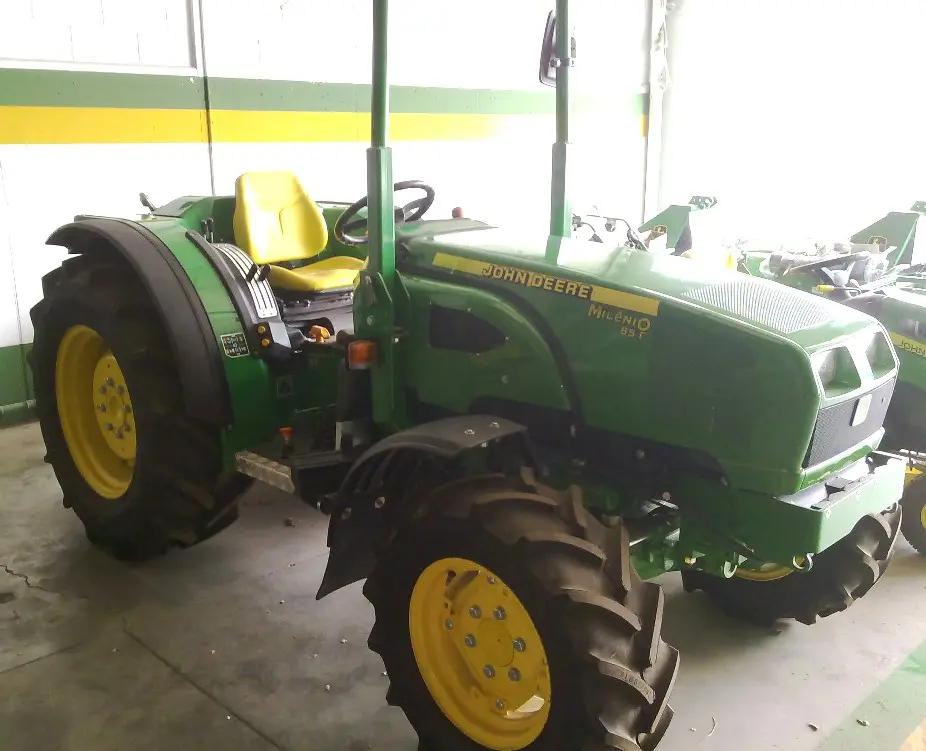

John Deere Q-85
John Deere Q-85 — Milenio F Series · 85 hp. Reference specifications; pending source verification.
The John Deere Q-85 is a tractor model rated at approximately 85 horsepower, falling within the mid-range of its class. It was produced from 2002 to 2010. The Q-85 is equipped with a 4-cylinder turbocharged diesel liquid-cooled engine and features four-wheel drive with a 16-speed gearbox. Its listed operating weight is 2219 kilograms, with a maximum operating capacity of 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Weight
2219 kg
Catalogue coverage
Variants represented
2
Richest spec table
43 rows
Recorded power
85 hp
Recorded weight
2219 kg
Transmissions
16-speed
Production years
2002-2010
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
DistributorJohn DeereReference
ManufacturerGoldiniReference
Orchard/Vineyard tractorReference
Built in ItalyReference
Four-wheel driveReference
Power steeringReference
Disc brakesReference
Two-post mid-mount folding ROPS.Reference
Engine
VM Motori 2.8L 4-cyl dieselReference
Engine (gross)63.4 kWReference
VM Motori D704Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.8 LReference
Bore/Stroke94 x 100 mmReference
Rated Power (gross)63.4 kWReference
Rated RPM2600Reference
Torque290.0 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
8-speedReference
Gears16 forward and 8 reverseReference
Clutch280mm mechanical dry discReference
Gears8 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow39.0 lpmReference
Rear TypeII/IReference
Rear lift (at ends)2500 kgReference
Rear PTO Type540/540EReference
Dimensions
Wheelbase184 cmReference
Weight2219 kgReference
Front tire280/70-20Reference
Rear tire320/70-24Reference
Standard tires (ag)Front: 280/70-20. Rear: 320/70-24Reference
Length328 cmReference
Height215 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
