· 2015 Unverified John Deere X105 John Deere X105 — X100 Series · 9 hp. Reference specifications; pending source verification.
The John Deere X105 is a compact lawn tractor model with a rated engine power of 9 hp, manufactured in 2015. It is equipped with a 1-cylinder petrol air-cooled engine, which drives the two-wheel drive system through a continuously variable transmission. The model's listed weight is 186 kg. It is intended for use on small to medium-sized lawns, typically up to 200 acres in size.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Richest spec table
39 rows
Transmissions
mechanical CVT
Production years
2015-2015
1 linked source document displayed
Specifications Description Maintenance Troubleshooting Ownership Reviews Q&A Docs & sources
Hover a source tag to verify UK metric US imperial
Manufacturer John Deere Reference
Lawn tractor Reference
Built in Greeneville, Tennessee, USA Reference
Two-wheel drive Reference
Manual steering Reference
Open operator station. Reference
6.9KW Briggs & Stratton 344cc 1-cyl gasoline Reference
Fuel tank 9.1 L Reference
Briggs & Stratton Reference
gasoline Reference
1-cylinder Reference
air-cooled vertical-shaft Reference
Displacement 21 ci Reference
Bore/Stroke 87 x 57 mm Reference
Power (gross) 6.9 kW Reference
Rated RPM 3350 Reference
Starter electric Reference
Starter volts 12 Reference
mechanical CVT Reference
Type mechanical CVT Reference
Gears infinite forward and reverse Reference
Mid PTO independent Reference
Clutch mechanical Reference
Wheelbase 122 cm Reference
Weight 186 kg Reference
Front tire 15x6-6 Reference
Rear tire 20x8-8 Reference
Lawn/turf front 15x6-6 Reference
Lawn/turf rear 20x8-8 Reference
Length 187 cm Reference
Width 132 cm Reference
Height 103 cm Reference
106 cm mid-mount mower deck Reference
Ground negative Reference
Battery volts 12 Reference
Type mid-mount John Deere Reference
Type manual lift Reference
Cutting width 106 cm Reference
Cut height 2 to 9 cm Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
Partner tool · Free Working out if you can afford this tractor?
YourIncomeCalculator.com — free, HMRC-aligned take-home pay, self-employment & VAT calculators. No sign-up.
Calculate your take-home pay Recommended kit
Handy kit for owners Popular tractor and farm accessories owners pick up for machines like this.
Disclosure: some links on this page are affiliate links. If you buy through them we may earn a small commission — at no extra cost to you. Learn more .
Compare the John Deere X105 head-to-head Similar lawn tractors John Deere
X115R Unverified
9 hp
John Deere

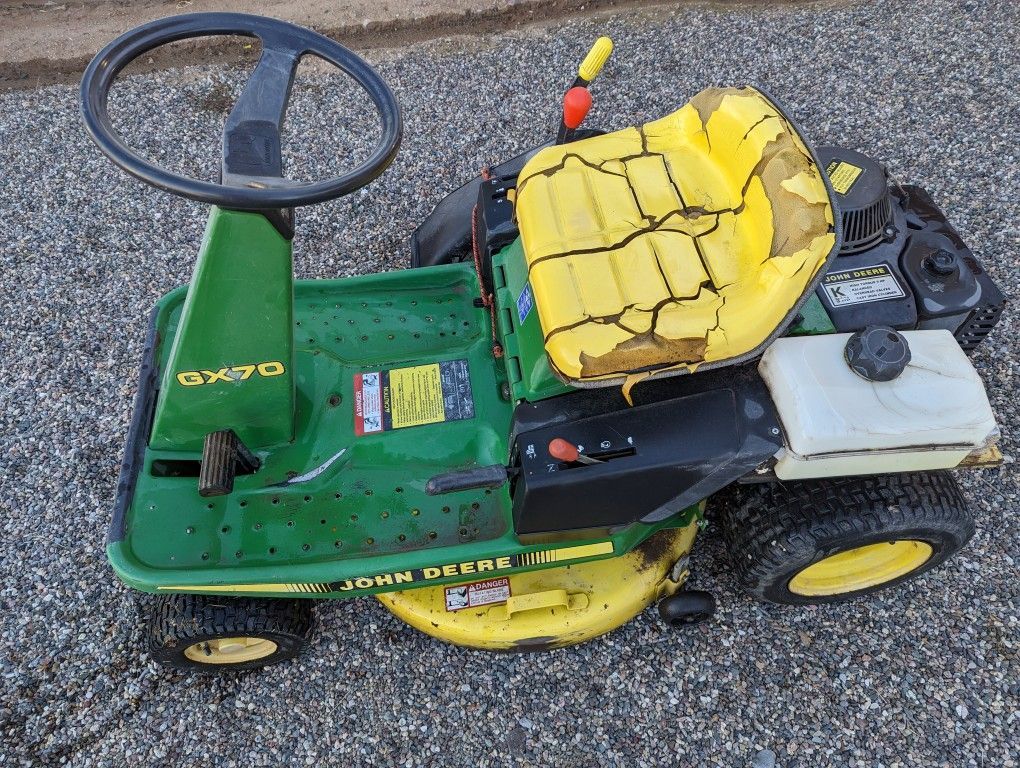

GX70 Unverified
9 hp
John Deere

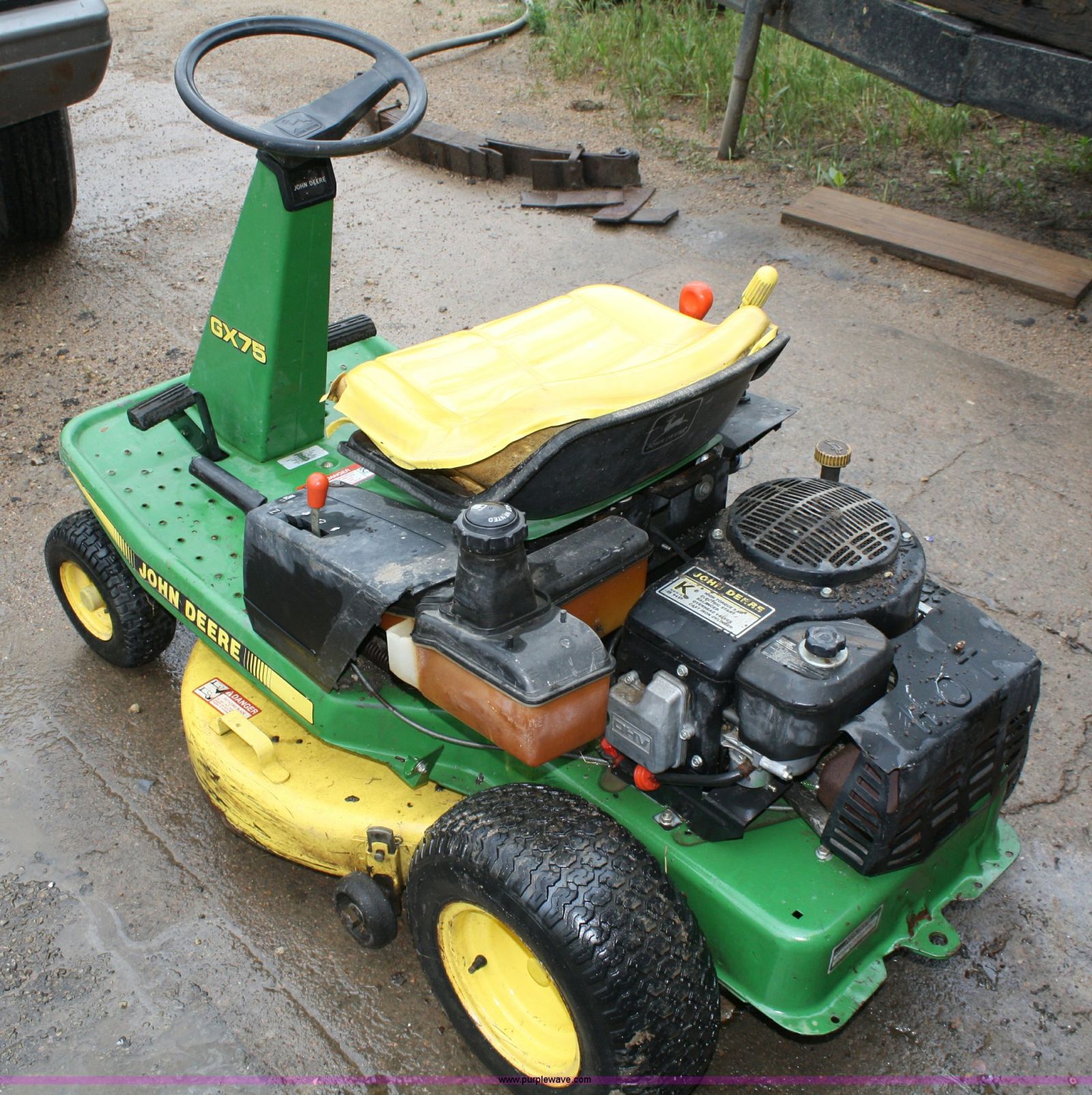

GX75 Unverified
9 hp
John Deere

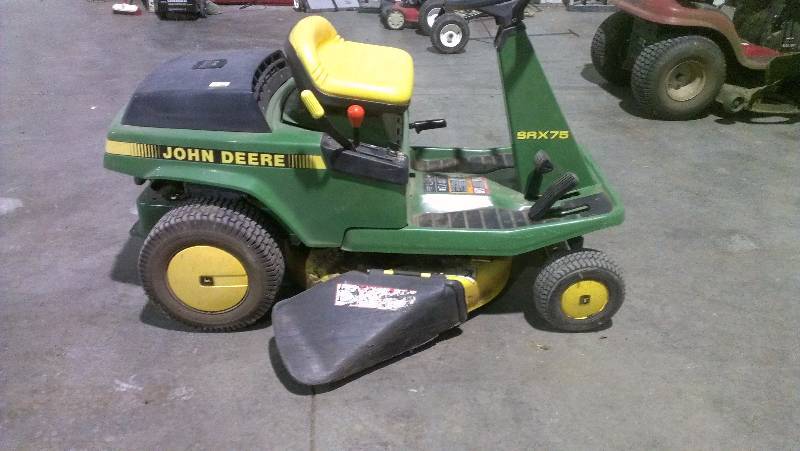

SRX75 Unverified
9 hp
John Deere

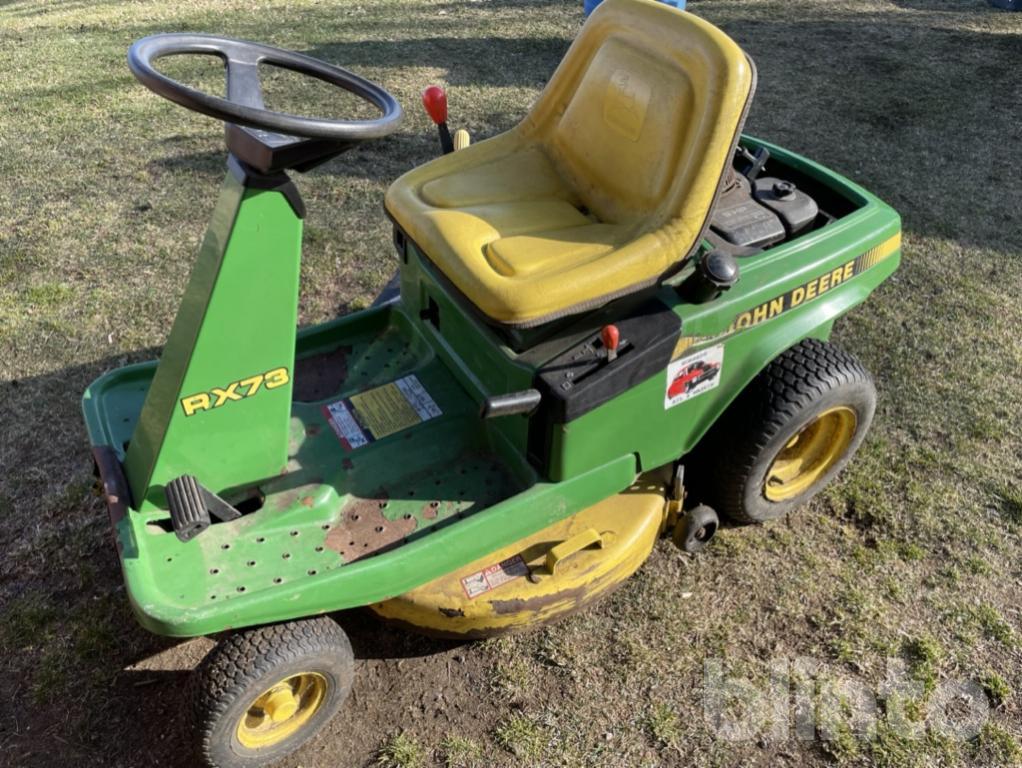

RX73 Unverified
