Lawn Tractor · 2011Unverified

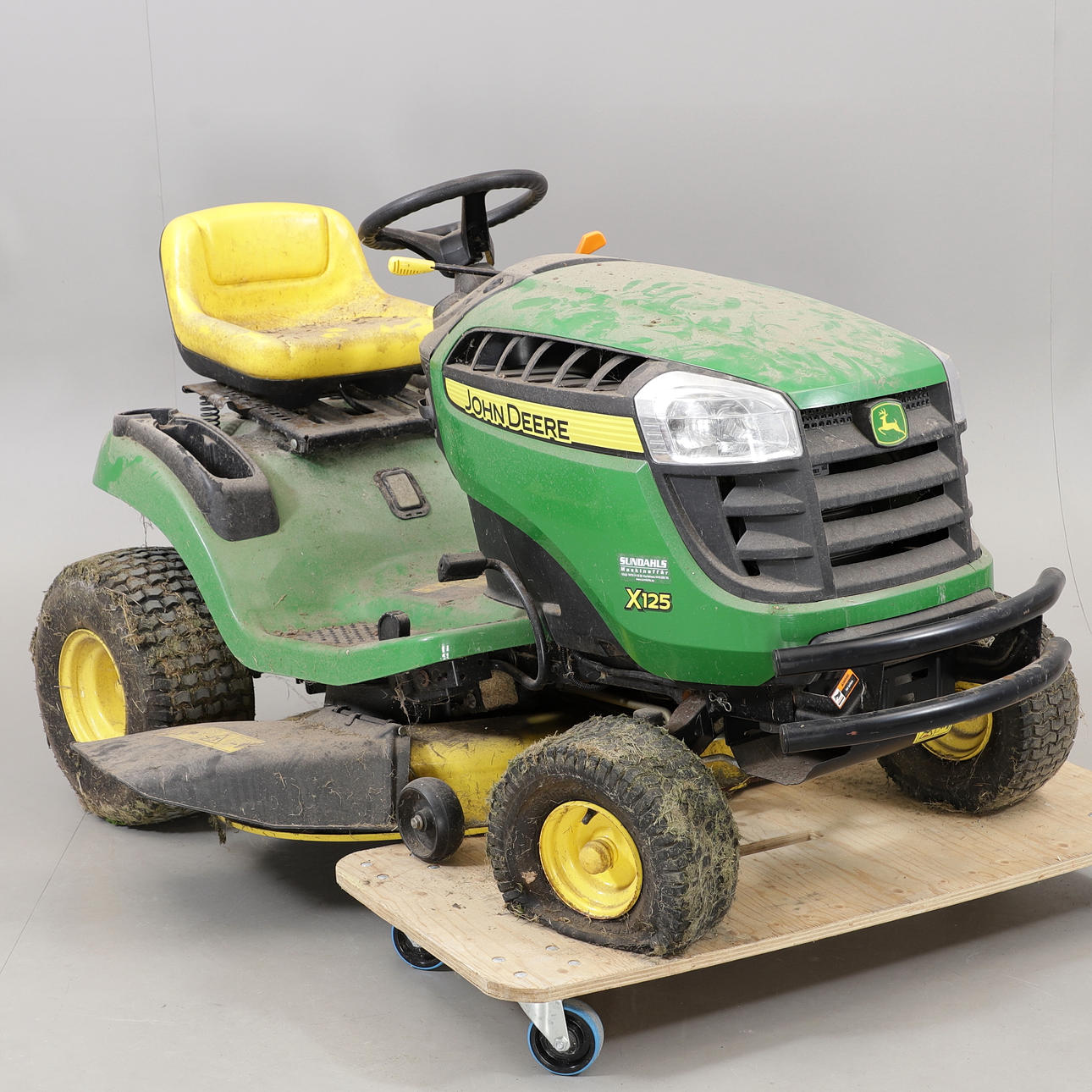

John Deere X125

Name: John Deere X125
Brand: John Deere

John Deere X125 — X100 Series · 13 hp. Reference specifications; pending source verification.

The John Deere X125 is a lawn tractor characterised by a rated power of 13 hp, a mid-range figure for its class. Manufactured from 2011 to 2017, this model features a 1-cylinder petrol air-cooled engine and a two-wheel drive system with hydrostatic transmission. The X125 has an operating weight of 204 kg and is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

13 hp

Weight

204 kg

Catalogue coverage

Variants represented

Richest spec table

47 rows

Recorded power

13 hp

Recorded weight

204 kg

Transmissions

hydrostatic

Production years

2011-2017

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Lawn tractorReference

Built in Greeneville, Tennessee, USAReference

Two-wheel driveReference

SteeringmanualReference

Open operator station.Reference

Engine

10.0KW Briggs & Stratton 501cc 1-cyl gasolineReference

Fuel tank14.8 LReference

Briggs & Stratton 31Reference

gasolineReference

1-cylinderReference

air-cooledReference

Displacement30.6 ciReference

Bore/Stroke91 x 78 mmReference

Power (gross)10.0 kWReference

Air cleanerpaper and foamReference

StarterelectricReference

Starter volts12Reference

Sparkplug gap0.762 mmReference

Point gap0.305 mmReference

Intake valve clearance0.102 mmReference

Exhaust valve clearance0.152 mmReference

Oil capacity1.4 LReference

Transmission

hydrostaticReference

TransmissionTuff Torq T40Reference

TypehydrostaticReference

PTO & Hydraulics

Front PTOindependentReference

ClutchelectricReference

Dimensions

Weight204 kgReference

Front tire15x6.00-6Reference

Rear tire20x8.0-8Reference

Lawn/turf front15x6.00-6Reference

Lawn/turf rear20x8.0-8Reference

Length174 cmReference

Width131 cmReference

Height107 cmReference

John Deere X125 attachments

106 cm mid-mount mower deckReference

Electrical

GroundnegativeReference

Charging systemregulated circuitReference

Charging amps9Reference

Battery volts12Reference

Battery GroupBCI U1Reference

42" Mower deck

Typemid-mount John Deere 42CReference

Type2-blade with manual liftReference

Cutting width106 cmReference

Overall width131 cmReference

Cut height2 to 10 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
