Lawn Tractor · 2011Unverified

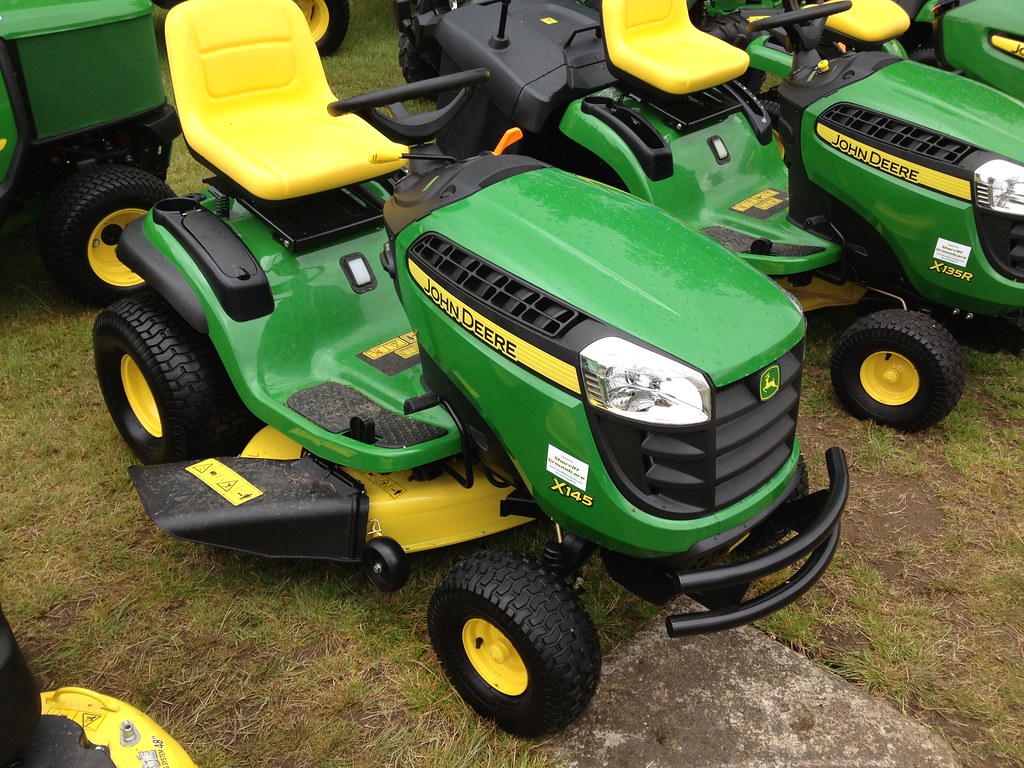

John Deere X145

Name: John Deere X145
Brand: John Deere

John Deere X145 — X100 Series · 14 hp. Reference specifications; pending source verification.

The John Deere X145 is a lawn tractor model with 14 hp of rated power, falling within the mid-range for its class. Manufactured from 2011 to 2014, it features a 1-cylinder petrol air-cooled engine, paired with two-wheel drive and a hydrostatic transmission. The X145 has an operating weight of 204 kg, and is suitable for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

14 hp

Weight

204 kg

Catalogue coverage

Variants represented

Richest spec table

47 rows

Recorded power

14 hp

Recorded weight

204 kg

Transmissions

hydrostatic

Production years

2011-2014

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Lawn tractorReference

Built in Greeneville, Tennessee, USAReference

Two-wheel driveReference

SteeringmanualReference

Open operator station.Reference

Engine

10.3KW Briggs & Stratton 501cc 1-cyl gasolineReference

Fuel tank14.8 LReference

Briggs & Stratton 31Reference

gasolineReference

1-cylinderReference

air-cooledReference

Displacement30.6 ciReference

Bore/Stroke91 x 78 mmReference

Power (gross)10.3 kWReference

Air cleanerpaper and foamReference

StarterelectricReference

Starter volts12Reference

Sparkplug gap0.762 mmReference

Point gap0.305 mmReference

Intake valve clearance0.102 mmReference

Exhaust valve clearance0.152 mmReference

Oil capacity1.4 LReference

Transmission

hydrostaticReference

TransmissionTuff Torq T40Reference

TypehydrostaticReference

PTO & Hydraulics

Front PTOindependentReference

ClutchelectricReference

Dimensions

Weight204 kgReference

Front tire15x6.00-6Reference

Rear tire20x8.0-8Reference

Lawn/turf front15x6.00-6Reference

Lawn/turf rear20x8.0-8Reference

Length174 cmReference

Width131 cmReference

Height113 cmReference

John Deere X145 attachments

106 cm mid-mount mower deckReference

Electrical

GroundnegativeReference

Charging systemregulated circuitReference

Charging amps9Reference

Battery volts12Reference

Battery GroupBCI U1Reference

42" Mower deck

Typemid-mount John Deere 42CReference

Type2-blade with manual liftReference

Cutting width106 cmReference

Overall width131 cmReference

Cut height2 to 10 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
