Lawn Tractor · 2011Unverified

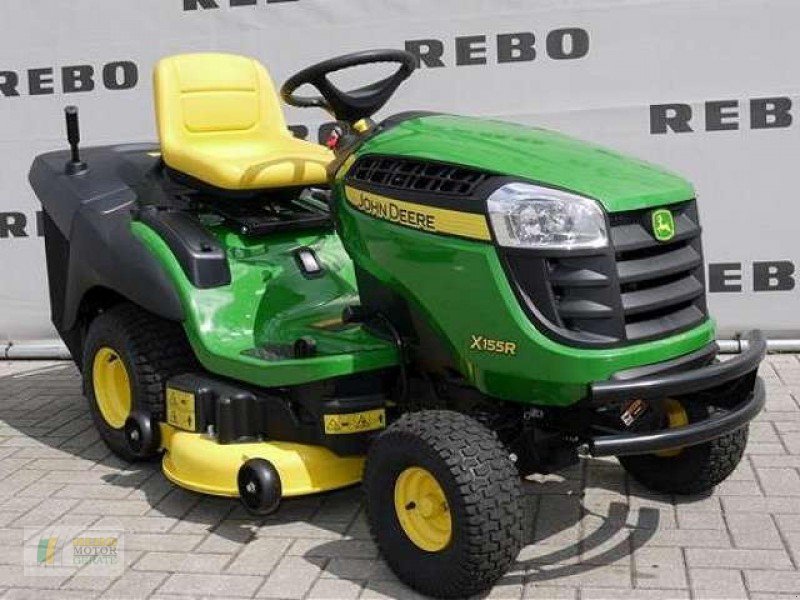

John Deere X155R
John Deere X155R — X100 Series · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
208 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Lawn tractorReference
Built in Greeneville, Tennessee, USAReference
Two-wheel driveReference
SteeringmanualReference
Open operator station.Reference
Engine
12.5KW Briggs & Stratton 655cc 2-cyl gasolineReference
Fuel tank7.6 LReference
Briggs & Stratton 4055Reference
gasolineReference
2-cylinderReference
air-cooledReference
Displacement40 ciReference
Bore/Stroke75 x 73 mmReference
Power (gross)12.5 kWReference
Air cleanerpaper and foamReference
StarterelectricReference
Starter volts12Reference
Sparkplug gap0.762 mmReference
Point gap0.254 mmReference
Intake valve clearance0.127 mmReference
Exhaust valve clearance0.127 mmReference
Oil capacity1.9 LReference
Transmission
hydrostaticReference
TransmissionTuff Torq T40Reference
TypehydrostaticReference
PTO & Hydraulics
Front PTOindependentReference
ClutchelectricReference
Dimensions
Weight208 kgReference
Front tire15x6.00-6Reference
Rear tire18x8.5-8Reference
Lawn/turf front15x6.00-6Reference
Lawn/turf rear18x8.5-8Reference
Length251 cmReference
Width111 cmReference
Height111 cmReference
John Deere X155R attachments
106 cm mid-mount mower deckReference
Electrical
GroundnegativeReference
Charging systemregulated circuitReference
Charging amps9Reference
Battery volts12Reference
Battery GroupBCI U1Reference
42" Mower deck
Typemid-mount John Deere 42CReference
Type2-blade with manual liftReference
Cutting width106 cmReference
Overall width131 cmReference
Cut height2 to 10 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
