Lawn Tractor · 2012Unverified

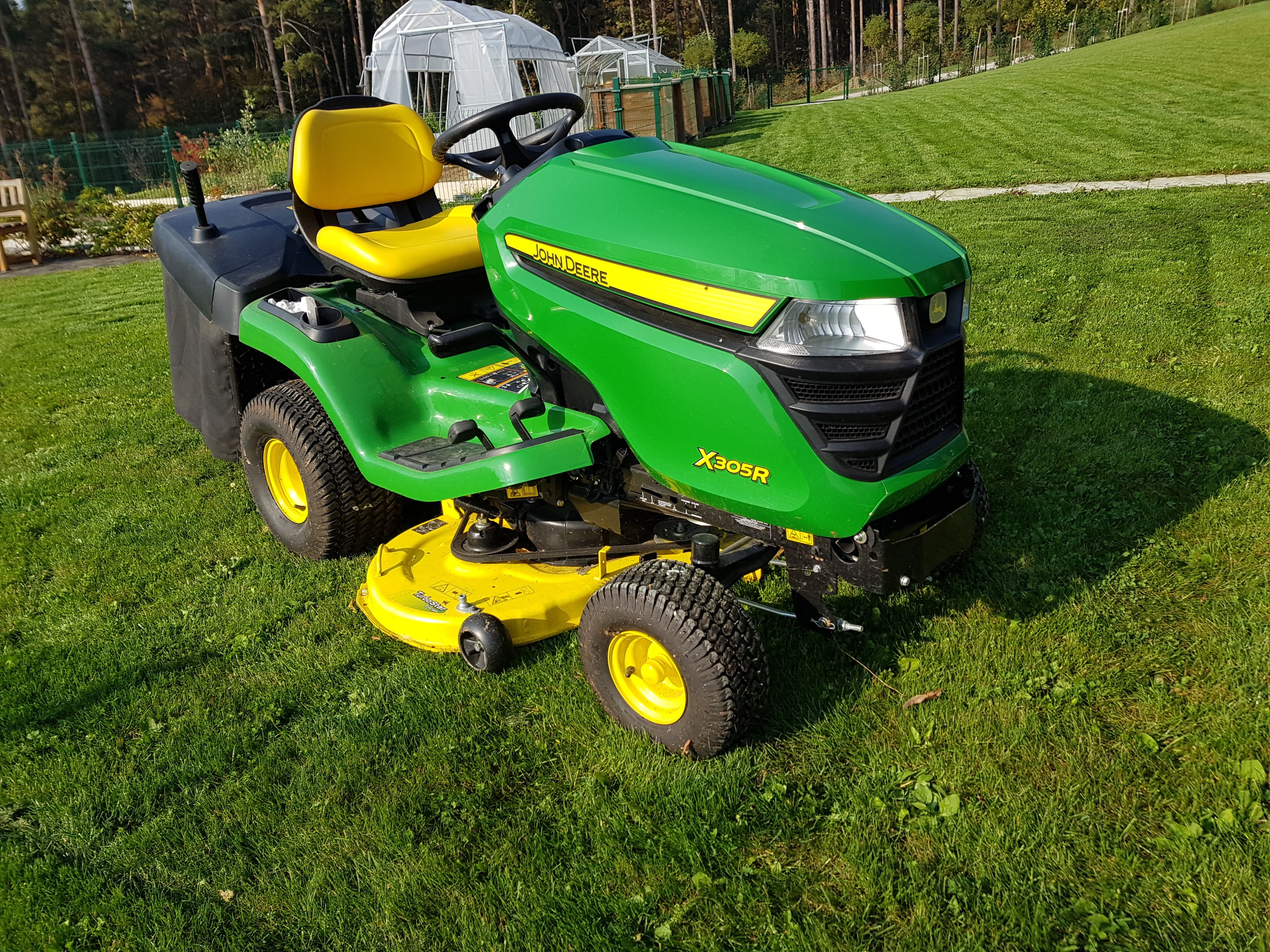

John Deere X305R
John Deere X305R — Select X300 Series · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
314 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Rear-discharge mowerReference
Built in Horicon, Wisconsin, USAReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
12.2KW Kawasaki 603cc 2-cyl gasolineReference
Fuel tank7.6 LReference
Kawasaki FS600VReference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement36.8 ciReference
Bore/Stroke73 x 72 mmReference
Power (gross)12.2 kWReference
Fuel systemcarburetorReference
Rated RPM3100Reference
Starter volts12Reference
Transmission
hydrostaticReference
TransmissionTuff Torq K46Reference
Typebelt-driven hydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Mid PTOindependentReference
ClutchelectricReference
Mid PTO TypepulleyReference
Dimensions
Weight314 kgReference
Front tire15x6.00-6Reference
Rear tire20x10.00-8Reference
Lawn/turf front15x6.00-6Reference
Lawn/turf rear20x10.00-8Reference
Length182 cmReference
Width96 cmReference
Height109 cmReference
Operating weight314 kgReference
John Deere X305R attachments
106 cm mid-mount mower deckReference
snowblowerReference
X305R Serial Numbers
Location:2012Reference
2200012013Reference
2500012014Reference
2800012015Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
106 cm mid-mount mower deckReference
SnowblowerReference
42" Mower deck
Typemid-mount John DeereReference
Type2-bladeReference
Cutting width106 cmReference
Cut height2 to 10 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
