Lawn Tractor · 2012Unverified

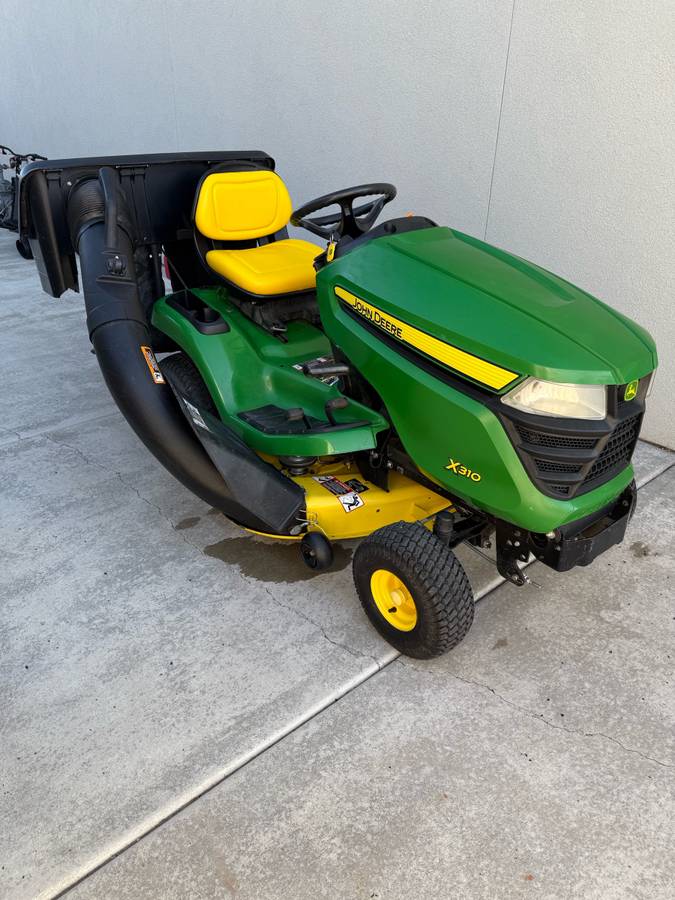

John Deere X310
John Deere X310 — Select X300 Series · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
232 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Lawn tractorReference
Built in Horicon, Wisconsin, USAReference
Original price was $4,000 in 2012Reference
Two-wheel driveReference
Power steeringReference
Internal wet disc brakesReference
Open operator station with 15-inch seat.Reference
Variants
X300manual two-wheel steerReference
X304manual four-wheel steerReference
X310power two-wheel steerReference
Engine
18.5HP Kawasaki 603cc 2-cyl gasolineReference
Fuel tank12.5 LReference
Kawasaki FS600VReference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement36.8 ciReference
Bore/Stroke73 x 72 mmReference
Power (gross)13.8 kWReference
Fuel systemcarburetorReference
Air cleanerdry with foam pre-cleanerReference
Starter volts12Reference
Sparkplug gap0.762 mmReference
Intake valve clearance0.102 mmReference
Exhaust valve clearance0.102 mmReference
Transmission
hydrostaticReference
TransmissionTuff Torq K58HReference
Typebelt-driven hydrostaticReference
Gearsinfinite forward and reverseReference
Oil changesealed unit, owner service is not recommendedReference
PTO & Hydraulics
Mid PTOindependentReference
ClutchelectricReference
Dimensions
Wheelbase125 cmReference
Weight232 kgReference
Front tire15x6-6Reference
Rear tire20x10-8Reference
Weight33 kgReference
Lawn/turf front15x6-6Reference
Lawn/turf rear20x10-8Reference
Length182 cmReference
Width96 cmReference
Height109 cmReference
John Deere X310 attachments
42" mid-mount mower deckReference
snowblowerReference
bladeReference
X310 Serial Number Location
Serial number decal on the right side of the tractor frame, above the front axle.Reference
X310 Serial Numbers
2012220001Reference
2013250001Reference
2014280001Reference
2015310001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging amps15Reference
Battery CCA195Reference
Battery volts12Reference
Attachment overview
42" mid-mount mower deckReference
SnowblowerReference
BladeReference
42" Mower deck
Typemid-mount John Deere 42XReference
Type2-blade with hydraulic liftReference
Cutting width106 cmReference
Overall width134 cmReference
Cut height2 to 10 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
