Lawn Tractor · 2008Unverified

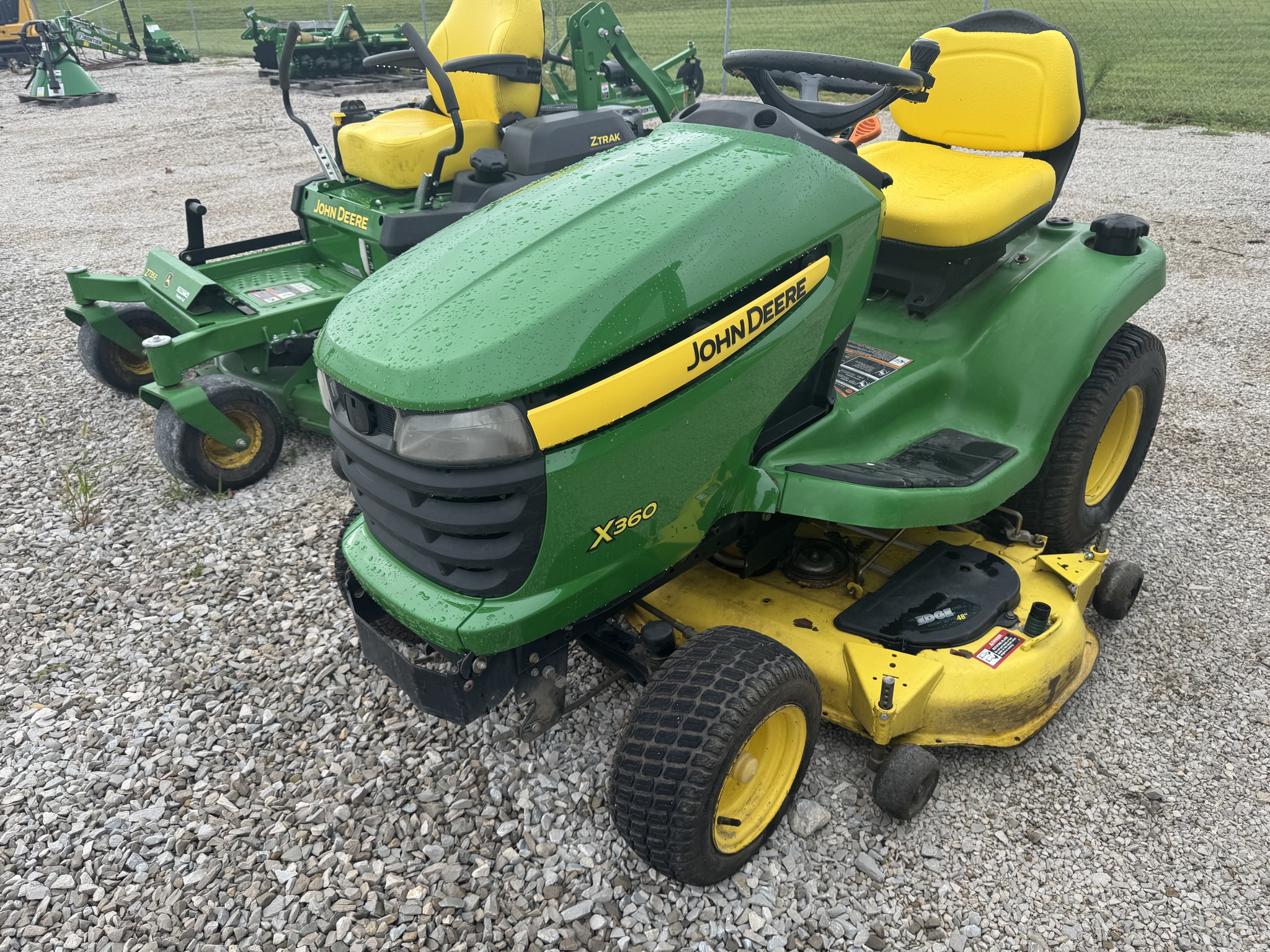

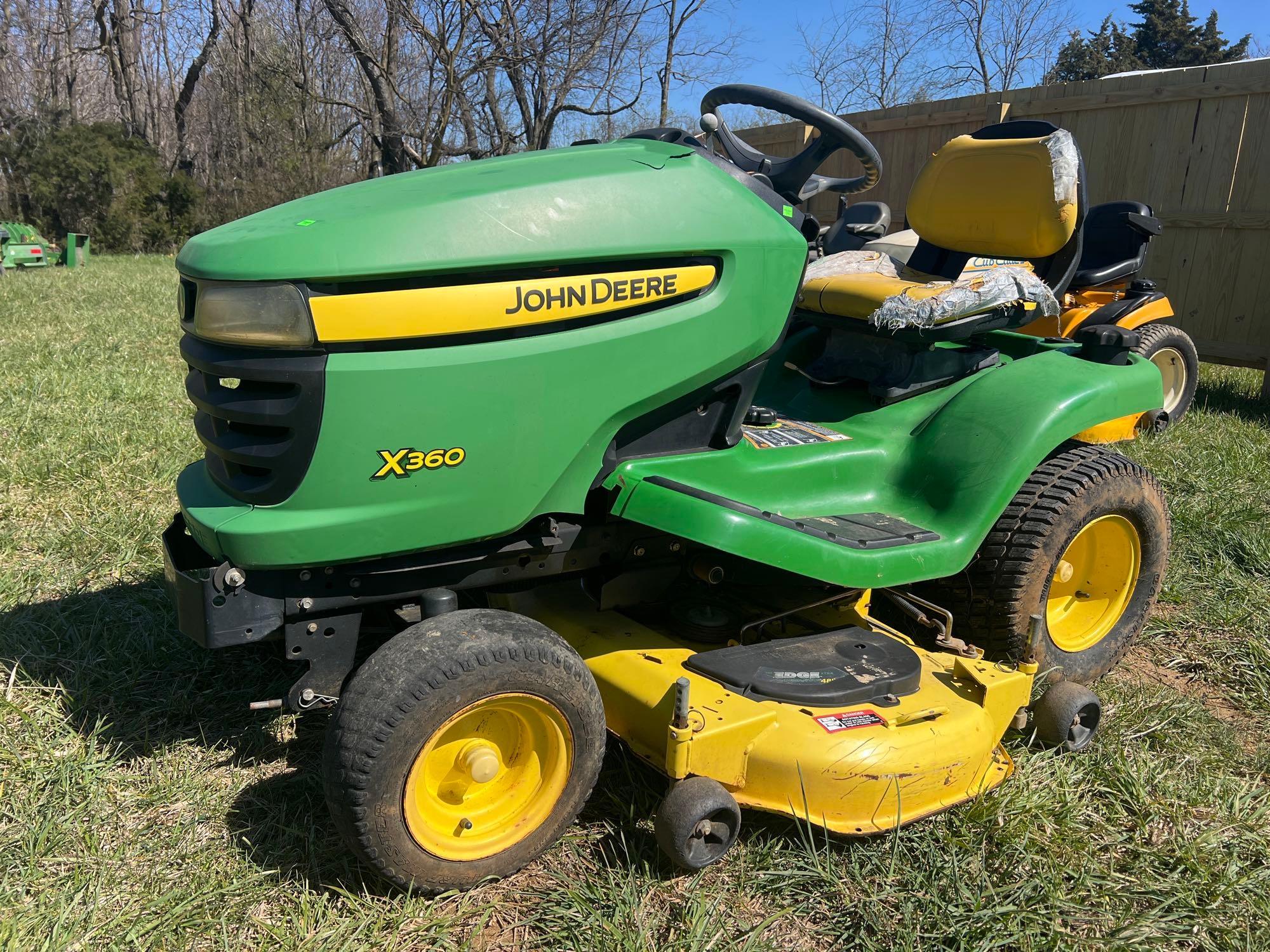

John Deere X360
John Deere X360 — Model year 2008-20102011-2015 · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
258 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Lawn tractorReference
Built in Horicon, Wisconsin, USAReference
Original price was $5,099 in 2010Reference
The John Deere X360 was the premium tractor in the Select X300 series due to its hydraulic power steering and lift.Reference
Two-wheel driveReference
Power steeringReference
Wet disc brakesReference
Open operator station. Optional sunshade and vinyl weather enclosure. Adjustable seat with seven inches of travel. Cupholder and tool tray standard.Reference
Engine
22HP Kawasaki 675cc 2-cyl gasolineReference
Fuel tank13.2 LReference
Kawasaki FH661VReference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement41.2 ciReference
Bore/Stroke75 x 76 mmReference
Power (gross)16.4 kWReference
Fuel systemcarburetorReference
Starter volts12Reference
Sparkplug gap0.762 mmReference
Point gap0.330 mmReference
Intake valve clearance0.102 mmReference
Exhaust valve clearance0.102 mmReference
Oil capacity1.9 LReference
Transmission
hydrostaticReference
TransmissionTuff Torq K58HReference
Typebelt-driven hydrostaticReference
Gearsinfinite forward and reverseReference
Oil capacity2.8 LReference
Oil typeJohn Deere HY-GARD (J20D)Reference
Oil typeJohn Deere HY-GARDReference
Oil change200 hReference
1ThrottleReference
2BrakeReference
3ForwardReference
4ReverseReference
5Cruise controlReference
6Parking brakeReference
PTO & Hydraulics
Mid PTOindependentReference
ClutchelectricReference
Dimensions
Weight258 kgReference
Front tire15x6.50-8Reference
Rear tire22x11.00-10Reference
Weight60 kgReference
Lawn/turf front15x6.50-8Reference
Lawn/turf rear22x11.00-10Reference
Length182 cmReference
Width104 cmReference
Height109 cmReference
Operating weight258 kgReference
John Deere X360 attachments
48" mid-mount mower deckReference
X360 Serial Number Location
Serial number tag on the right side of the X360 frame, above the front axle.Reference
X360 Serial Numbers
2008085001Reference
2009120001Reference
2010150001Reference
2011180001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging amps15Reference
Battery CCA195Reference
Battery volts12Reference
48" Mower deck
Typemid-mount John Deere 48XReference
Type3-blade with hydraulic liftReference
Cutting width121 cmReference
Overall width156 cmReference
Cut height2 to 10 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
