Lawn Tractor · 2010Unverified

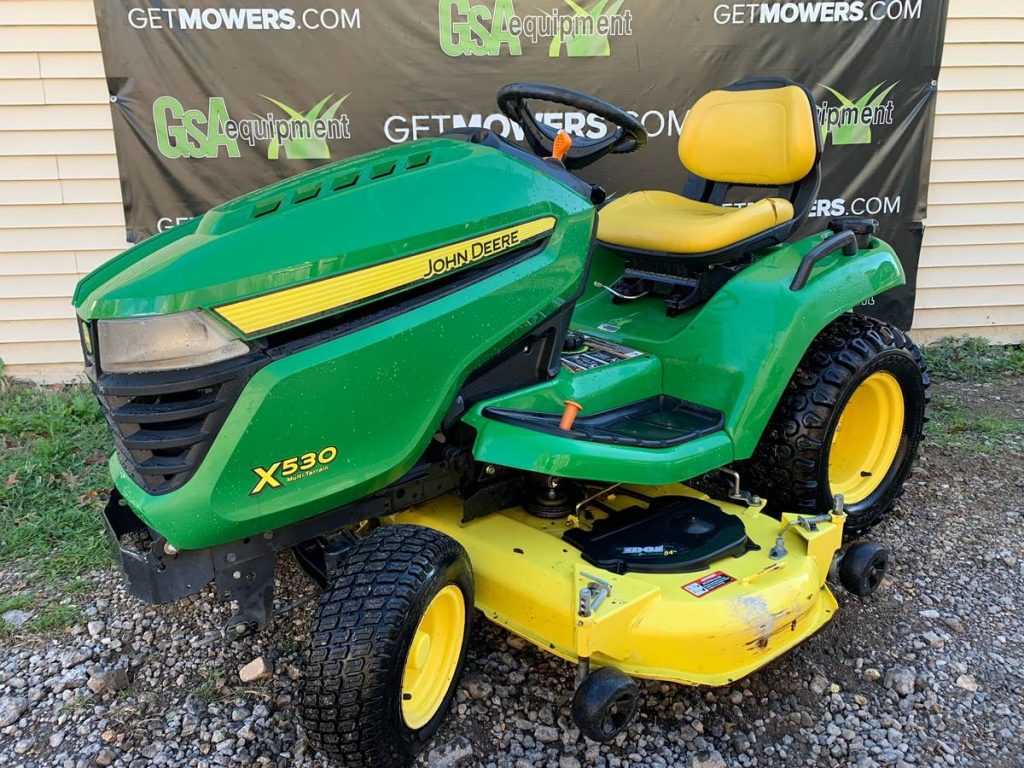

John Deere X530
John Deere X530 — Model year 2010-20112011-2015 · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
385 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Garden tractorReference
Original price was $6,799 in 2009Reference
Two-wheel driveReference
Differential lockfoot-activated standardReference
Steeringhydraulic powerReference
Wet disc brakesReference
Open operator station with 15-inch seat and 7-inch adjustment. Cupholder, toolbox, and 12-volt outlet standard.Reference
Variants
X530two-wheel steerReference
X534four-wheel steerReference
Engine
25HP Kawasaki 675cc 2-cyl gasolineReference
Fuel tank18.9 LReference
Kawasaki FH721VReference
gasolineReference
2-cylinderReference
air-cooledReference
Displacement41.2 ciReference
Bore/Stroke75 x 76 mmReference
Power (gross)18.6 kWReference
Fuel systemcarburetorReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TransmissionTuff Torq K72AReference
Typebelt-driven hydrostaticReference
Gearsinfinite forward and reverseReference
Oil capacity5.3 LReference
Hydrostatic transmission operated with two foot pedals and dash-mounted cruise control.Reference
PTO & Hydraulics
Typesleeve hitchReference
Mid PTOindependentReference
ClutchelectricReference
Dimensions
Wheelbase130 cmReference
Weight385 kgReference
Front tire16x6.5-8Reference
Rear tire24x12-12Reference
Weight69 kgReference
Lawn/turf front16x6.5-8Reference
Lawn/turf rear24x12-12Reference
Length200 cmReference
Width104 cmReference
Height121 cmReference
Weight385 kgReference
John Deere X530 attachments
54" mid-mount mower deckReference
snowblowerReference
bladeReference
X530 Serial Numbers
Location:Front-right of main tractor frame, above front axle.Reference
2010050001Reference
2011060001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging amps15Reference
Battery CCA500Reference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
SnowblowerReference
BladeReference
The John Deere X530 was compatible with a 30-inch mechanical-drive tiller.Reference
54" Mower deck
Typemid-mount John Deere 54XReference
Type3-blade with hydraulic liftReference
Cutting width137 cmReference
BeltM154897 (drive)Reference
BeltM154960 (deck)Reference
Overall width163 cmReference
Cut height2 to 10 cmReference
Cut positions13Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
