Lawn Tractor · 2008Unverified

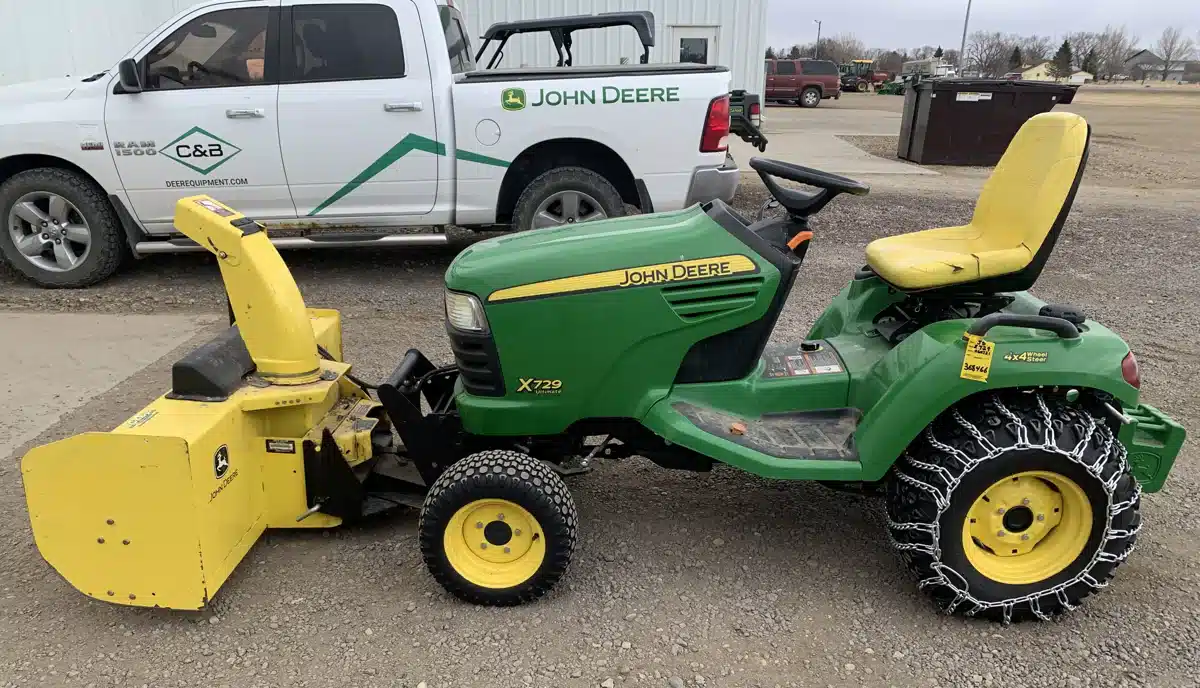

John Deere X729

Name: John Deere X729
Brand: John Deere

John Deere X729 — Select X700 Series · 27 hp. Reference specifications; pending source verification.

The John Deere X729 is a lawn tractor model with a rated output of 27 hp, positioning it among the higher-powered machines in its class. Manufactured from 2008 to 2012, the X729 features a 2-cylinder petrol liquid-cooled engine that powers four-wheel drive through a hydrostatic transmission. Weighing 514 kg, it is designed for tasks requiring up to 200 acres of coverage.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

27 hp

Weight

514 kg

Catalogue coverage

Variants represented

Richest spec table

82 rows

Recorded power

27 hp

Recorded weight

514 kg

Transmissions

hydrostatic

Production years

2008-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Garden tractorReference

Original price was $11,149 in 2011Reference

Four-wheel driveReference

Steeringhydrostatic power, all-wheel steeringReference

Wet disc brakesReference

Open operator station featuring 18-inch seat with 7-inches of adjustment. Cupholder, toolbox, tilt steering, and 12-volt outlet standard. Optional soft-side or hard cab.Reference

Variants

X720two-wheel driveReference

X7242WD, all-wheel steerReference

X728four-wheel driveReference

X7294WD, all-wheel steerReference

Engine

27HP Kawasaki 745cc 2-cyl gasolineReference

Fuel tank24.6 LReference

Fuel tank19.7 LReference

Kawasaki FD750D EFIReference

gasolineReference

2-cylinderReference

liquid-cooled V-twinReference

Displacement45.5 ciReference

Bore/Stroke78 x 78 mmReference

Power (gross)20.1 kWReference

Fuel systemelectronic fuel injectionReference

Air cleanerdual paper elementReference

Compression8.5:1Reference

Idle RPM1600-3550Reference

Starter volts12Reference

Starter power0.8 kWReference

Coolant capacity4.0 LReference

Oil capacity1.8 LReference

Transmission

hydrostaticReference

TransmissionKanzakiReference

Typeshaft-driven hydrostaticReference

Gearsinfinite forward and reverseReference

Oil capacity6.8 LReference

Hydrostatic transmission with Twin Touch foot pedals and dashboard-mounted cruise control standard.Reference

1ThrottleReference

2BrakeReference

3ForwardReference

4ReverseReference

5Parking brakeReference

6Cruise controlReference

7Differential lockReference

PTO & Hydraulics

Pressure63.7 barReference

Valves2Reference

Total flow17.0 lpmReference

Rear Type0Reference

Rear Type1-LimitedReference

Rear PTOindependentReference

Rear PTO Type540Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Front PTOoptionalReference

Front PTO Type2000Reference

Dimensions

Wheelbase142 cmReference

Weight514 kgReference

Front tire18x8.50-10Reference

Rear tire26x12.00-12Reference

Lawn/turf front18x8.50-10Reference

Lawn/turf rear26x12.00-12Reference

Length200 cmReference

Width122 cmReference

Height130 cmReference

John Deere X729 attachments

48" mid-mount mower deckReference

54" mid-mount mower deckReference

62" mid-mount mower deckReference

X729 Serial Number Location

Serial number on the center-right of main tractor frame, just behind hydraulic couplers.Reference

X729 Serial Numbers

2008030001Reference

2009040001Reference

2010050001Reference

2011060001Reference

2012070001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps20Reference

Charging amps40Reference

Battery CCA340Reference

Battery volts12Reference

Attachment overview

48" mid-mount mower deckReference

54" mid-mount mower deckReference

62" mid-mount mower deckReference

Speeds

26-inch tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
