Lawn Tractor · 2008Unverified

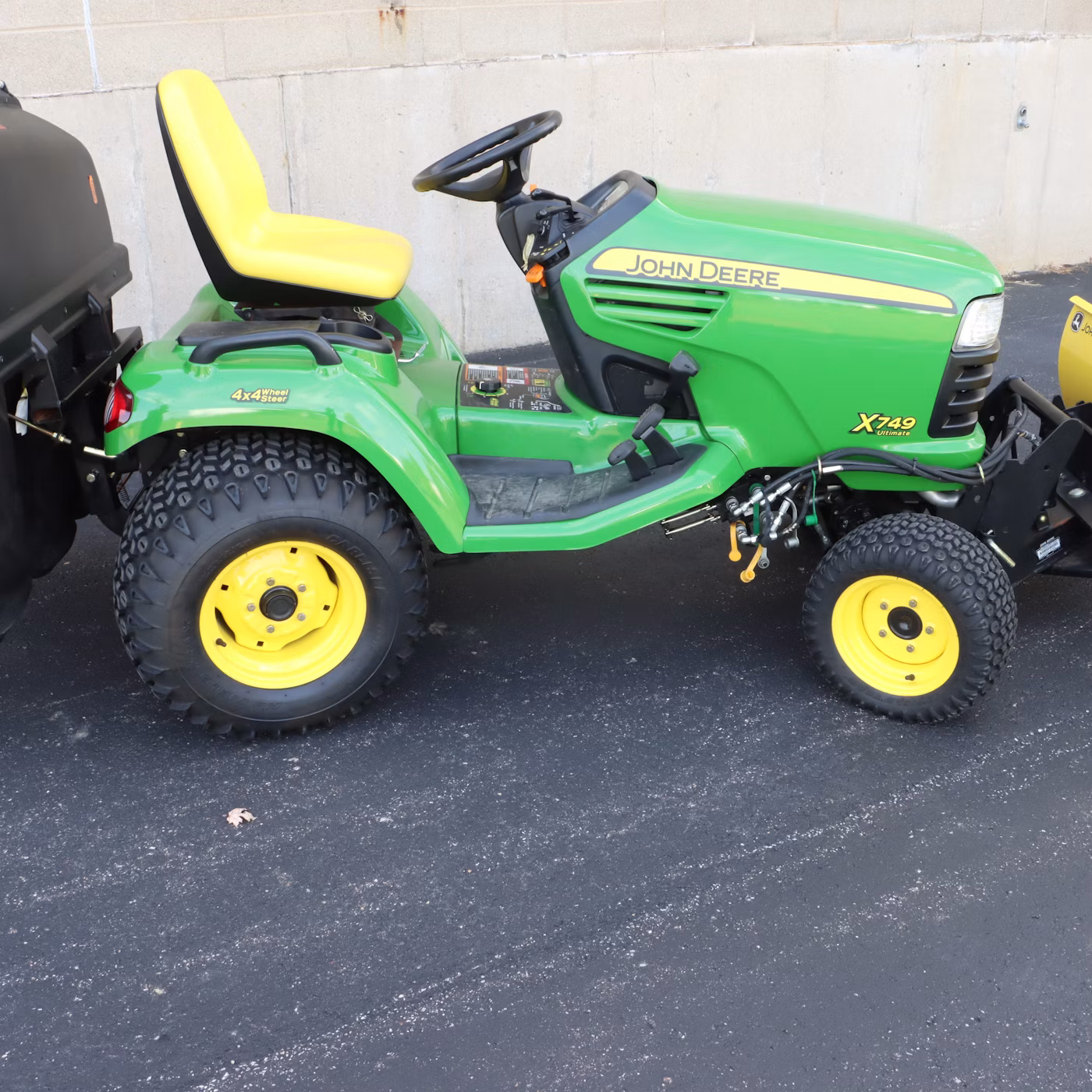

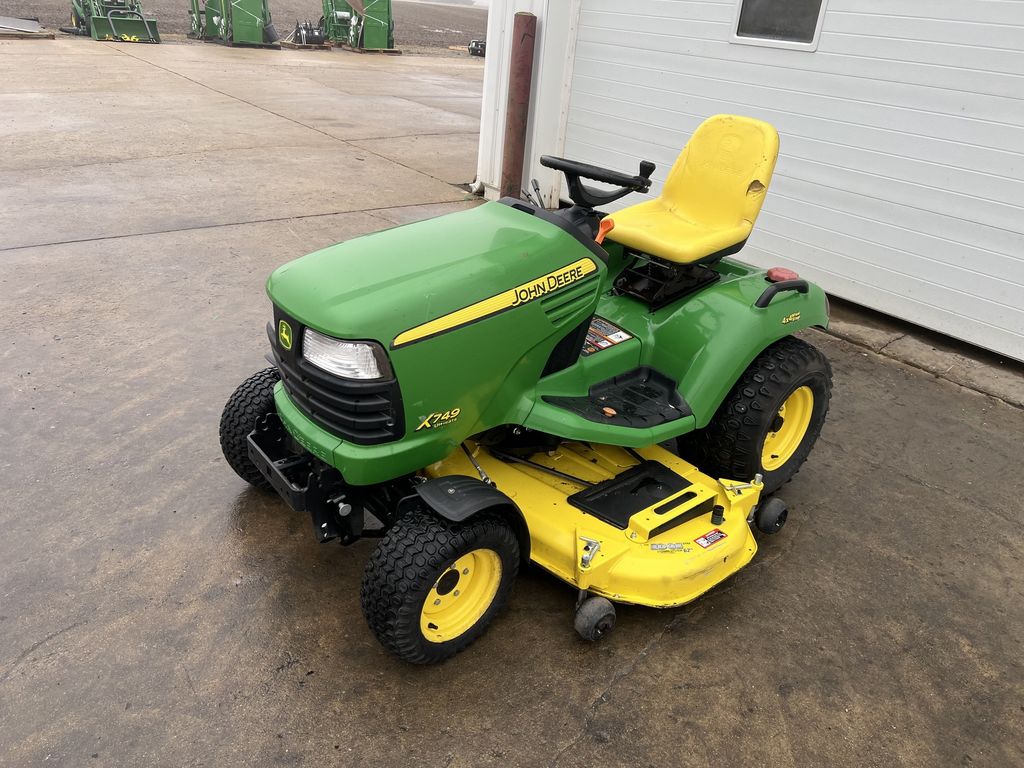

John Deere X749

Name: John Deere X749
Brand: John Deere

John Deere X749 — Select X700 Series · 24 hp. Reference specifications; pending source verification.

The John Deere X749 is a lawn tractor model with a 24 hp rating, positioning it among higher-powered machines in its class. Manufactured from 2008 to 2012, it features a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system with a hydrostatic transmission. The machine has a listed weight of 546 kg and is designed for use on areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

24 hp

Weight

546 kg

Catalogue coverage

Variants represented

Richest spec table

82 rows

Recorded power

24 hp

Recorded weight

546 kg

Transmissions

hydrostatic

Production years

2008-2012

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Garden tractorReference

Original price was $12,229 in 2011Reference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Open operator station featuring 18-inch seat with 7-inches of adjustment. Cupholder, toolbox, tilt steering, and 12-volt outlet standard. Optional soft-side or hard cab.Reference

Variants

X740two-wheel driveReference

X7442WD, all-wheel steerReference

X748four-wheel driveReference

X7494WD, all-wheel steerReference

Engine

24HP Yanmar 1116cc 3-cyl dieselReference

24HP Yanmar 904cc 3-cyl dieselReference

Fuel tank24.6 LReference

Yanmar 3TNV76Reference

dieselReference

3-cylinderReference

liquid-cooled OHVReference

Original engine. The 3TNV76 was used from 2006 through the 2010 model year.Reference

Displacement68.1 ciReference

Bore/Stroke76 x 76 mmReference

Power (gross)17.9 kWReference

Fuel systemindirect injectionReference

Air cleanerdual paper elementsReference

Compression23.4:1Reference

Idle RPM1450-3600Reference

Starter volts12Reference

Starter power1.2 kWReference

Oil capacity2.6 LReference

Coolant capacity2.8 LReference

Yanmar 3TNM72Reference

In 2011, (tractor serial number 060001) the 3TNM72 replaced the original engine.Reference

Displacement55.2 ciReference

Air cleanerpaper elementReference

Pre-heatingglow plugsReference

Pre-heatingblock heaterReference

Pre-heatingcoolant heaterReference

Oil capacity3.2 LReference

Transmission

hydrostaticReference

TransmissionTuff Torq K92Reference

Typeshaft-driven hydrostaticReference

Gearsinfinite forward and reverseReference

Oil capacity6.8 LReference

Hydrostatic transmission with Twin Touch foot pedals and dashboard-mounted cruise control standard.Reference

PTO & Hydraulics

Pressure63.7 barReference

Valves2Reference

Total flow17.0 lpmReference

Rear Type0Reference

Rear Type1-LimitedReference

Rear PTOindependentReference

Rear PTO Type540Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Front PTOoptionalReference

Front PTO Type2000Reference

Dimensions

Wheelbase142 cmReference

Weight546 kgReference

Front tire18x8.50-10Reference

Rear tire26x12.00-12Reference

Lawn/turf front18x8.50-10Reference

Lawn/turf rear26x12.00-12Reference

Length200 cmReference

Width122 cmReference

Height127 cmReference

John Deere X749 attachments

48" mid-mount mower deckReference

54" mid-mount mower deckReference

62" mid-mount mower deckReference

X749 Serial Number Location

Serial number on the center-right of main tractor frame, just behind hydraulic couplers.Reference

X749 Serial Numbers

2008030001Reference

2009040001Reference

2010050001Reference

2011060001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Battery CCA500Reference

Battery volts12Reference

Attachment overview

48" mid-mount mower deckReference

54" mid-mount mower deckReference

62" mid-mount mower deckReference

Speeds

Speeds with 26-inch rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
