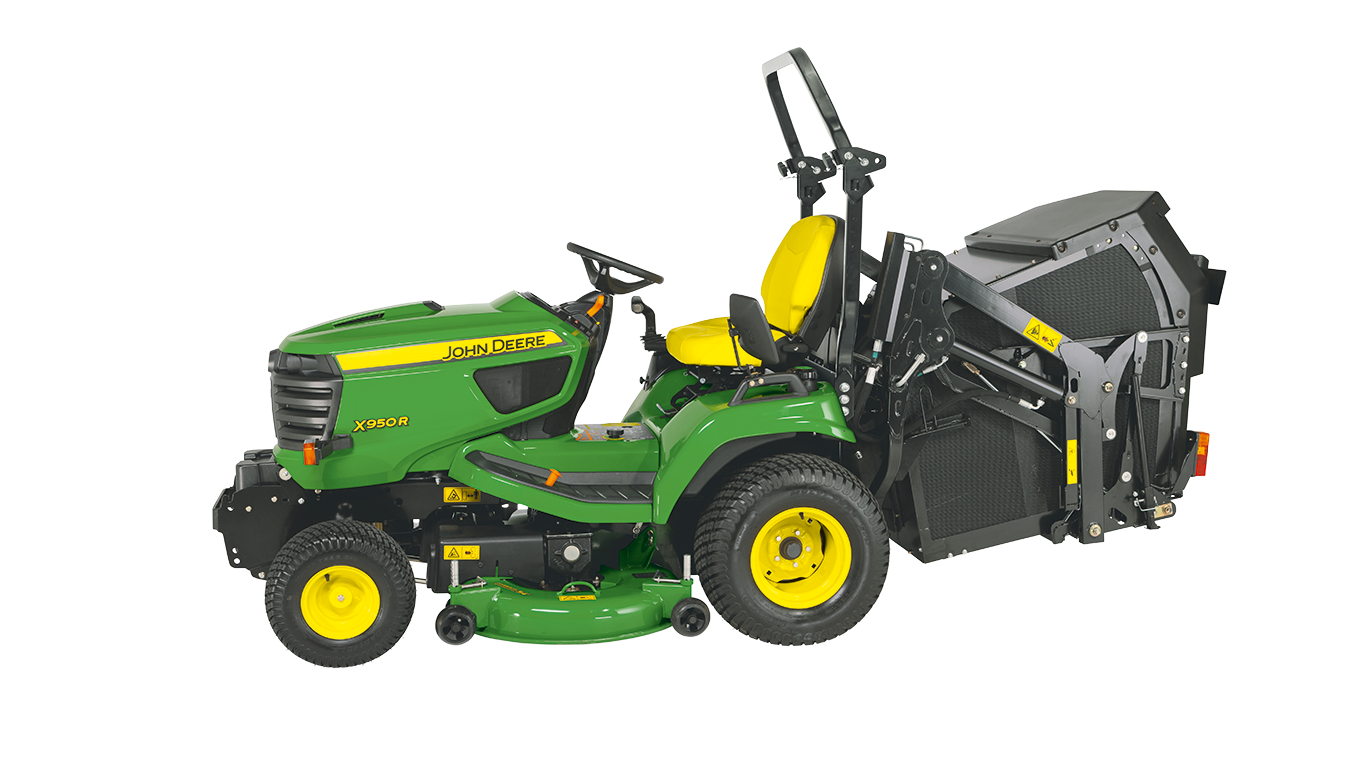

John Deere X950R
John Deere X950R — X900 Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1336 to 2293 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Rear-discharge mowerReference
Built in Horicon, Wisconsin, USAReference
Two-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional.Reference
Engine
17.9KW Yanmar 1116cc 3-cyl dieselReference
Fuel tank19.7 LReference
Yanmar 3TNV76Reference
dieselReference
3-cylinderReference
lqiuid-cooled horizontal-shaft inlineReference
Displacement68.1 ciReference
Bore/Stroke76 x 76 mmReference
Rated Power (gross)17.9 kWReference
Maximum Power (gross)18.3 kWReference
Fuel systemindirect injectionReference
Air cleanerdual dry elementReference
Rated RPM3100Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.2 LReference
Coolant capacity2.8 LReference
Transmission
hydrostaticReference
Typeshaft-driven hydrostaticReference
Gearsinfinite forward and reverseReference
Oil capacity11.4 LReference
Oil change400 hReference
PTO & Hydraulics
Pump flow18.2 lpmReference
Mid PTOindependentReference
ClutchelectricReference
Dimensions
Wheelbase147 cmReference
Weight1336 to 2293 poundsReference
Front tire18x8.5-8Reference
Rear tire26x12-12Reference
Lawn/turf front18x8.5-8Reference
Lawn/turf rear26x12-12Reference
Length345 cmReference
Width118 cmReference
Height (ROPS)207 cmReference
Height (cab)193 cmReference
Ground clearance36 cmReference
821 kgReference
1013 kgReference
Shipping606 kgReference
Operating1040 kgReference
John Deere X950R attachments
121 cm mid-mount mower deckReference
137 cm mid-mount mower deckReference
snowblowerReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA500Reference
Battery volts12Reference
Attachment overview
121 cm mid-mount mower deckReference
137 cm mid-mount mower deckReference
SnowblowerReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
