Lawn Tractor · 2013Unverified

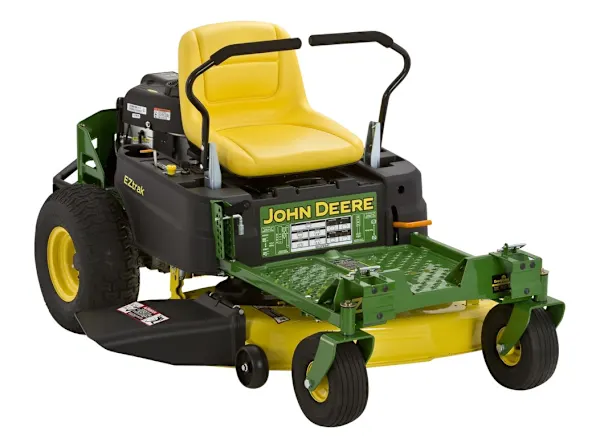

John Deere Z235
John Deere Z235 — EZTrak Z200 Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
247 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Zero-turn mowerReference
FactoriesHoricon, Wisconsin, USAReference
FactoriesGreeneville, Tennessee, USAReference
Original price was $2,500 in 2013Reference
Two-wheel driveReference
Power steeringReference
Open operator station.Reference
Engine
20HP Briggs & Stratton 655cc 2-cyl gasolineReference
Fuel tank7.9 LReference
Briggs & Stratton 40N877Reference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement40 ciReference
Bore/Stroke75 x 73 mmReference
Power14.9 kWReference
Fuel systemcarburetorReference
StarterelectricReference
Starter volts12Reference
Oil capacity1.7 LReference
Image courtesy of Derek WoodwardReference
Transmission
hydrostaticReference
TransmissionHydro-Gear EZTReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Mid PTOindependentReference
ClutchelectricReference
Dimensions
Wheelbase118 cmReference
Weight247 kgReference
Front tire11x4.00-4Reference
Rear tire18x8.50-8Reference
Lawn/turf front11x4.00-4Reference
Lawn/turf rear18x8.50-8Reference
Length182 cmReference
Height92 cmReference
John Deere Z235 attachments
42" mid-mount mower deckReference
Z235 Serial Number Location
Serial number decal on the right rear of the mower, on the engine mounting deck.Reference
Electrical
GroundnegativeReference
Battery CCA340Reference
Battery volts12Reference
42" Mower deck
Typemid-mount John DeereReference
Type2-blade with manual liftReference
Cutting width106 cmReference
Cut height2 to 10 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
