Lawn Tractor · 2008Unverified

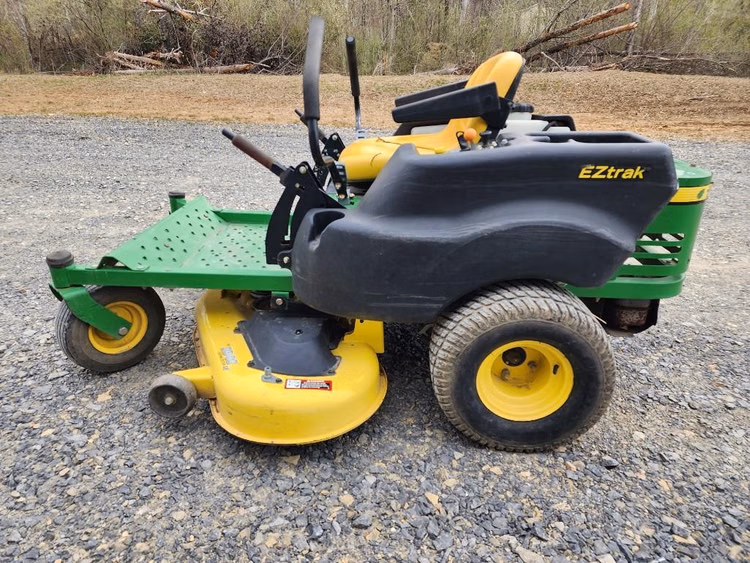

John Deere Z245
John Deere Z245 — EZTrak Z200 Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
267 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Zero-turn mowerReference
Built in Horicon, Wisconsin, USAReference
Original price was $3,599 in 2012Reference
Two-wheel driveReference
Power steeringReference
Open operator station.Reference
Engine
23HP Briggs & Stratton 724cc 2-cyl gasolineReference
Fuel tank13.2 LReference
Briggs & StrattonReference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement44.2 ciReference
Bore/Stroke79 x 73 mmReference
Power17.2 kWReference
StarterelectricReference
Starter volts12Reference
Oil capacity1.7 LReference
Transmission
hydrostaticReference
TransmissionHydro-Gear EZTReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Mid PTOindependentReference
ClutchelectricReference
Dimensions
Wheelbase119 cmReference
Weight267 kgReference
Front tire13x5.0-6Reference
Rear tire18x9.50-8Reference
Lawn/turf front13x5.0-6Reference
Lawn/turf rear18x9.50-8Reference
Length187 cmReference
Height98 cmReference
John Deere Z245 attachments
48" mid-mount mower deckReference
Electrical
GroundnegativeReference
Battery CCA235Reference
Battery volts12Reference
48" Mower deck
Typemid-mount John DeereReference
Type3-blade with manual liftReference
Cutting width121 cmReference
Overall width154 cmReference
Cut height2 to 10 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
