Lawn Tractor · 2013Unverified

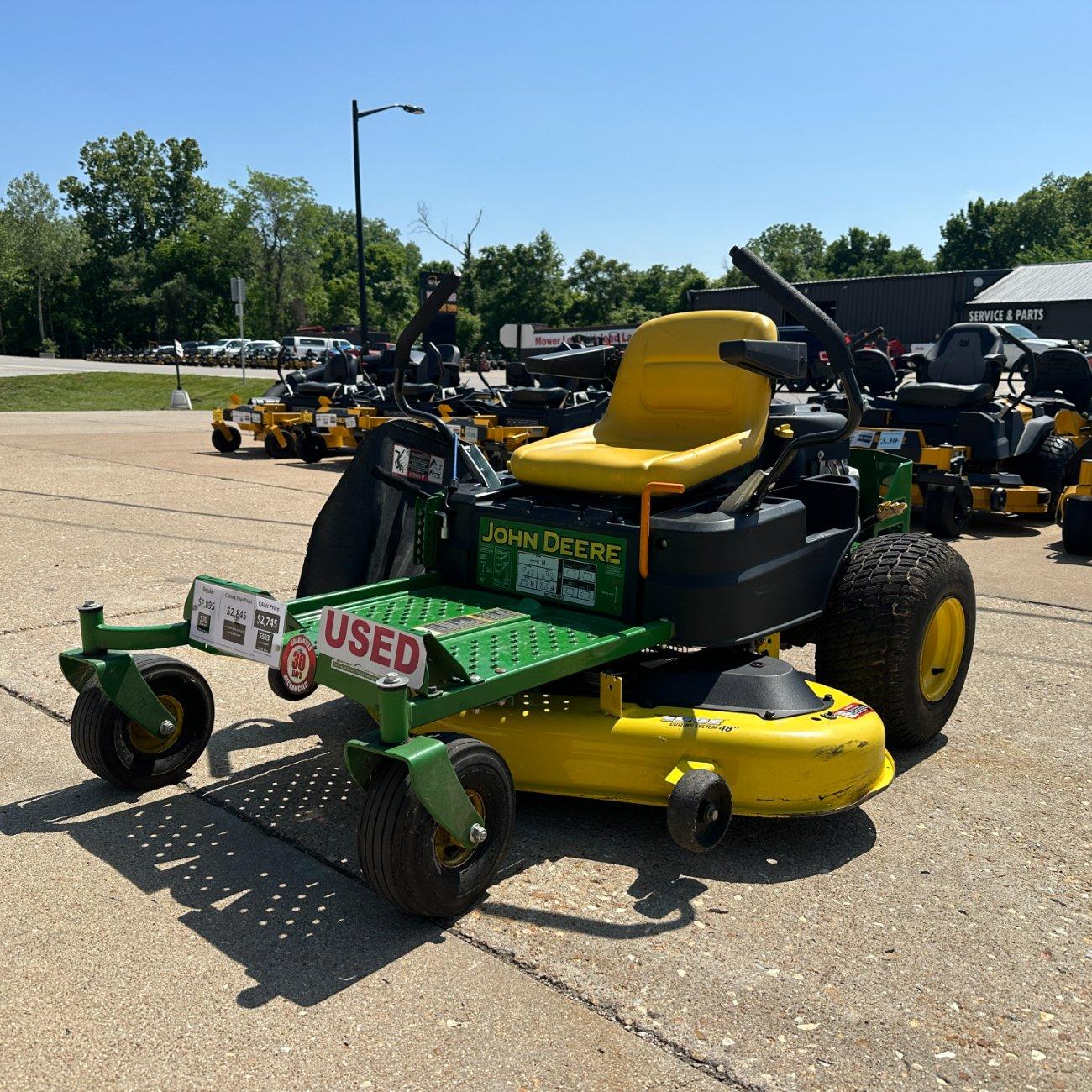

John Deere Z255
John Deere Z255 — EZTrak Z200 Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
267 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Zero-turn mowerReference
FactoriesHoricon, Wisconsin, USAReference
FactoriesGreeneville, Tennessee, USAReference
Original price was $3,000 in 2014Reference
Two-wheel driveReference
Power steeringReference
Open operator station.Reference
Engine
22HP Briggs & Stratton 655cc 2-cyl gasolineReference
Briggs & Stratton 724cc 2-cyl gasolineReference
Fuel tank7.9 LReference
Briggs & StrattonReference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
The 656cc engine was used on the Z255 for the 2013 model year.Reference
Displacement40 ciReference
Bore/Stroke75 x 73 mmReference
Power16.4 kWReference
Fuel systemcarburetorReference
StarterelectricReference
Starter volts12Reference
Oil capacity1.7 LReference
The 724cc engine was used on the Z255 for the 2014 and 2015 model years, mower serial number 15001 and up.Reference
Displacement44.2 ciReference
Bore/Stroke79 x 73 mmReference
Transmission
hydrostaticReference
TransmissionHydro-Gear EZTReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Mid PTOindependentReference
ClutchelectricReference
Dimensions
Wheelbase118 cmReference
Weight267 kgReference
Front tire11x4.00-4Reference
Rear tire18x8.50-8Reference
Lawn/turf front11x4.00-4Reference
Lawn/turf rear18x8.50-8Reference
Length182 cmReference
Height92 cmReference
John Deere Z255 attachments
48" mid-mount mower deckReference
Z255 Serial Numbers
2013130001Reference
2014150001Reference
2015170001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery CCA340Reference
Battery volts12Reference
48" Mower deck
Typemid-mount John DeereReference
Type3-blade with manual liftReference
Cutting width121 cmReference
Cut height2 to 10 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
