Lawn Tractor · 2008Unverified

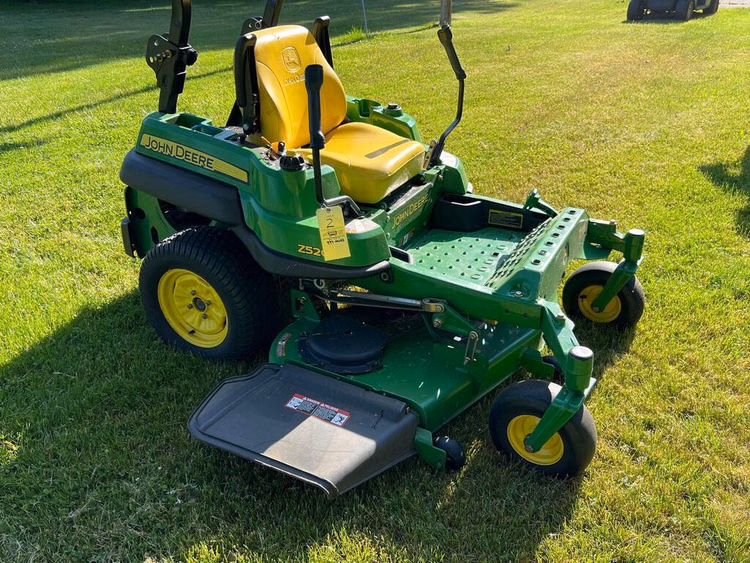

John Deere Z520A
John Deere Z520A — Estate Z500 Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1099 to 1125 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Zero-turn mowerReference
Built in Fuquay-Varina, North Carolina, USAReference
Original price$7,319 (2009 54 )Reference
Original price$7,569 (2009 60 )Reference
Two-wheel driveReference
Power steeringReference
Two-post folding ROPS.Reference
Engine
25HP Kohler 724cc 2-cyl gasolineReference
Fuel tank26.5 LReference
KohlerReference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement44.2 ciReference
Bore/Stroke83 x 67 mmReference
Power18.6 kWReference
StarterelectricReference
Starter volts12Reference
Oil capacity1.9 LReference
Transmission
hydrostaticReference
TransmissionParker HannifinReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Mid PTOindependentReference
ClutchelectricReference
Dimensions
Wheelbase134 cmReference
Weight1099 to 1125 poundsReference
Front tire13x5.0-6Reference
Rear tire22x9.5-12Reference
Lawn/turf front13x5.0-6Reference
Lawn/turf rear22x9.5-12Reference
Length208 cmReference
Height (ROPS)184 cmReference
Weight498 kgReference
Weight510 kgReference
John Deere Z520A attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
Electrical
GroundnegativeReference
Battery CCA160Reference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
