Lawn Tractor · 2013Unverified

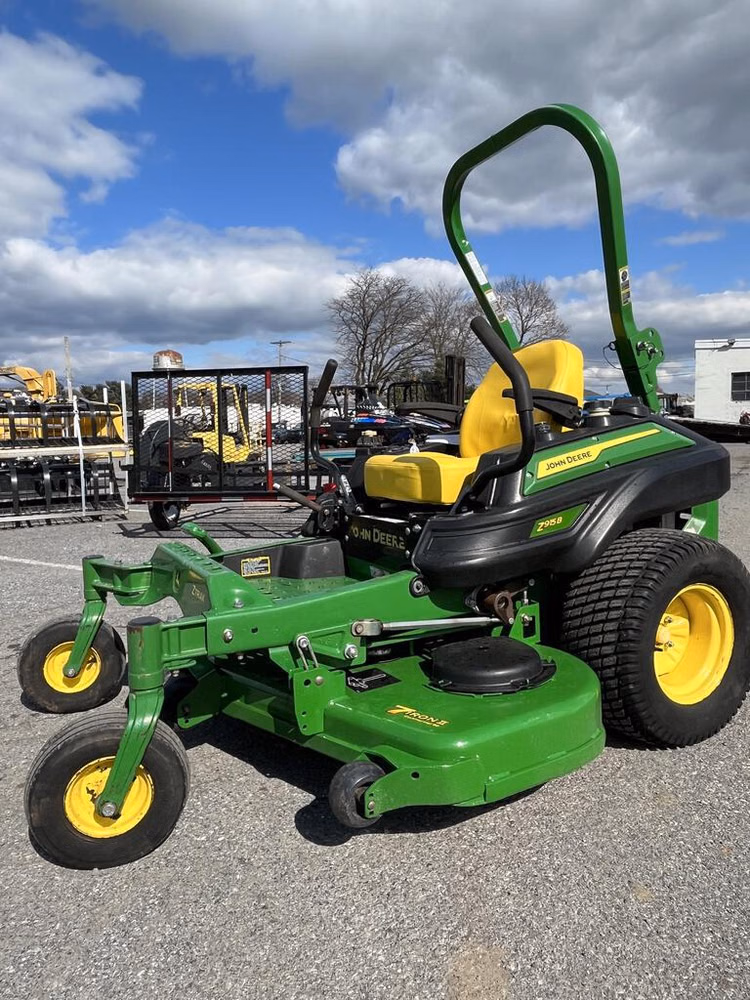

John Deere Z915B
John Deere Z915B — Z900 Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
534 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Zero-turn mowerReference
Built in Fuquay-Varina, North Carolina, USAReference
Two-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
25HP Kohler 747cc 2-cyl gasolineReference
Fuel tank43.5 LReference
Kohler CV742Reference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement45.6 ciReference
Bore/Stroke83 x 69 mmReference
Power (gross)18.6 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TransmissionTuff TorqReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Oil capacity5.6 LReference
PTO & Hydraulics
Mid PTOindependentReference
Clutchelectro-magneticReference
Dimensions
Weight534 kgReference
Front tire13x5-6Reference
Rear tire24x9.5-12Reference
Lawn/turf front13x5-6Reference
Lawn/turf rear24x9.5-12Reference
Lawn/turf rear24x12-12Reference
Length213 cmReference
Height (ROPS)185 cmReference
Height (Folded ROPS)119 cmReference
John Deere Z915B attachments
48" mid-mount mower deckReference
54" mid-mount mower deckReference
60" mid-mount mower deckReference
Electrical
GroundnegativeReference
Charging amps15Reference
Battery volts12Reference
Attachment overview
48" mid-mount mower deckReference
54" mid-mount mower deckReference
60" mid-mount mower deckReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
