Lawn Tractor · 2013Unverified

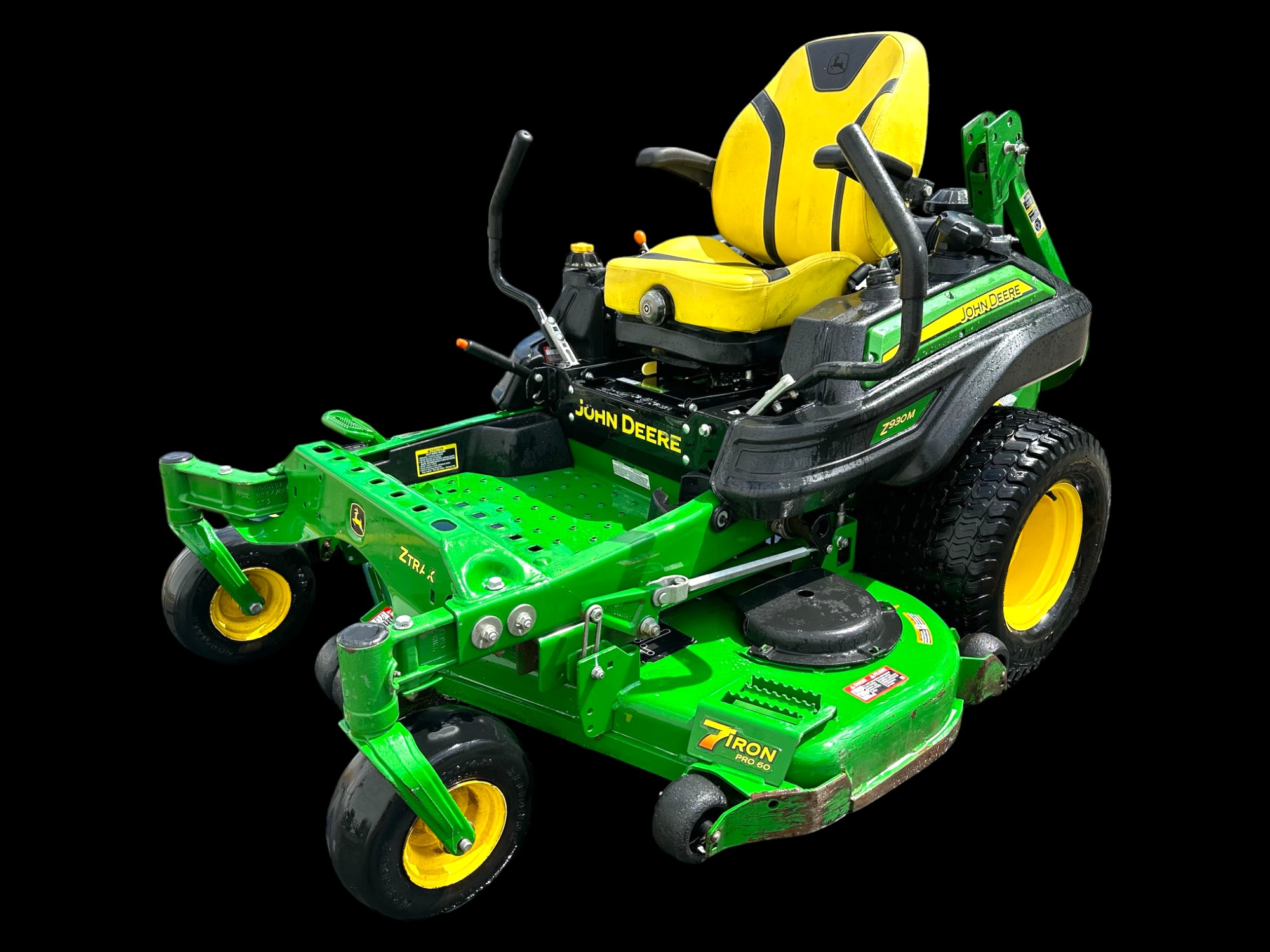

John Deere Z930M
John Deere Z930M — Z900 Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
619 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Zero-turn mowerReference
Built in Fuquay-Varina, North Carolina, USAReference
Original price was $11,689 in 2021Reference
Two-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
25.5HP Kawasaki 852cc 2-cyl gasolineReference
Fuel tank43.5 LReference
Kawasaki F801VReference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement52 ciReference
Bore/Stroke85 x 76 mmReference
Power (gross)19.0 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TransmissionTuff TorqReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Oil capacity5.6 LReference
PTO & Hydraulics
Mid PTOindependentReference
Clutchelectro-magneticReference
Dimensions
Weight619 kgReference
Front tire13x5-6Reference
Rear tire24x12-12Reference
Lawn/turf front13x5-6Reference
Lawn/turf rear24x12-12Reference
Length213 cmReference
Height (ROPS)185 cmReference
Height (Folded ROPS)119 cmReference
John Deere Z930M attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
Electrical
GroundnegativeReference
Charging amps20Reference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
