Lawn Tractor · 2013Unverified

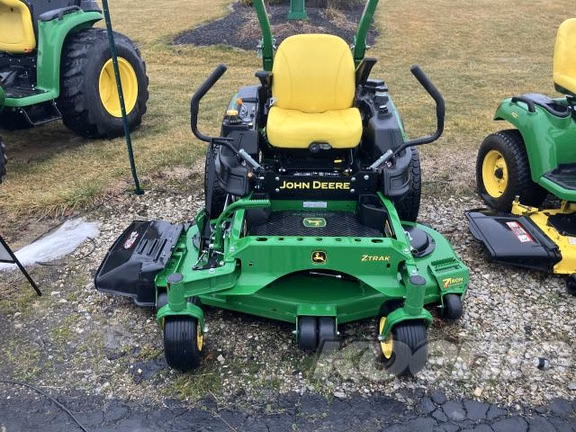

John Deere Z930M EFI
John Deere Z930M EFI — Z900 Series · 27 hp. Reference specifications; pending source verification.
The John Deere Z930M EFI is a lawn tractor with a rated power of 27 hp, placing it at the upper end of its class in terms of power output. This model was manufactured from 2013 to 2017 and features a 2-cylinder petrol air-cooled engine, paired with two-wheel drive and a hydrostatic transmission. The tractor's operating weight is listed at 619 kg, and it is suitable for use on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
619 kg
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
27 hp
Recorded weight
619 kg
Transmissions
hydrostatic
Production years
2013-2017
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Zero-turn mowerReference
Built in Fuquay-Varina, North Carolina, USAReference
Two-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
26.5HP Kohler 747cc 2-cyl gasolineReference
Fuel tank43.5 LReference
Kohler ECV749Reference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement45.6 ciReference
Bore/Stroke83 x 69 mmReference
Power (gross)19.8 kWReference
Fuel systemelectronic fuel injectionReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TransmissionTuff TorqReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Oil capacity5.6 LReference
PTO & Hydraulics
Mid PTOindependentReference
Clutchelectro-magneticReference
Dimensions
Weight619 kgReference
Front tire13x5-6Reference
Rear tire24x12-12Reference
Lawn/turf front13x5-6Reference
Lawn/turf rear24x12-12Reference
Length213 cmReference
Height (ROPS)185 cmReference
Height (Folded ROPS)119 cmReference
John Deere Z930M EFI attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
Electrical
GroundnegativeReference
Charging amps20Reference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
