Lawn Tractor · 2013Unverified

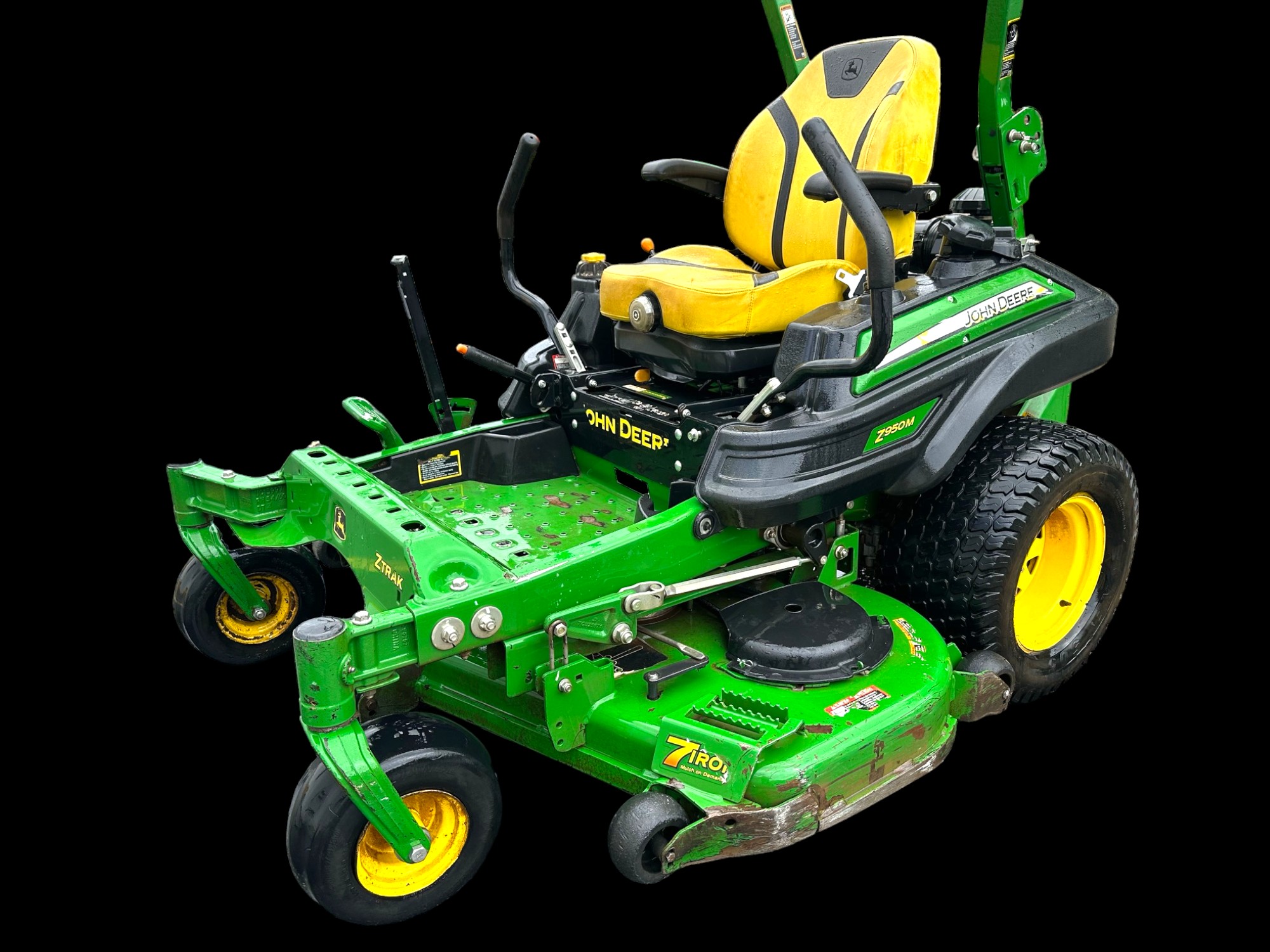

John Deere Z950M
John Deere Z950M — Z900 Series · 27 hp. Reference specifications; pending source verification.
The John Deere Z950M is a lawn tractor with a rated output of 27 hp, positioning it within the higher-powered machines in its class. Manufactured in 2013, it features a 2-cylinder petrol air-cooled engine, which powers two-wheel drive through a hydrostatic transmission. The listed weight of the machine is 619 kg, and it is designed for use on areas of approximately up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
619 kg
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
27 hp
Recorded weight
619 kg
Transmissions
hydrostatic
Production years
2013-2013
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Zero-turn mowerReference
Built in Fuquay-Varina, North Carolina, USAReference
Original price was $12,129 in 2021Reference
Two-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
27HP Kawasaki 852cc 2-cyl gasolineReference
Fuel tank43.5 LReference
Kawasaki FX850VReference
gasolineReference
2-cylinderReference
air-cooled vertical-shaft V-TwinReference
Displacement52 ciReference
Bore/Stroke85 x 76 mmReference
Power (gross)20.1 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TransmissionTuff TorqReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
Oil capacity5.6 LReference
PTO & Hydraulics
Mid PTOindependentReference
Clutchelectro-magneticReference
Dimensions
Weight619 kgReference
Front tire13x5-6Reference
Rear tire24x12-12Reference
Lawn/turf front13x5-6Reference
Lawn/turf rear24x12-12Reference
Length213 cmReference
Height (ROPS)185 cmReference
Height (Folded ROPS)119 cmReference
John Deere Z950M attachments
60" mid-mount mower deckReference
72" mid-mount mower deckReference
Electrical
GroundnegativeReference
Charging amps20Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
72" mid-mount mower deckReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
