Tractor · 1935Unverified

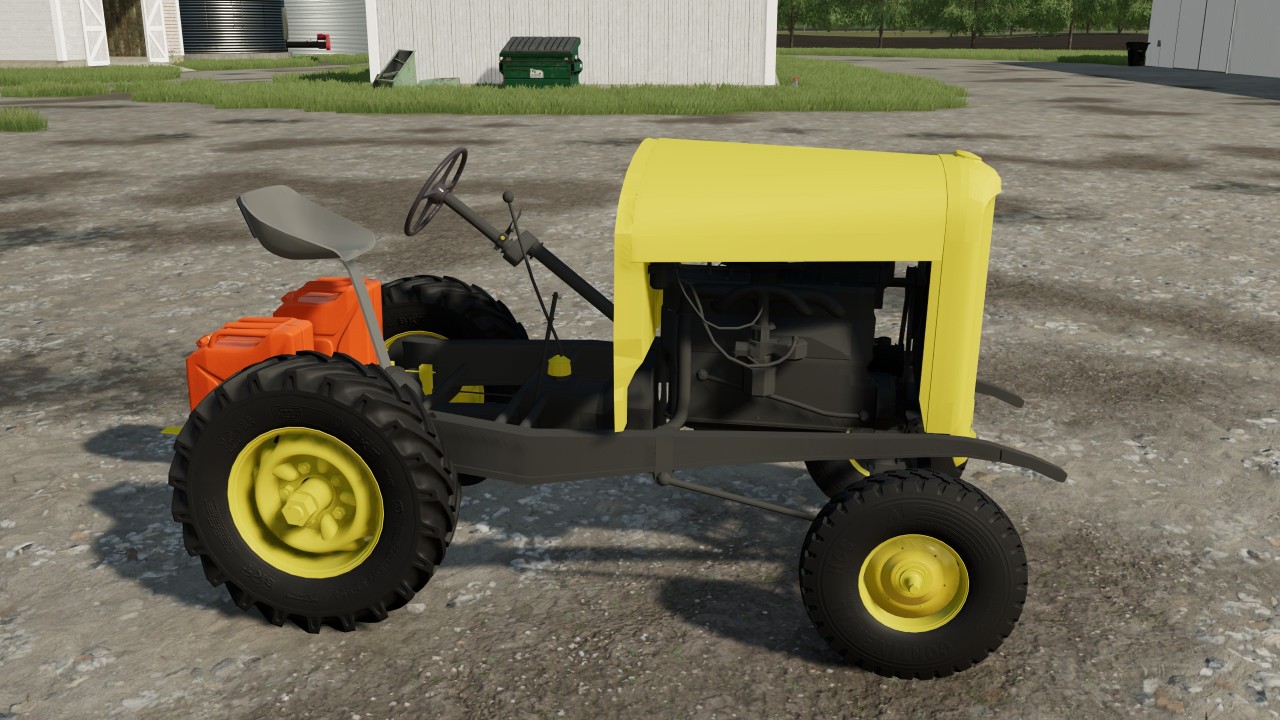

Johnson Manufacturing New Deal
Johnson Manufacturing New Deal · 20 hp. Reference specifications; pending source verification.
The Johnson Manufacturing New Deal is a tractor with a rated power of 20 hp, situated at the lighter end of its class. It was produced from 1935 to 1941. The tractor features a 4-cylinder petrol liquid-cooled engine and two-wheel drive with a 3-speed gearbox. Its operating weight is listed at 657 kg, with a suitable operating area of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
657 kg
Catalogue coverage
Variants represented
2
Richest spec table
26 rows
Recorded power
20 hp
Recorded weight
657 kg
Transmissions
3-speed
Production years
1935-1941
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerJohnson ManufacturingReference
Built in Wyoming, Minnesota, USAReference
Original price$265 (1935)Reference
Two-wheel driveReference
Open operator station.Reference
Engine
Ford 2.9L 4-cyl gasolineReference
Engine14.9 kWReference
Plows1 (16-inch)Reference
FordReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke95 x 102 mmReference
Power14.9 kWReference
Transmission
3-speedReference
Gears3 forward and 1 reverseReference
Dimensions
Weight657 kgReference
Front tire33x7.5Reference
Rear tire20x4Reference
Ag front33x7.5Reference
Ag rear20x4Reference
Length220 cmReference
Width132 cmReference
Height160 cmReference
Links
New Deal Tractor: information on the New Deal tractor and Johnson ManufacturingReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
