Tractor · 1928Unverified

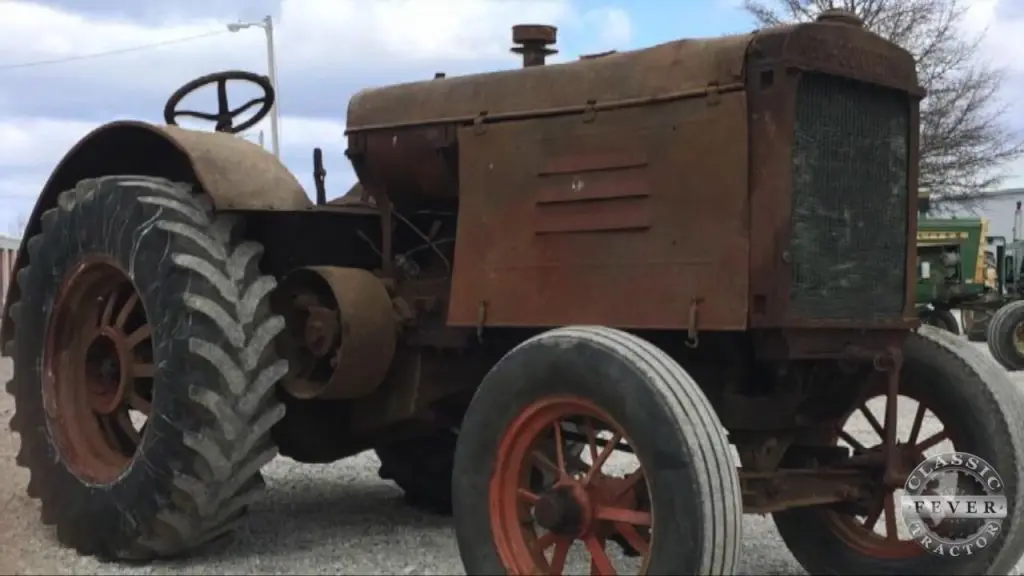

Keck-Gonnerman 18-35 ZW
Keck-Gonnerman 18-35 ZW — Model year 1928-19301931-19351936-1937 · 18 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
18 hp
Weight
2381 kg
Hover a source tag to verify
Overview
ManufacturerKeck-GonnermanReference
Standard-tread tractorReference
Built in Mount Vernon, Indiana, USAReference
Two-wheel driveReference
Final drivesspur gearReference
Manual steeringReference
Open operator station.Reference
Engine
Buda 6.3L 4-cyl keroseneReference
Drawbar (claimed)13.4 kWReference
Belt (claimed)26.1 kWReference
Plows3 or 4Reference
BudaReference
keroseneReference
4-cylinderReference
liquid-cooledReference
Displacement6.3 LReference
Bore/Stroke114 x 152 mmReference
Starter typehand-crankReference
Starter typeelectricReference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Dimensions
Weight2381 kgReference
Rear tire50x12Reference
Ag rear50x12 (steel)Reference
Length335 cmReference
Width177 cmReference
Height170 cmReference
Capacities
Diameter41 cmReference
Width21 cmReference
RPM585Reference
Speed792.48 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
