Tractor · 1928Unverified

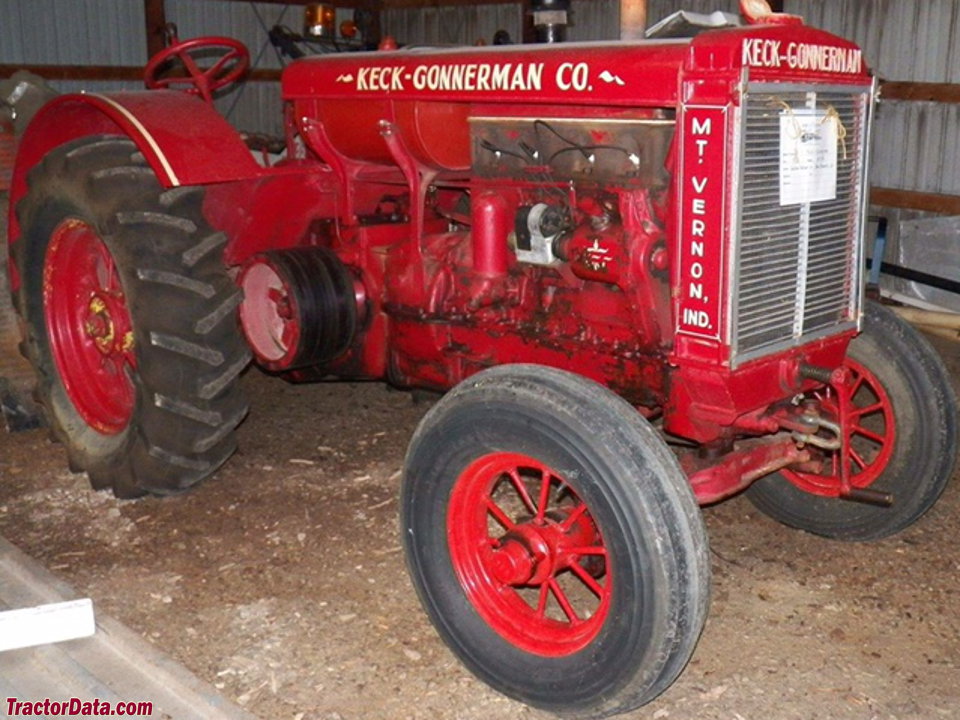

Keck-Gonnerman 30-60 N
Keck-Gonnerman 30-60 N — Standard-tread tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
4762 kg
Hover a source tag to verify
Overview
ManufacturerKeck-GonnermanReference
Standard-tread tractorReference
Built in Mount Vernon, Indiana, USAReference
Two-wheel driveReference
Final drivesspur gearReference
Manual steeringReference
Open operator station.Reference
Engine
LeRoi 10.9L 4-cyl keroseneReference
Drawbar (claimed)22.4 kWReference
Belt (claimed)44.7 kWReference
Plows4 to 6Reference
LeRoiReference
keroseneReference
4-cylinderReference
liquid-cooledReference
Displacement10.9 LReference
Bore/Stroke140 x 178 mmReference
Starter typehand-crankReference
Starter typeelectricReference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Dimensions
Weight4762 kgReference
Rear tire56x14Reference
Ag rear56x14 (steel)Reference
Length411 cmReference
Width228 cmReference
Height175 cmReference
Capacities
Diameter39 cmReference
Width24 cmReference
RPM666Reference
Speed815.95 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
