Tractor · 2003Unverified

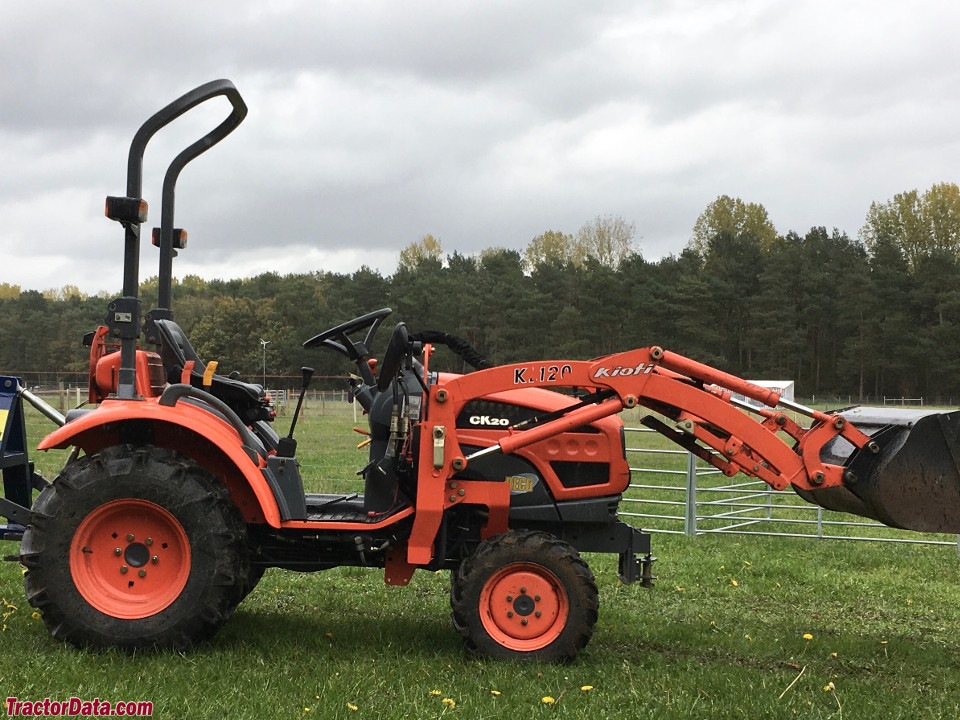

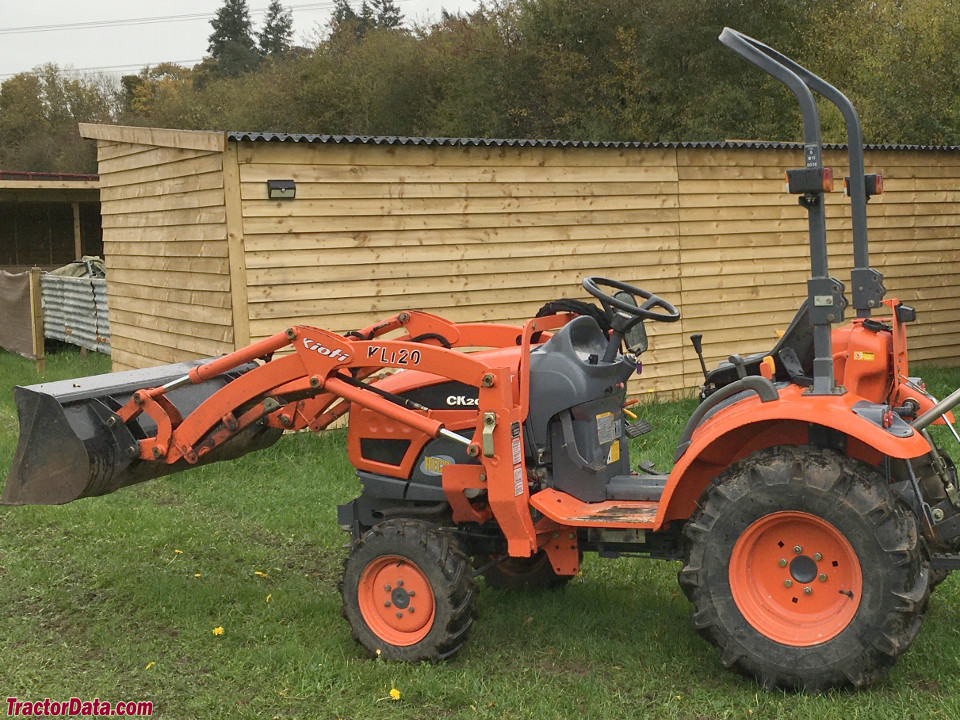

Kioti CK20
Kioti CK20 — Compact Utility tractor · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
1962 to 1993 pounds
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Built in Daegu, South KoreaReference
Four-wheel driveReference
SteeringpowerReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Variants
CK20gearReference
CK20HSThydrostaticReference
Engine
Daedong 0.9L 3-cyl dieselReference
Fuel tank20.0 LReference
Engine (gross)15.7 kWReference
Daedong 3C093Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Power (gross)15.7 kWReference
Pre-heatingglow plugsReference
Rated RPM2800Reference
Starter volts12Reference
Transmission
6-speed partially synchronizedReference
hydrostaticReference
Gear Weight889 kgReference
Typepartially synchronizedReference
Gears6 forward and 2 reverseReference
First gear synchronized between forward and reverse.Reference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Gear PTO (claimed)12.3 kWReference
Hydro PTO (claimed)11.6 kWReference
Valves0 or 1Reference
Total flow29.0 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)503 kgReference
Gear Rear PTOtransmissionReference
Hydro Rear PTOliveReference
Rear PTO Type540Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase147 cmReference
Weight1962 to 1993 poundsReference
Front tire6-12Reference
Rear tire9.5-16Reference
Ag front6-12Reference
Ag rear9.5-16Reference
Lawn/turf front24x8.50-12/4Reference
Lawn/turf rear33x12.5-16.5Reference
Industrial front24x8.50-12/4Reference
Industrial rear12-16.5Reference
Length268 cmReference
Width112 cmReference
Height (ROPS)196 cmReference
Hydro Weight904 kgReference
Ground clearance30 cmReference
Front tread90 cmReference
Rear tread88 to 93 cmReference
Kioti CK20 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kioti KB2365 Backhoe
Backhoe typeKioti KB2365 BackhoeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
