Tractor · 2004Unverified

Kioti CK25

Name: Kioti CK25
Brand: Kioti

Kioti CK25 — CK Series · 25 hp. Reference specifications; pending source verification.

The Kioti CK25 is a lightweight tractor with a rated power output of 25 hp. It was manufactured from 2004 to 2007 and features a 3-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a hydrostatic transmission. The operating weight of the Kioti CK25 ranges from 3042 to 3055 pounds. This model is suitable for managing operations on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Weight

3042 to 3055 pounds

Catalogue coverage

Variants represented

Richest spec table

86 rows

Recorded power

25 hp

Recorded weight

1379 kg

Transmissions

8-speed synchronized shuttle

Production years

2004-2007

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerKioti (a part of Daedong)Reference

Compact Utility tractorReference

Built in Daegu, South KoreaReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Canopy optional.Reference

Variants

CK25gearReference

CK25HSThydrostaticReference

Engine

Daedong 1.3L 3-cyl dieselReference

Fuel tank29.9 LReference

Engine (gross)18.6 kWReference

Daedong TD1300LXAReference

dieselReference

3-cylinderReference

liquid-cooledReference

Engine model TD1300LXE used on the CK25HST.Reference

Displacement1.3 LReference

Bore/Stroke82 x 82 mmReference

EmissionsTier IIReference

Power (gross)18.6 kWReference

Pre-heatingglow plugsReference

Rated RPM2600Reference

Starter volts12Reference

Oil capacity5.8 LReference

Transmission

8-speed synchronized shuttleReference

hydrostaticReference

16-speed creeperReference

Gear Weight1379 kgReference

Typesynchronized shuttleReference

Gears8 forward and reverseReference

Clutchdry discReference

Oil capacity27.0 LReference

Four synchronized gears in two ranges with mechanical shuttle. Shuttle and gear shifts can be made while moving, using the clutch. Tractor must be stopped, and clutch used, to shift range.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Oil capacity30.0 LReference

TypecreeperReference

Gears16 forward and reverseReference

Creeper option provides an additional low range to the entire transmission.Reference

PTO & Hydraulics

Gear PTO (claimed)14.2 kWReference

Hydro PTO (claimed)13.4 kWReference

Typeopen centerReference

Valves0 to 2Reference

Total flow48.1 lpmReference

Rear TypeIReference

Controlposition controlReference

Controldraft control optionalReference

Rear lift (at 24"/610mm)800 kgReference

Rear PTOlive (two-stage clutch)Reference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2520Reference

Engine RPM1000@2520Reference

Mid PTOoptionalReference

Mid PTO Type2000Reference

Engine RPM2000@2499Reference

Dimensions

Wheelbase167 cmReference

Weight3042 to 3055 poundsReference

Front tire7-14Reference

Rear tire11.2-24Reference

Ag front7-14Reference

Ag rear11.2-24Reference

Lawn/turf front27x8.50-15Reference

Lawn/turf rear41x14.00-20Reference

Industrial front25x8.50-14Reference

Industrial rear15-19.5Reference

Length310 cmReference

Width138 cmReference

Height (steering wheel)147 cmReference

Height (ROPS)245 cmReference

Hydro Weight1385 kgReference

Ground clearance35 cmReference

Front tread110 cmReference

Rear tread97 to 129 cmReference

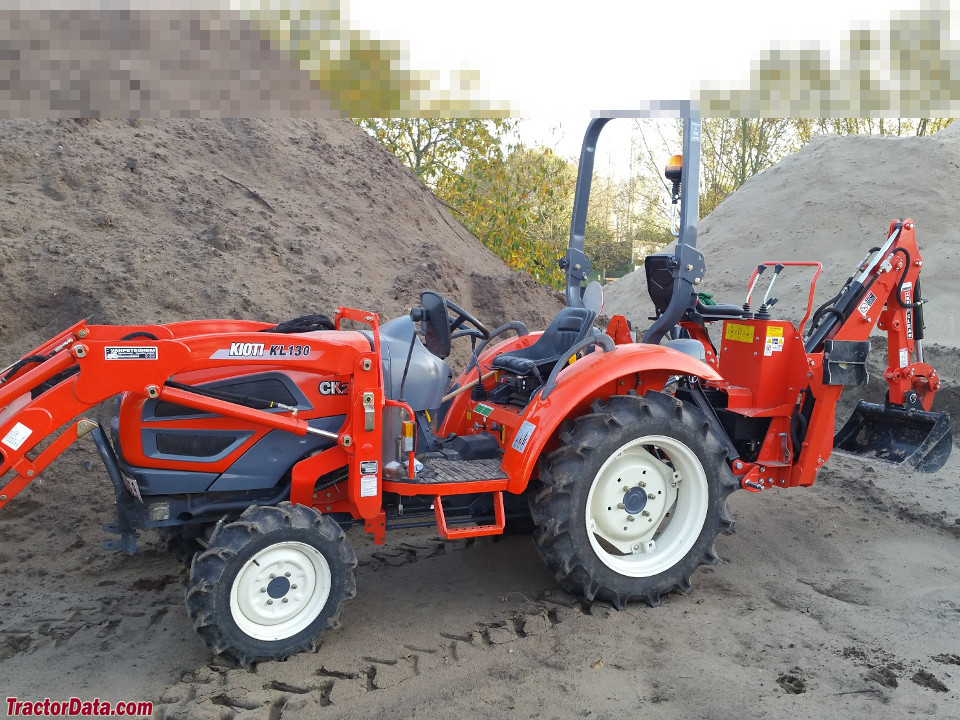

Kioti CK25 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Battery CCA630Reference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Kioti KB2365 Backhoe

Backhoe typeKioti KB2365 BackhoeReference

Kioti KB2375 Backhoe

Backhoe typeKioti KB2375 BackhoeReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
