Tractor · 2016Unverified

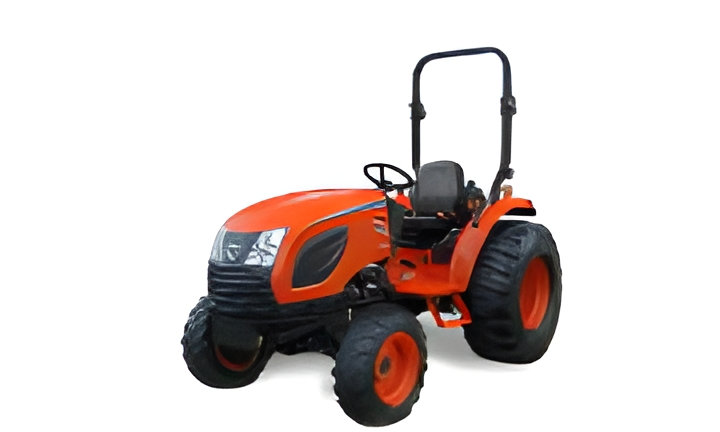

Kioti CK2610
Kioti CK2610 — Compact Utility tractor · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2646 to 2701 pounds
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Engine
Daedong 1.6L 3-cyl dieselReference
Fuel tank34.1 LReference
Engine (gross)18.3 kWReference
Daedong 3A165LWM-UReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.6 LReference
Bore/Stroke87 x 92 mmReference
EmissionsTier IVReference
Power (gross)18.3 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
hydrostaticReference
Gear Weight1200 kgReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Gear PTO (claimed)16.2 kWReference
Hydro PTO (claimed)16.0 kWReference
Typeopen centerReference
Valves0 to 2Reference
Pump flow44.3 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)739 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase166 cmReference
Weight2646 to 2701 poundsReference
Front tire7-16Reference
Rear tire11.2-24Reference
Weight399 kgReference
Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Lawn/turf front28x8.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front27x8.5-15Reference
Industrial rear15-19.5Reference
Length307 cmReference
Width139 cmReference
Width160 cmReference
Height251 cmReference
Hydro Weight1225 kgReference
Ground clearance34 cmReference
Front tread113 cmReference
Rear tread130 cmReference

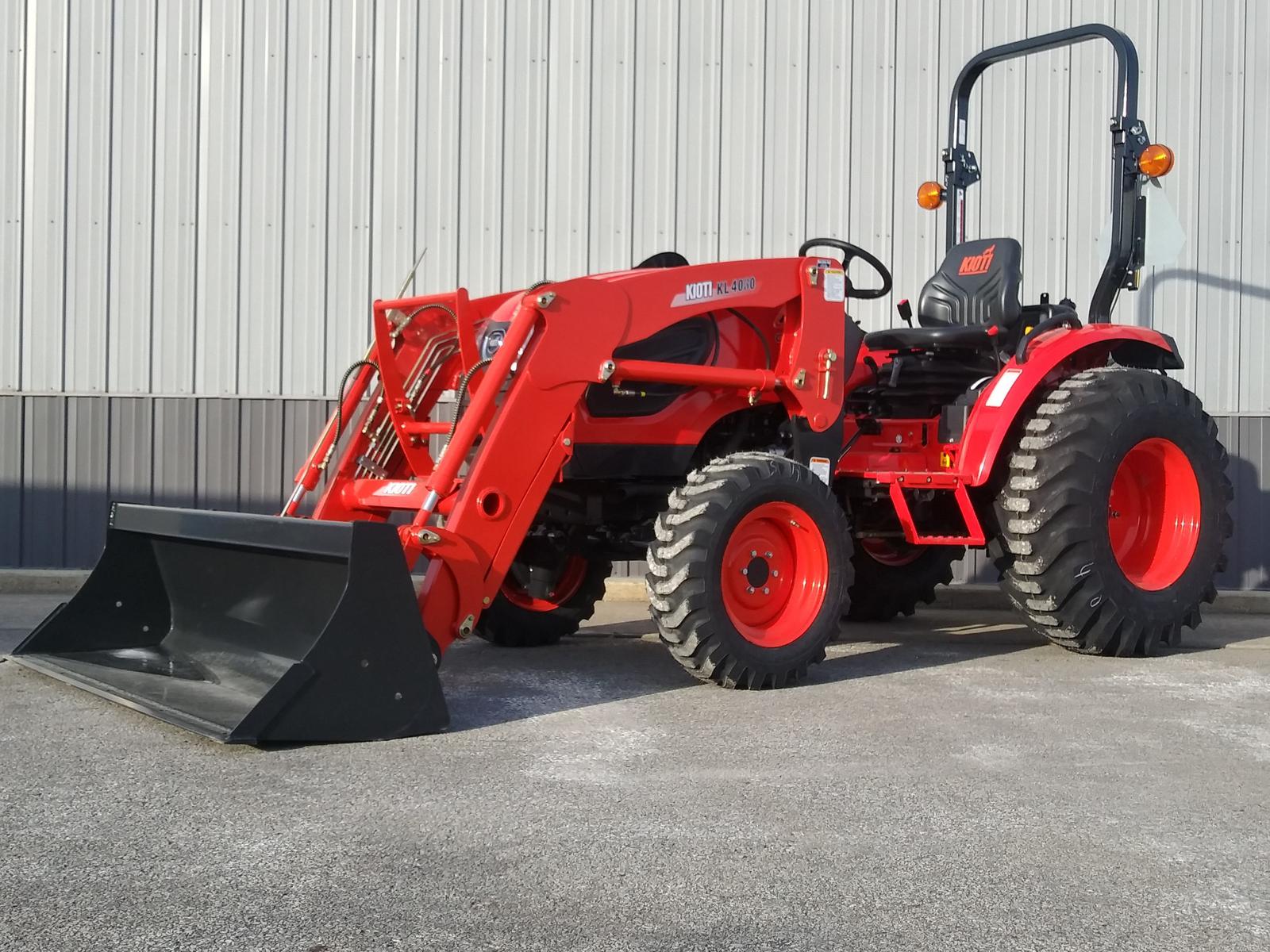

Kioti CK2610 attachments
front-end loaderReference
backhoeReference
Attachment overview
Front-end loaderReference
BackhoeReference
Kioti KB2775L Backhoe
Backhoe typeKioti KB2775L BackhoeReference
Transport height212 cmReference
2-Foot flat digging depth227 cmReference
Reach from pivot317 cmReference
Loading height183 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1277 kgReference
Dipperstick force954 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
