Tractor · 2023Unverified

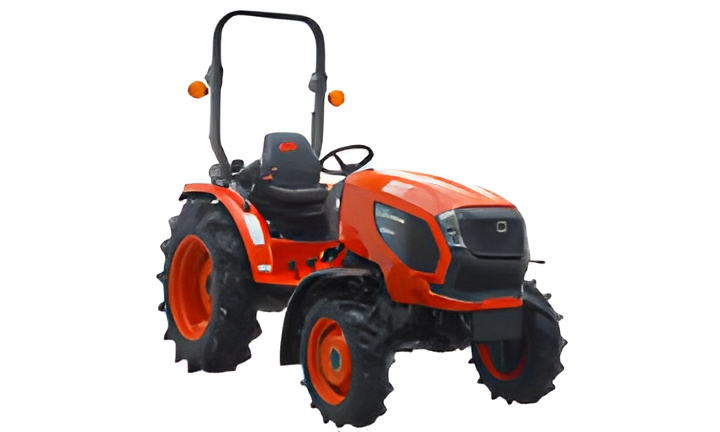

Kioti CK2620

Name: Kioti CK2620
Brand: Kioti

Kioti CK2620 — CK20 Series · 25 hp. Reference specifications; pending source verification.

The Kioti CK2620 is a tractor with a rated output of 25 hp — making it one of the more compact options in its class. The CK2620 was produced in 2023. It is powered by a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a hydrostatic transmission. Listed weight is 2635 to 2690 pounds, and it is aimed at jobs of around up to 200 ac. The available specification table below shows both UK and US units.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Max power

24.5 hp

Weight

2635 to 2690 pounds

Catalogue coverage

Variants represented

Richest spec table

100 rows

Recorded power

25 hp

Recorded weight

399 kg

Transmissions

9-speed gear

Production years

2023-2023

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerKioti (a part of Daedong)Reference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Daedong 1.6L 3-cyl dieselReference

Fuel tank34.1 LReference

Engine (gross)18.3 kWReference

DaedongReference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.6 LReference

Bore/Stroke87 x 92 mmReference

Power (gross)18.3 kWReference

Rated RPM2400Reference

StarterelectricReference

Starter volts12Reference

Fuel TypeDieselReference

Rated engine speed2,400 rpmReference

Transmission

9-speed gearReference

hydrostaticReference

Gear Weight1195 kgReference

TypegearReference

Gears9 forward and 3 reverseReference

Clutchdry discReference

Synchronized shuttle shift between 2 and reverse.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypeGearReference

forward and reverse options9F/3RReference

Wheel Drive4WDReference

PTO & Hydraulics

Gear PTO (claimed)14.5 kWReference

Hydro PTO (claimed)13.9 kWReference

Typeopen centerReference

Rear valves2Reference

Pump flow44.4 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at 24"/610mm)739 kgReference

Rear PTOliveReference

Rear PTO Type540 (1.375)Reference

Mid PTO Type2000Reference

Dimensions

Wheelbase167 cmReference

Weight2635 to 2690 poundsReference

Front tire7-16Reference

Rear tire11.2-24Reference

Weight399 kgReference

Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference

Lawn/turf front28x8.5-15Reference

Lawn/turf rear41x14-20Reference

Industrial front27x8.5-15Reference

Industrial rear15-19.5Reference

Length307 cmReference

Width138 cmReference

Height (ROPS)235 cmReference

Hydro Weight1220 kgReference

Ground clearance36 cmReference

Front tread122 cmReference

Rear tread119 cmReference

Kioti CK2620 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Kioti KL4030 loaderReference

Kioti KL4030C loaderReference

BackhoeReference

Kioti KB2475L Backhoe

Backhoe typeKioti KB2475L BackhoeReference

Transport height212 cmReference

2-Foot flat digging depth227 cmReference

Reach from pivot317 cmReference

Loading height183 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1277 kgReference

Dipperstick force954 kgReference

Capacities

Capacity100.5 cu in.Reference

Power

Max Power24.5 hpReference

PTO

PTO Power19.5 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 rpmReference

Mid PTOAvailableReference

Mid PTO RPM2,000 rpmReference

Steering & brakes

BrakesWet Multi DiscReference

Steering typePower SteeringReference

Hydraulics

Pump Rated Output (total)44.4 l/minReference

Remote Valves2Reference

Rear Hitch category (SAE designation)Category 1Reference

Rear Hitch maximum lift capacity739.8 kgReference

General

SCV controlJoystick: AvailableReference

Dimensions & weight

Height Over ROPS236 cmReference

Overall Length307 cmReference

Overall Width138.4 cmReference

Turning radius273 cmReference

Overall weight1,195.2 kgReference

Wheels & tyres

Rear Wheel TypeRear AG.(Turf, Industrial):\\n11.2-24 (41*14-20/4,15-19.5)Reference

Rear wheel tread range119.5 cmReference

Front Wheel TypeFront AG (Turf, Industrial): \\n7-16 (28*8.5-15/6, 27x8.5-15)Reference

Front Wheel tread range122.5 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
