Tractor · 2023Unverified

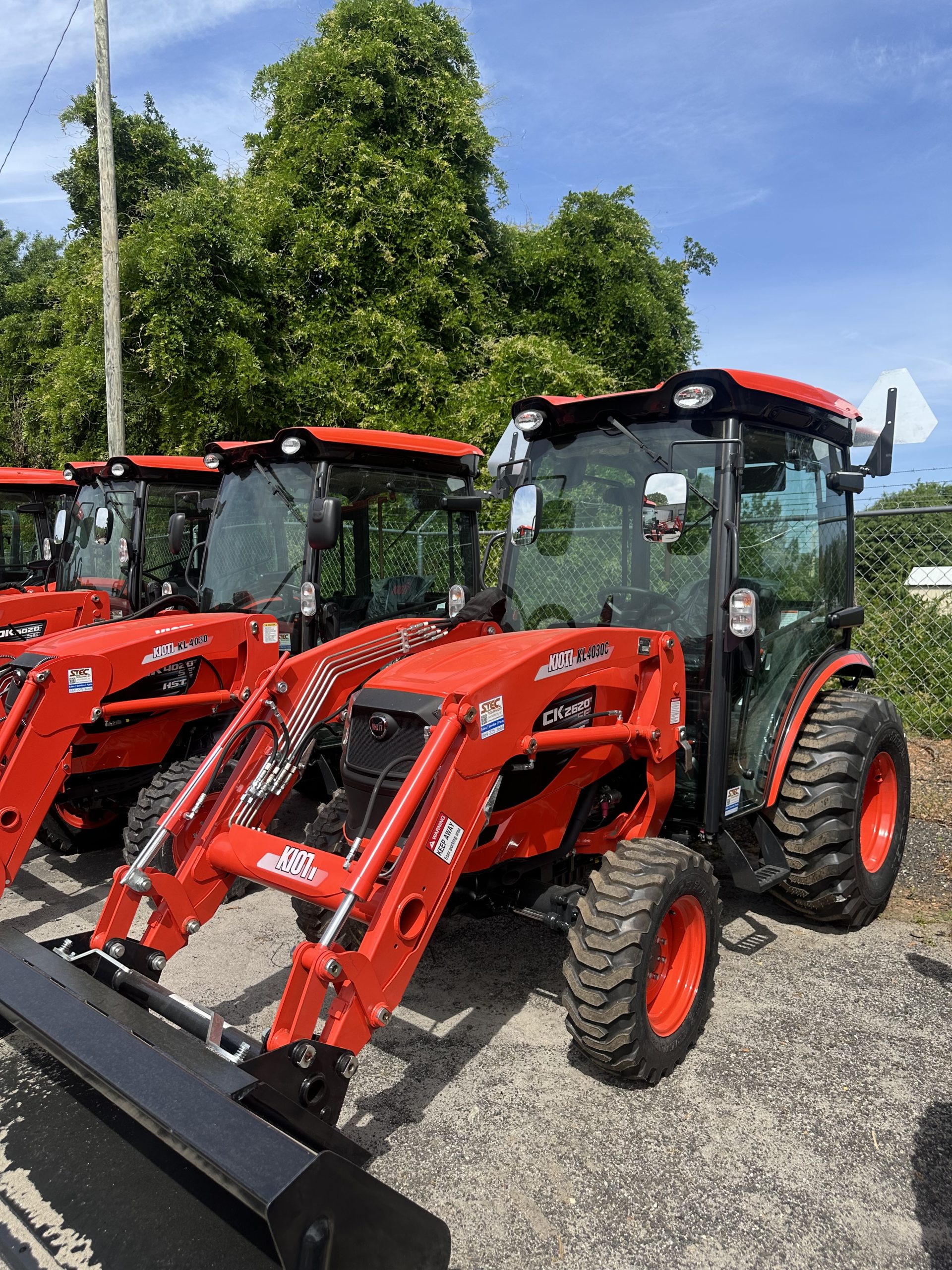

Kioti CK2620SE

Name: Kioti CK2620SE
Brand: Kioti

Kioti CK2620SE — CK20 Series · 25 hp. Reference specifications; pending source verification.

The Kioti CK2620SE is a compact tractor with a power output of 25 hp, making it suitable for a range of tasks. Manufactured in 2023, this tractor features a 3-cylinder diesel liquid-cooled engine driving four-wheel drive via a hydrostatic transmission. The listed weight of the CK2620SE is 1540 kg, and it is capable of handling tasks on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Weight

1540 kg

Catalogue coverage

Variants represented

Richest spec table

64 rows

Recorded power

25 hp

Recorded weight

1540 kg

Transmissions

hydrostatic

Production years

2023-2023

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerKioti (a part of Daedong)Reference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Cab standard.Reference

Engine

Daedong 1.6L 3-cyl dieselReference

Fuel tank34.1 LReference

Engine (gross)18.3 kWReference

DaedongReference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.6 LReference

Bore/Stroke87 x 92 mmReference

Power (gross)18.3 kWReference

Rated RPM2400Reference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

PTO & Hydraulics

PTO (claimed)13.9 kWReference

Typeopen centerReference

Rear valves2Reference

Pump flow44.4 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at 24"/610mm)739 kgReference

Rear PTOliveReference

Rear PTO Type540 (1.375)Reference

Mid PTO Type2000Reference

Dimensions

Wheelbase167 cmReference

Weight1540 kgReference

Front tire7-16Reference

Rear tire11.2-24Reference

Weight399 kgReference

Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference

Lawn/turf front28x8.5-15Reference

Lawn/turf rear41x14-20Reference

Industrial front27x8.5-15Reference

Industrial rear15-19.5Reference

Length307 cmReference

Width138 cmReference

Height (cab)234 cmReference

Ground clearance36 cmReference

Front tread122 cmReference

Rear tread119 cmReference

Kioti CK2620SE attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

Kioti KL4030 loaderReference

Kioti KL4030C loaderReference

BackhoeReference

Kioti KB2475L Backhoe

Backhoe typeKioti KB2475L BackhoeReference

Transport height212 cmReference

2-Foot flat digging depth227 cmReference

Reach from pivot317 cmReference

Loading height183 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1277 kgReference

Dipperstick force954 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
