Tractor · 2008Unverified

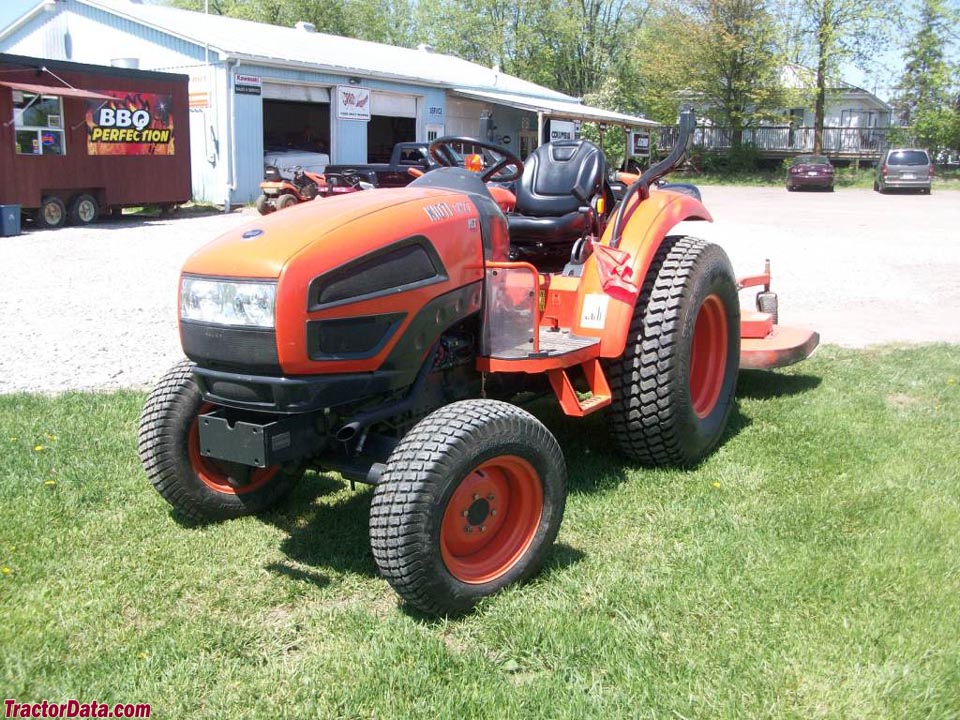

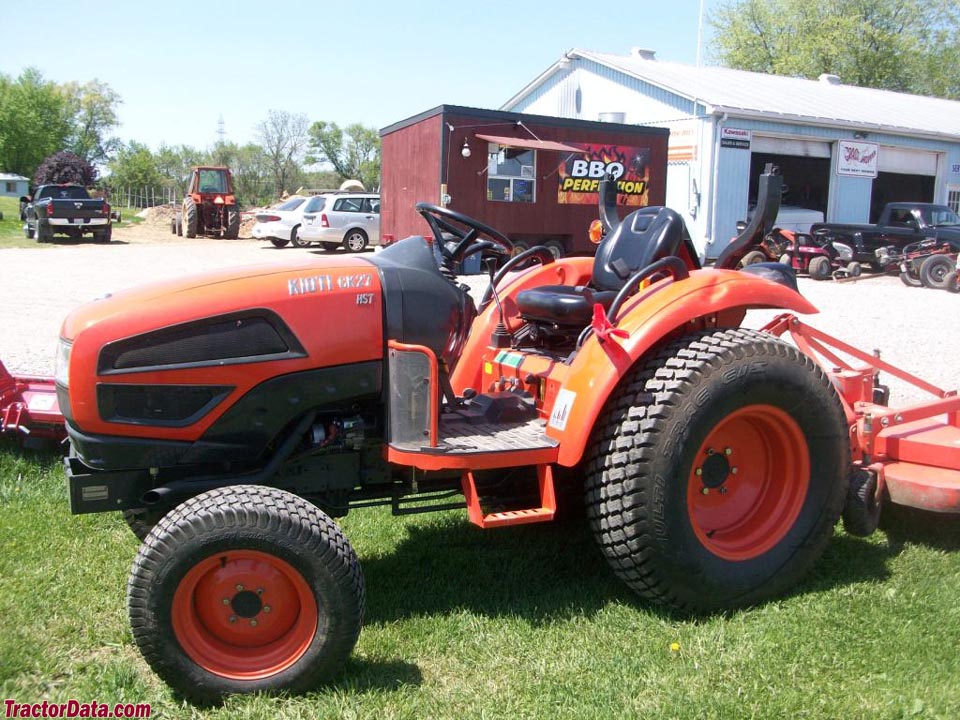

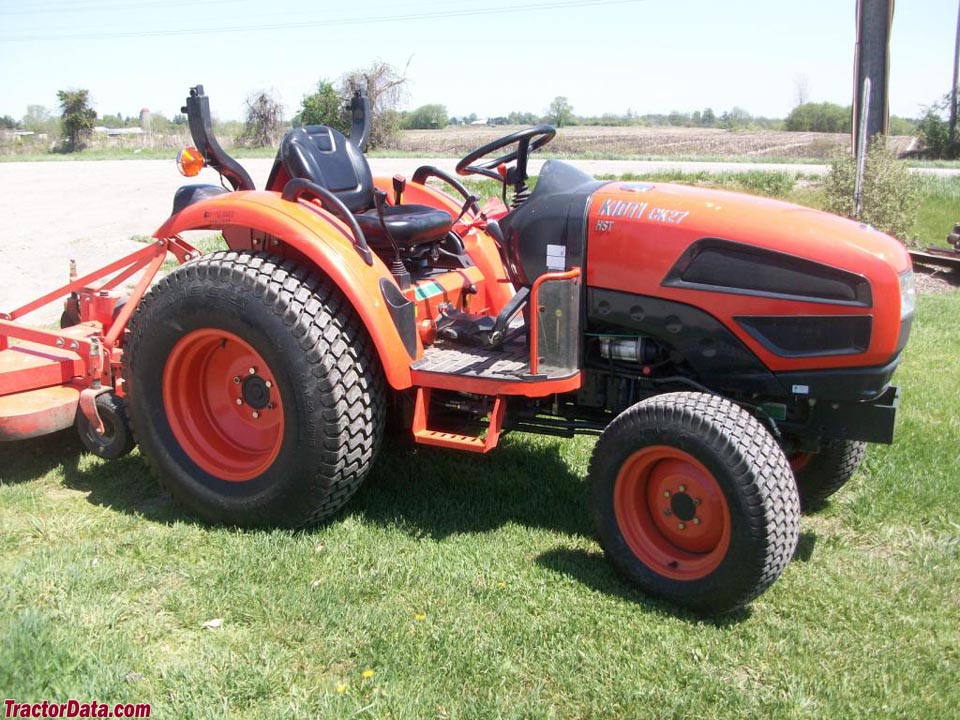

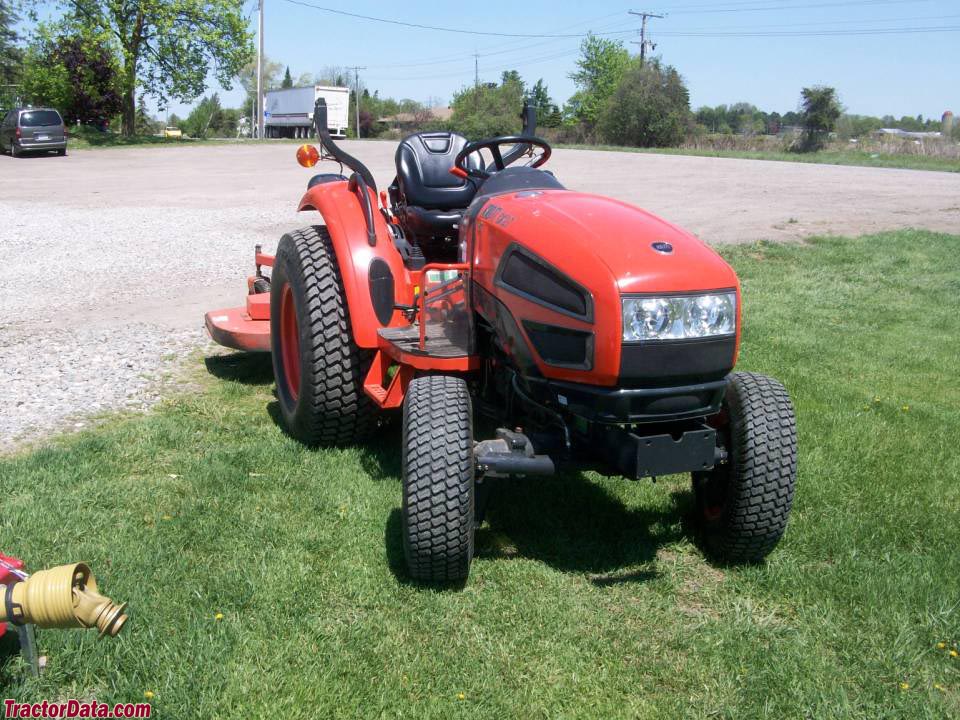

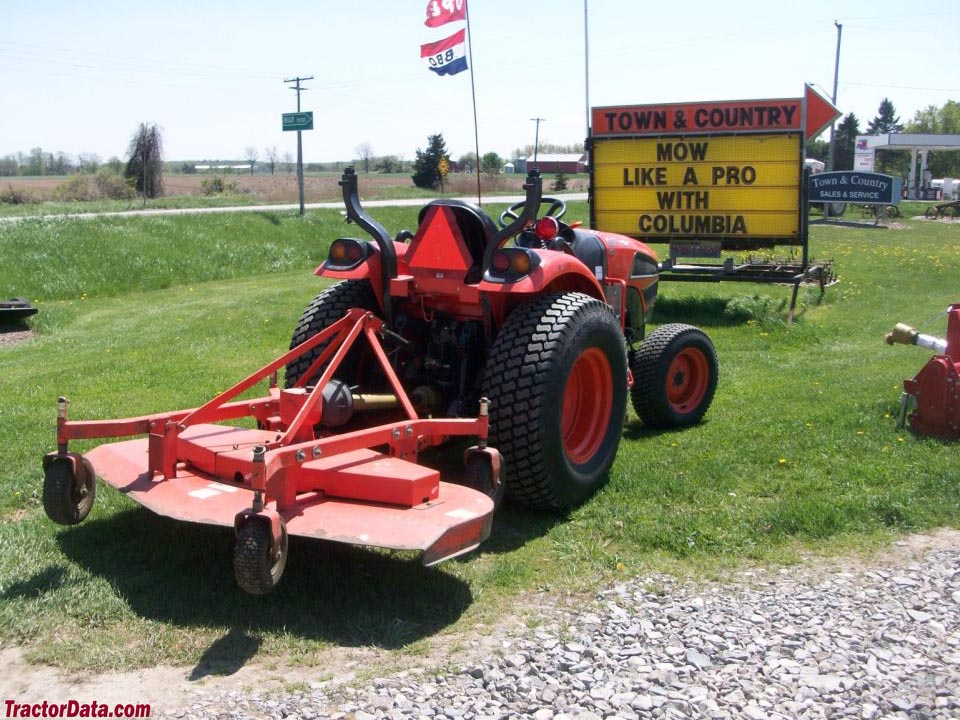

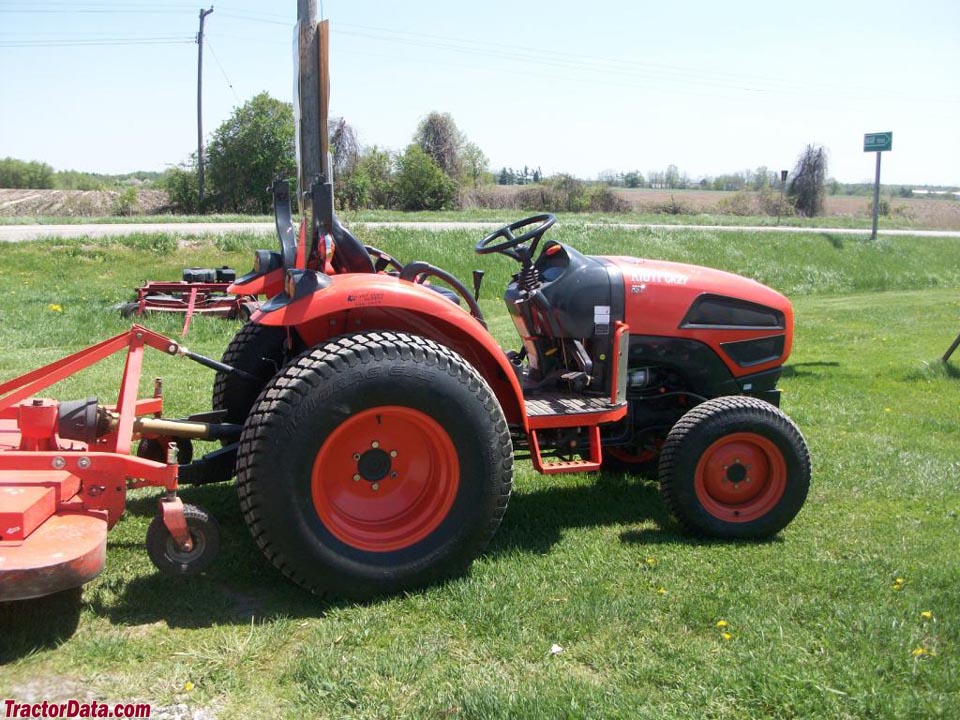

Kioti CK27
Kioti CK27 — CK Series · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
3117 to 3161 pounds
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Built in Daegu, South KoreaReference
Four-wheel driveReference
Differential lockstandardReference
Power steeringReference
Wet disc brakesReference
Foldable ROPS. Canopy optional.Reference
Variants
CK27gearReference
CK27HSThydrostaticReference
Engine
Daedong 1.4L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine (gross)20.9 kWReference
Daedong 3A139LWMReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.4 LReference
Bore/Stroke80 x 92 mmReference
EmissionsTier IIIReference
Power (gross)20.9 kWReference
Pre-heatingglow plugsReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed synchronized shuttleReference
hydrostaticReference
Gear Weight1433 kgReference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)16.2 kWReference
Hydro PTO (claimed)15.3 kWReference
Valves0 to 2Reference
Total flow48.1 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)800 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Rear PTO Type1000 (optional)Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase167 cmReference
Weight3117 to 3161 poundsReference
Front tire7-14Reference
Rear tire11.2-24Reference
Weight484 kgReference
Ag front7-14Reference
Ag rear11.2-24Reference
Lawn/turf front27x8.50-15Reference
Lawn/turf rear41x14.00-20Reference
Industrial front25x8.50-14Reference
Industrial rear15-19.5Reference
Length310 cmReference
Width138 cmReference
Height (ROPS)245 cmReference
Hydro Weight1413 kgReference
Ground clearance35 cmReference
Front tread110 cmReference
Rear tread97 to 130 cmReference
Kioti CK27 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kioti KB2475 Backhoe
Backhoe typeKioti KB2475 BackhoeReference
2-Foot flat digging depth227 cmReference
Reach from pivot317 cmReference
Loading height183 cmReference
Bucket force1277 kgReference
Dipperstick force954 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
