Tractor · 2006Unverified

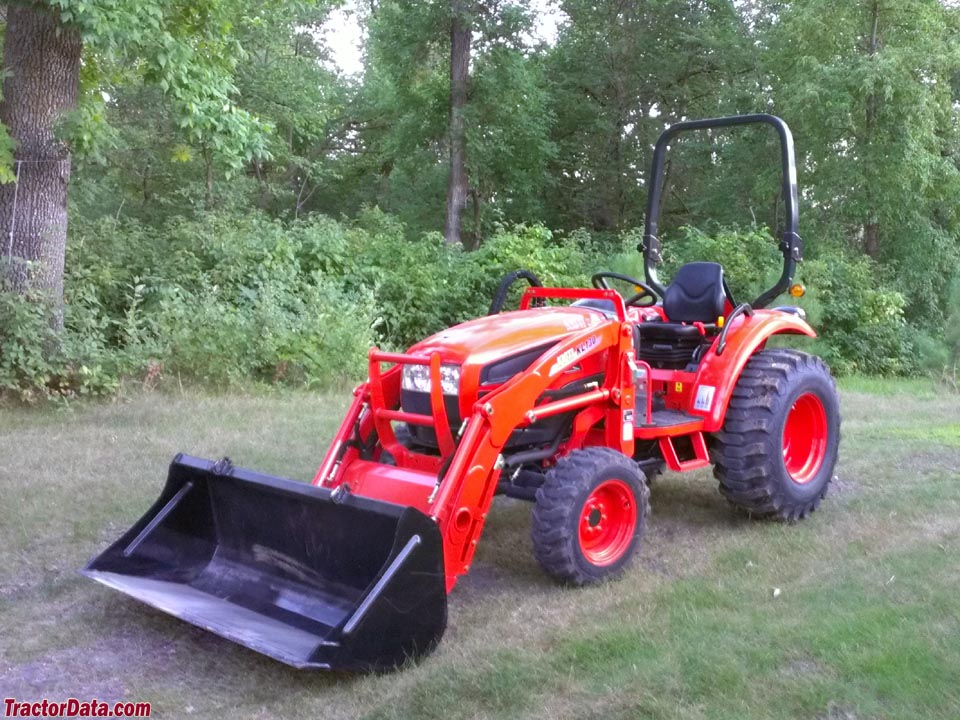

Kioti CK35

Name: Kioti CK35
Brand: Kioti

Kioti CK35 — CK Series · 34 hp. Reference specifications; pending source verification.

The Kioti CK35 is a tractor with a rated power of 34 hp, positioning it within the lighter end of its class. Manufactured between 2006 and 2014, this tractor features a 3-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and a hydrostatic transmission. Its operating weight is stated as 3042 to 3118 pounds. Suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

34 hp

Max power

34 hp

Weight

3042 to 3118 pounds

Catalogue coverage

Variants represented

Richest spec table

105 rows

Recorded power

34 hp

Recorded weight

1379 kg

Transmissions

8-speed synchronized shuttle

Production years

2006-2014

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerKioti (a part of Daedong)Reference

Compact Utility tractorReference

Built in Daegu, South KoreaReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Canopy optional.Reference

Variants

CK35shuttleReference

CK35HSThydrostaticReference

Engine

Daedong 1.6L 3-cyl dieselReference

Fuel tank29.9 LReference

Engine (gross)25.4 kWReference

Daedong 3A165LXDReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.6 LReference

Bore/Stroke87 x 92 mmReference

Power (gross)25.4 kWReference

Pre-heatingglow plugsReference

Rated RPM2600Reference

Starter volts12Reference

Oil capacity5.8 LReference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke3.43x3.64 inchesReference

Cooling systemliquid-cooledReference

Transmission

8-speed synchronized shuttleReference

hydrostaticReference

16-speed creeperReference

Gear Weight1379 kgReference

Typesynchronized shuttleReference

Gears8 forward and reverseReference

Clutchdry discReference

Oil capacity27.0 LReference

Four synchronized gears in two ranges with mechanical shuttle. Shuttle and gear shifts can be made while moving, using the clutch. Tractor must be stopped, and clutch used, to shift range.Reference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Oil capacity30.0 LReference

TypecreeperReference

Gears16 forward and reverseReference

Creeper option provides an additional low range to the entire transmission.Reference

Transmission TypeSync ShuttleReference

Wheel Drive4 WDReference

PTO & Hydraulics

Gear PTO (claimed)20.6 kWReference

Hydro PTO (claimed)19.8 kWReference

Typeopen centerReference

Valves0 to 2Reference

Total flow48.8 lpmReference

Rear TypeIReference

Controlposition controlReference

Controldraft control optionalReference

Rear lift (at 24"/610mm)800 kgReference

Rear PTOlive (two-stage clutch)Reference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2520Reference

Engine RPM1000@2520Reference

Mid PTOoptionalReference

Mid PTO Type2000Reference

Engine RPM2000@2499Reference

Dimensions

Wheelbase167 cmReference

Weight3042 to 3118 poundsReference

Front tire7-14Reference

Rear tire11.2-24Reference

Ag front7-14Reference

Ag rear11.2-24Reference

Lawn/turf front27x8.50-15Reference

Lawn/turf rear41x14.00-20Reference

Industrial front25x8.50-14Reference

Industrial rear15-19.5Reference

Length310 cmReference

Width138 cmReference

Height (ROPS)245 cmReference

Hydro Weight1414 kgReference

Ground clearance35 cmReference

Front tread110 cmReference

Rear tread97 to 130 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Battery CCA630Reference

Battery volts12Reference

General

Make & ModelKioti (a part of Daedong)Reference

Cruise controlAvailableReference

SCV controlJoystickReference

Rollover protective structureFoldable ROPS.Reference

Country of manufacturerSouth KoreaReference

Capacities

Capacity100.5 ciReference

Power

Max Power34 hpReference

PTO

PTO Power28 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Mid PTO RPM2,000 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)12.9 gpmReference

Remote Valves0 to 2 ValvesReference

Rear Hitch category (SAE designation)Category IReference

Dimensions & weight

Overall Height245.9 cmReference

Overall Length310.4 cmReference

Overall Width139.7 cmReference

Overall weight1,414.3 kgReference

Operator station

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
