Tractor · 2017Unverified

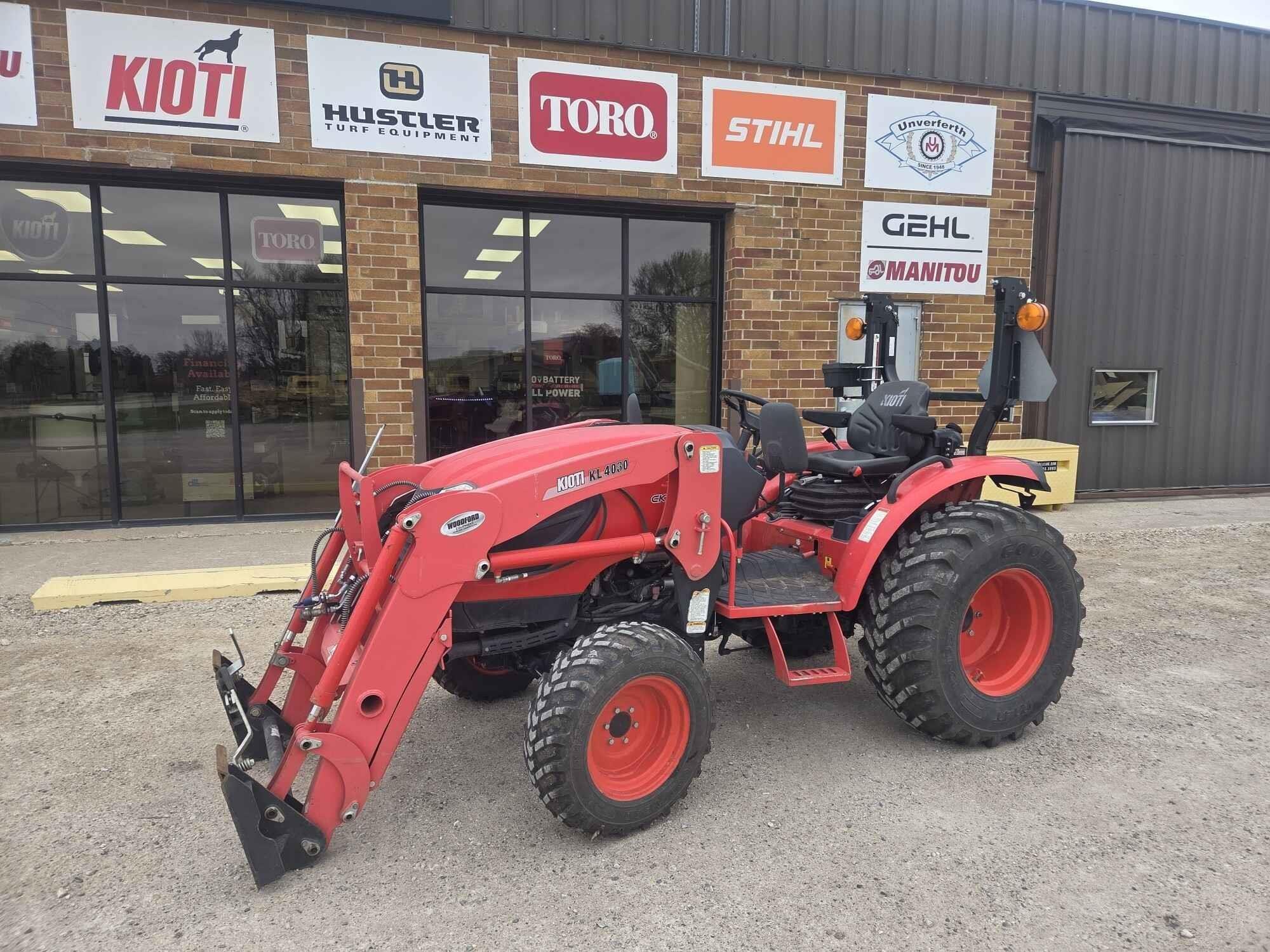

Kioti CK3510SE
Kioti CK3510SE — CK Series · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
2906 to 3397 pounds
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Two-post folding ROPS.Reference
Engine
Daedong 1.8L 3-cyl dieselReference
Fuel tank34.1 LReference
Engine (gross)26.0 kWReference
Daedong 3H-TH4BReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.8 LReference
Bore/Stroke87 x 102 mmReference
Power (gross)26.0 kWReference
Fuel systemcommon rail direct injectionReference
Air cleanerdry dual elementReference
Pre-heatingblock heaterReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchro shuttleReference
hydrostaticReference
Typesynchro shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)23.0 kWReference
Hydro PTO (claimed)21.6 kWReference
Typeopen centerReference
Rear valves2 or 3Reference
Pump flow42.8 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)739 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2000Reference
Dimensions
Wheelbase166 cmReference
Weight2906 to 3397 poundsReference
Front tire7-16Reference
Rear tire11.2-24Reference
Weight442 kgReference
Ag front7-16Reference
Ag rear11.2-24Reference
Lawn/turf front28x8.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front27x8.5-15Reference
Industrial rear15-19.5Reference
Length307 cmReference
Width138 cmReference
Height (ROPS)235 cmReference
Height (cab)234 cmReference
Ground clearance34 cmReference
Front tread122 cmReference
Rear tread120 cmReference
ROPS shuttle1318 kgReference
ROPS hydro1324 kgReference
Cab hydro1540 kgReference
Kioti CK3510SE attachments
snowblowerReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
SnowblowerReference
Front-end loaderReference
BackhoeReference
Kioti KB2475L Backhoe
Backhoe typeKioti KB2475L BackhoeReference
Transport height212 cmReference
2-Foot flat digging depth227 cmReference
Reach from pivot317 cmReference
Loading height183 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force954 kgReference
Dipperstick force1278 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
