Tractor · 2023Unverified
Kioti CK3520SE
Kioti CK3520SE — CK20 Series · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
2906 to 3397 pounds
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional.Reference
Engine
Daedong 1.8L 3-cyl dieselReference
Fuel tank34.1 LReference
Engine (gross)26.0 kWReference
DaedongReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.8 LReference
Bore/Stroke87 x 103 mmReference
Power (gross)26.0 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed sync shuttleReference
hydrostaticReference
Gear ROPS1318 kgReference
Typesync shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)23.0 kWReference
Hydro PTO (claimed)21.6 kWReference
Typeopen centerReference
Rear valves2Reference
Pump flow44.4 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)739 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase167 cmReference
Weight2906 to 3397 poundsReference
Front tire7-16Reference
Rear tire11.2-24Reference
Weight399 kgReference
Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Lawn/turf front28x8.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front27x8.5-15Reference
Industrial rear15-19.5Reference
Length307 cmReference
Width138 cmReference
Height (ROPS)235 cmReference
Ground clearance36 cmReference
Front tread122 cmReference
Rear tread119 cmReference
Hydro ROPS1324 kgReference
Hydro cab1540 kgReference
Kioti CK3520SE attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Kioti KL4030 loaderReference
Kioti KL4030C loaderReference
BackhoeReference

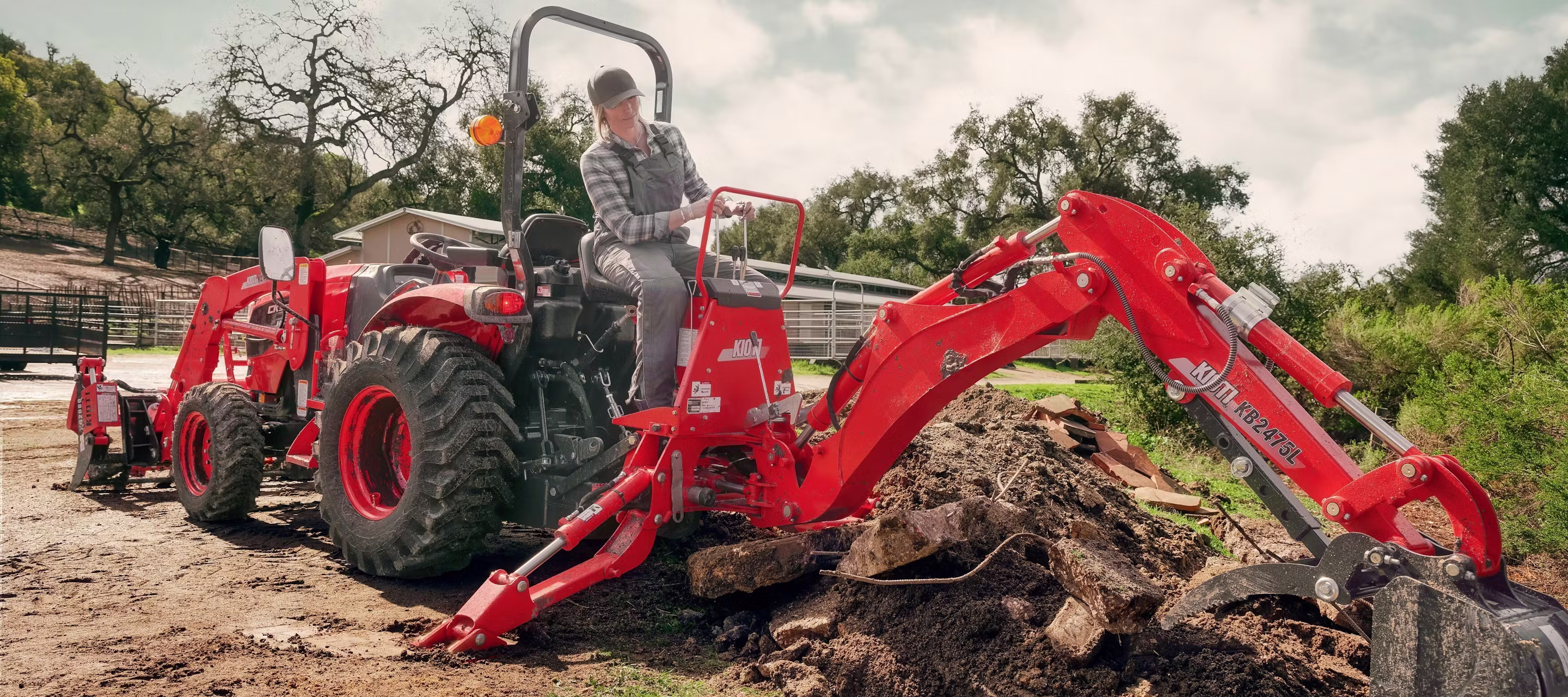

Kioti KB2475L Backhoe
Backhoe typeKioti KB2475L BackhoeReference
Transport height212 cmReference
2-Foot flat digging depth227 cmReference
Reach from pivot317 cmReference
Loading height183 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1277 kgReference
Dipperstick force954 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
