Tractor · 2016Unverified

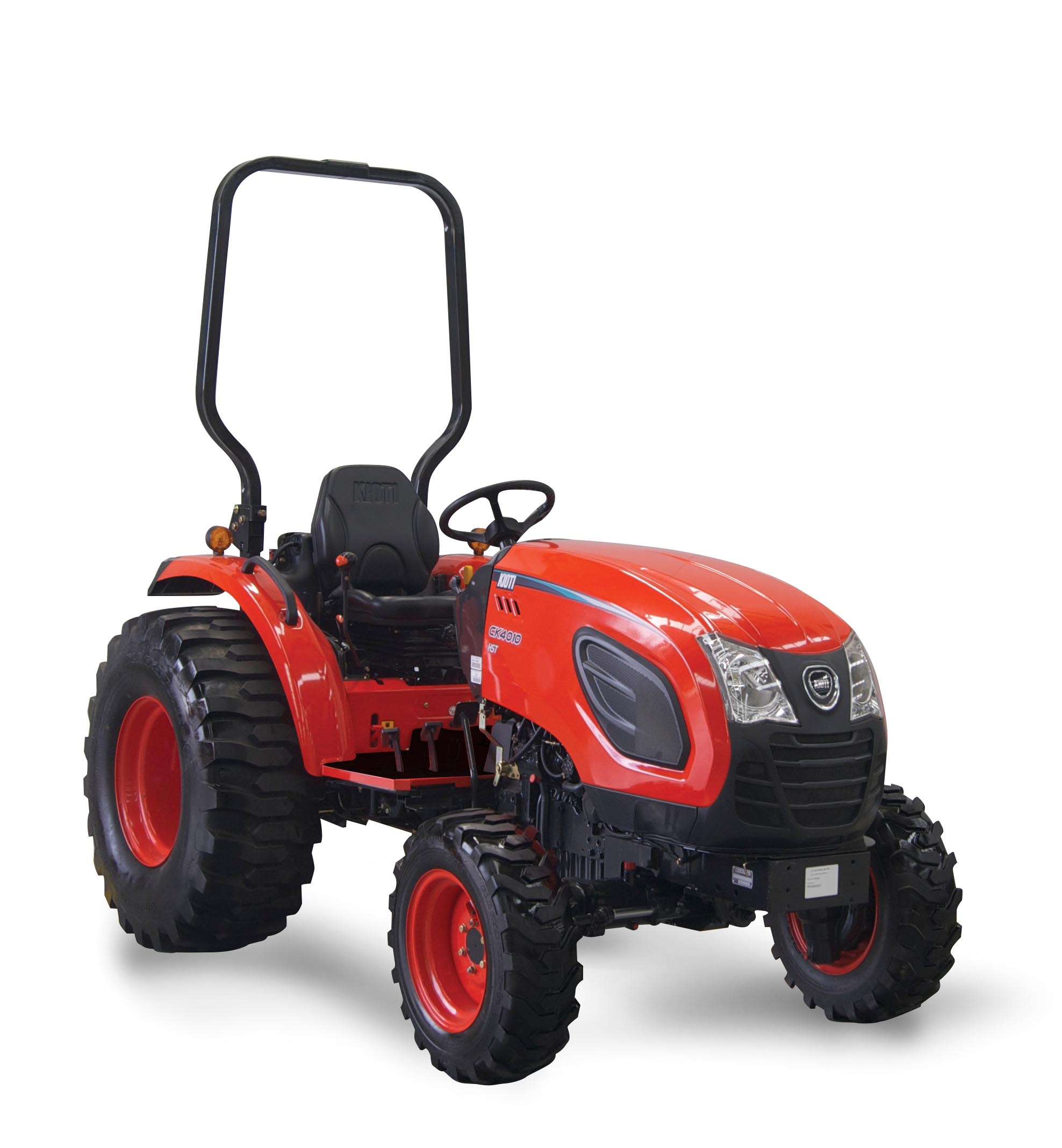

Kioti CK4210
Kioti CK4210 — Compact Utility tractor · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
399 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Daedong 1.8L 3-cyl dieselReference
Fuel tank34.1 LReference
Engine (gross)28.3 kWReference
Daedong 3B183LWM-EReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke87 x 102 mmReference
Power (gross)28.3 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
hydrostaticReference
TypegearReference
Gears9 forward and 3 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow44.3 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)739 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Dimensions
Wheelbase167 cmReference
Front tire25x8.5-14Reference
Rear tire15-19.5Reference
Weight399 kgReference
Standard tires (ag)Front: 25x8.5-14. Rear: 15-19.5Reference
Length307 cmReference
Width139 cmReference
Height (ROPS)264 cmReference
Ground clearance34 cmReference
Front tread113 cmReference
Rear tread130 cmReference
Kioti CK4210 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kioti KB2475L Backhoe
Backhoe typeKioti KB2475L BackhoeReference
Transport height212 cmReference
2-Foot flat digging depth227 cmReference
Reach from pivot317 cmReference
Loading height183 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1277 kgReference
Dipperstick force954 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
