Tractor · 2020Unverified

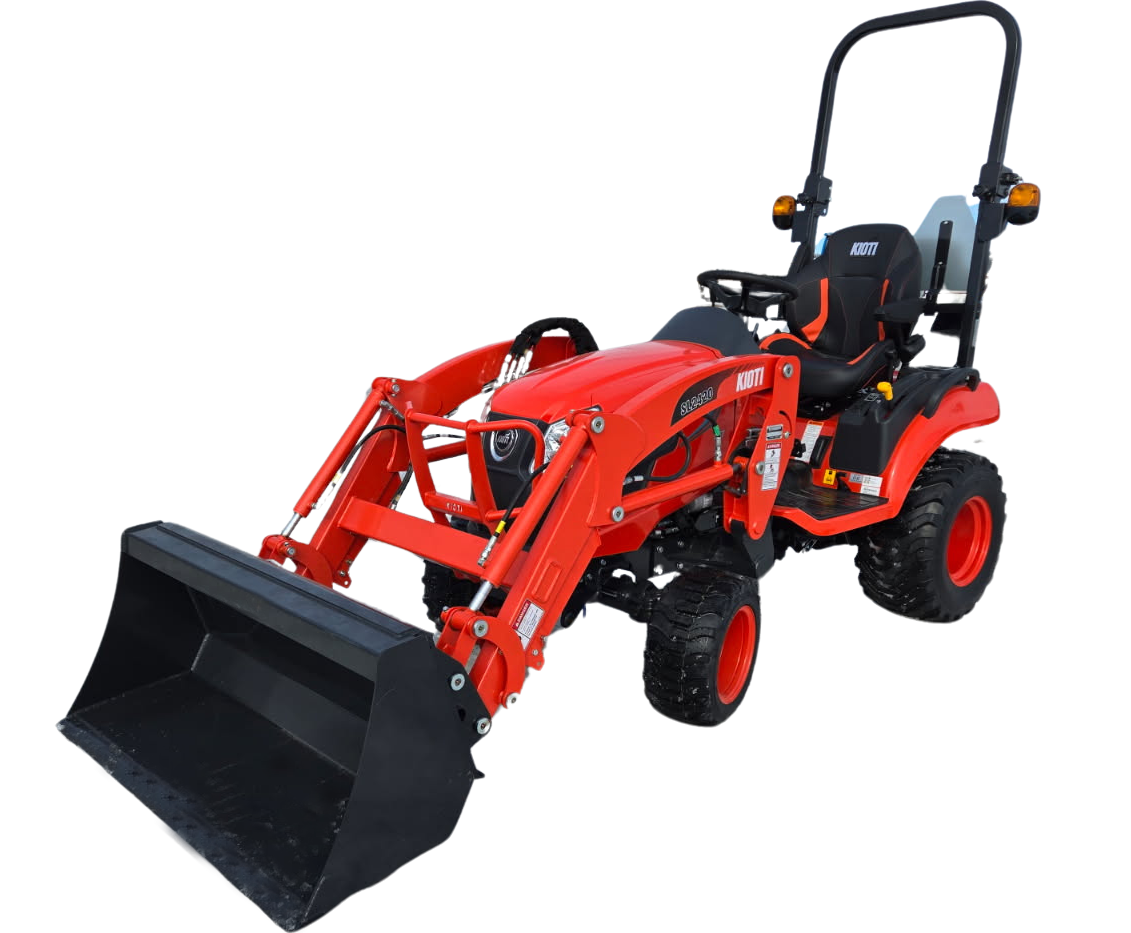

Kioti CS2520
Kioti CS2520 — CS Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
704 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Daedong 1.0L 3-cyl dieselReference
Fuel tank25.4 LReference
Engine (gross)18.3 kWReference
Daedong 3C100LFHReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke75 x 76 mmReference
Power (gross)18.3 kWReference
Rated RPM3200Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)13.8 kWReference
Typeopen centerReference
Pump flow26.4 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)317 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Mid PTO Type2200Reference
Dimensions
Wheelbase139 cmReference
Weight704 kgReference
Weight288 kgReference
Lawn/turf front18x8.50-10Reference
Lawn/turf rear26x12.00-12Reference
Industrial front18x8.50-10Reference
Industrial rear26x12.00-12Reference
Length252 cmReference
Width116 cmReference
Height (ROPS)223 cmReference
Ground clearance16 cmReference
Front tread116 cmReference
Rear tread116 cmReference
Kioti CS2520 attachments
54" mid-mount mower deckReference
60" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
60" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
Kioti SB2420 Backhoe
Backhoe typeKioti SB2420 BackhoeReference
Transport height172 cmReference
Bucket width20 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width60 cmReference
2-Foot flat digging depth184 cmReference
Reach from pivot268 cmReference
Loading height150 cmReference
Bucket Rotation165°Reference
Swing Arc150°Reference
Bucket force954 kgReference
Dipperstick force536 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
