Tractor · 2025Unverified

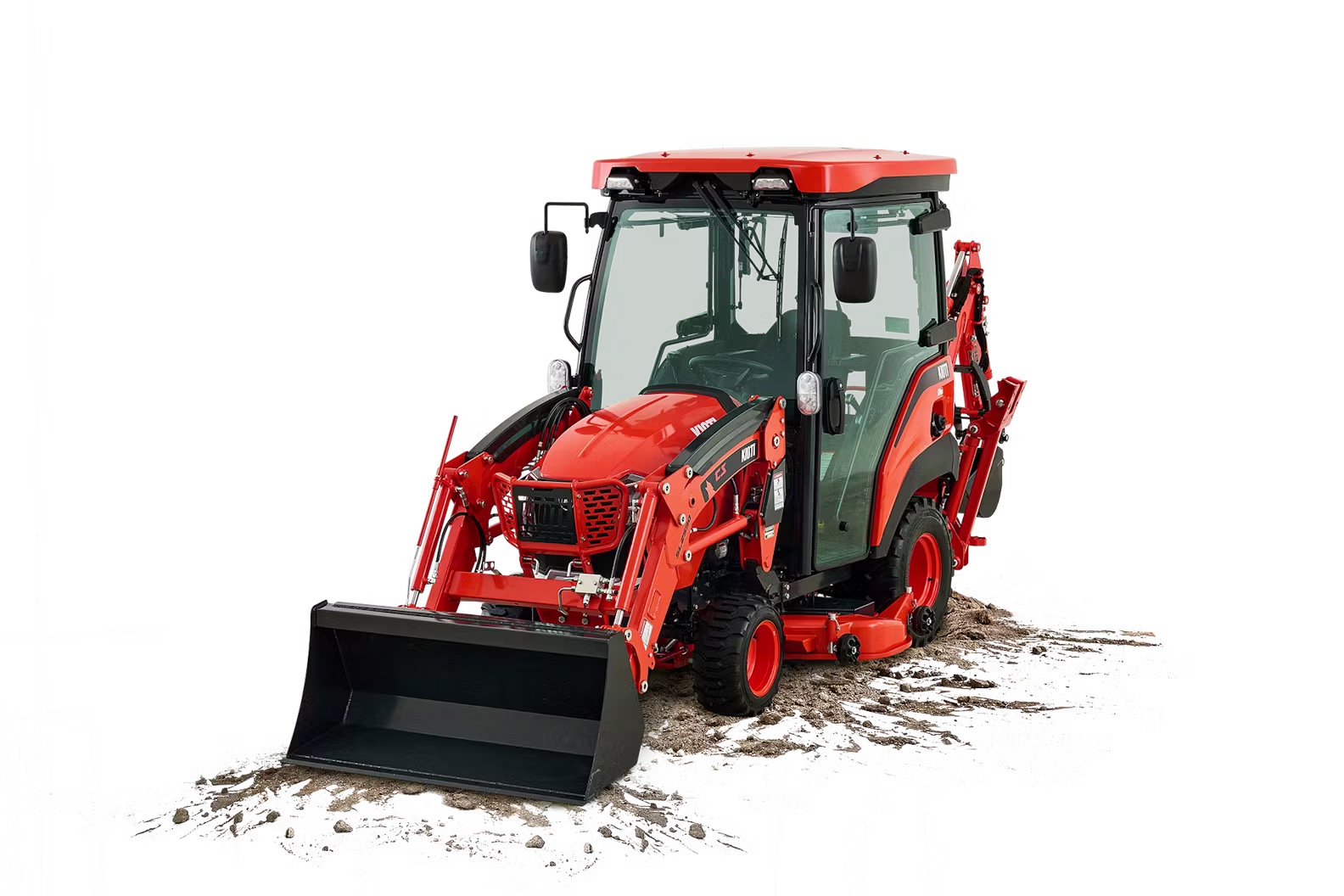

Kioti CS2530
Kioti CS2530 — CS Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
278 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Engine
Daedong 1.2L 3-cyl dieselReference
Fuel tank25.4 LReference
Engine18.3 kWReference
Daedong 3L123Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.2 LReference
Bore/Stroke78 x 86 mmReference
Power18.3 kWReference
Fuel systemindirect injectionReference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow18.5 lpmReference
Total flow26.4 lpmReference
Steering flow7.6 lpmReference
Rear TypeIReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Mid PTOindependentReference
Dimensions
Front tire18x8.5-10Reference
Weight278 kgReference
Standard tires (ag)Front: 18x8.5-10. Rear:Reference
Optional tires (ag)Front: 26x12.00-12. Rear:Reference
Height (cab)210 cmReference
Kioti CS2530 attachments
60" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount KiotiReference
Type3-blade with hydraulic liftReference
Cutting width152 cmReference
Kioti SB2530 Backhoe
Backhoe typeKioti SB2530 BackhoeReference
Transport height173 cmReference
Loading height150 cmReference
Bucket force954 kgReference
Dipperstick force537 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
