Tractor · 2007Unverified

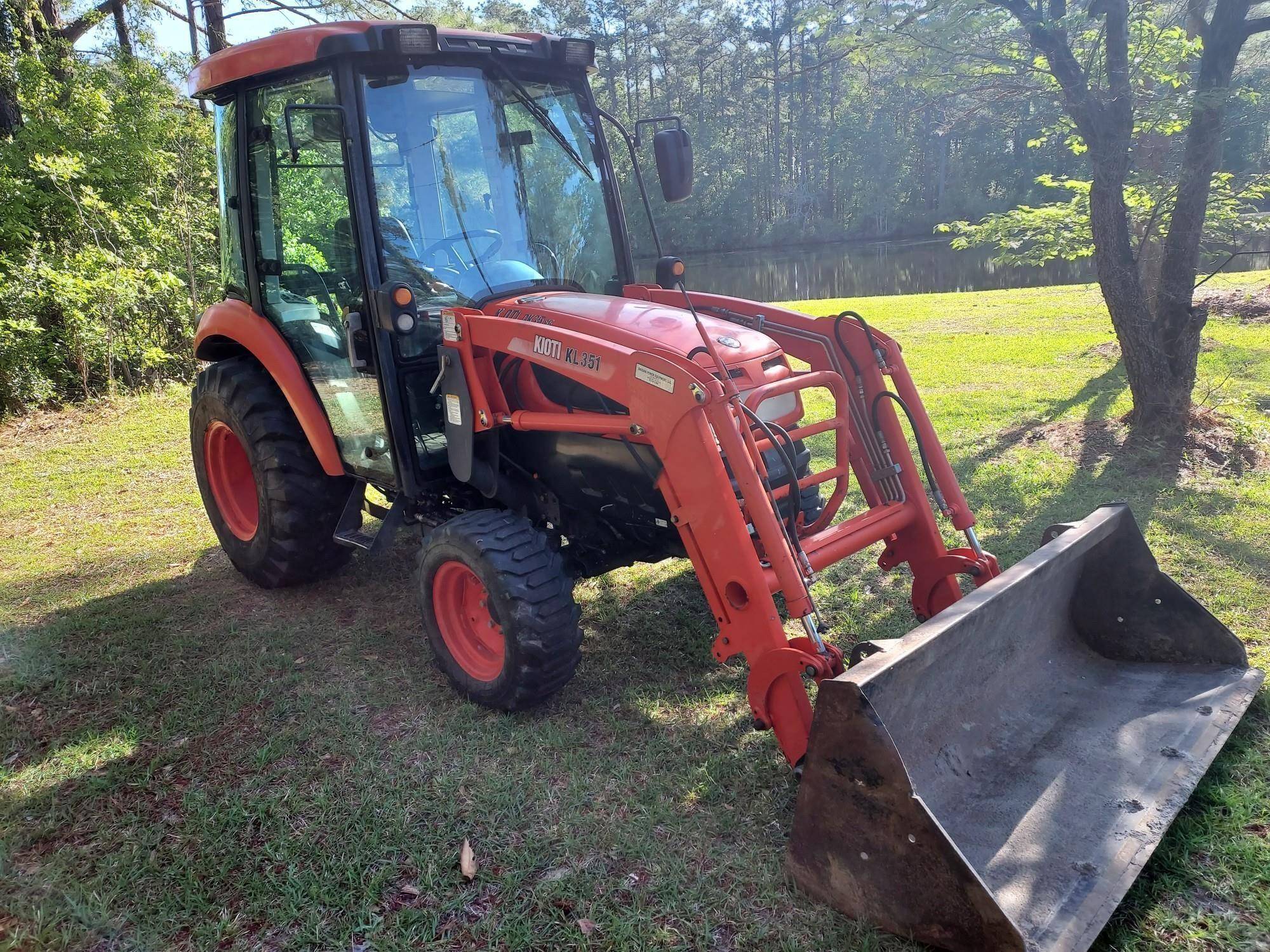

Kioti DK35SE
Kioti DK35SE · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
3915 to 4351 pounds
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Built in Daegu, South KoreaReference
Four-wheel driveReference
Differential lockrear standardReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Foldable ROPS. Canopy optional. Cab optional (hydro only) with heat, air-conditioning, and CD player.Reference
Engine
Daedong 1.8L 3-cyl dieselReference
Fuel tank45.0 LReference
Engine (gross)28.3 kWReference
Daedong 3B183Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.8 LReference
Power (gross)28.3 kWReference
Rated RPM2600Reference
Starter typeelectricReference
Transmission
12-speed synchronized shuttleReference
hydrostaticReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)21.3 kWReference
PTO (claimed)20.1 kWReference
PTO (claimed)19.5 kWReference
Valves1 or 2Reference
Total flow57.5 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)1080 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase176 cmReference
Weight3915 to 4351 poundsReference
Front tire7-16/6Reference
Rear tire12.4-24/6Reference
Weight499 kgReference
Ag front7-16/6Reference
Ag rear12.4-24/6Reference
Lawn/turf front27x8.5-15/4Reference
Lawn/turf rear41x14-20/4Reference
Industrial front27x10.5-15/6Reference
Industrial rear43x16-20/4Reference
Length327 cmReference
Width156 cmReference
Height (ROPS)236 cmReference
Height (cab)242 cmReference
Ground clearance36 cmReference
Front tread124 cmReference
Rear tread123 to 134 cmReference
1797 kgReference
1775 kgReference
1973 kgReference
Kioti DK35SE attachments
front-end loaderReference
backhoeReference
Attachment overview
Kioti KL351 loaderReference
Kioti KL401 loaderReference
BackhoeReference
Kioti KB2485 Backhoe
Backhoe typeKioti KB2485 BackhoeReference
2-Foot flat digging depth239 cmReference
Reach from pivot345 cmReference
Loading height203 cmReference
Bucket force1700 kgReference
Dipperstick force1000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
