Tractor · 2007Unverified

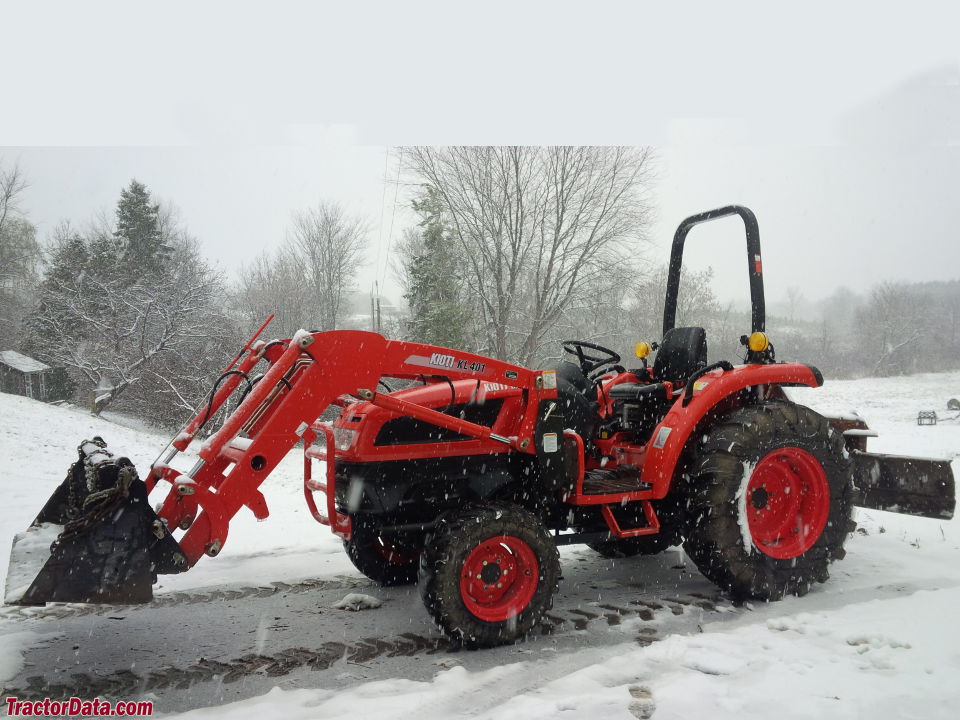

Kioti DK40SE
Kioti DK40SE · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Weight
4130 to 4566 pounds
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Built in Daegu, South KoreaReference
Four-wheel driveReference
Differential lockrear standardReference
Power steeringReference
Wet disc brakesReference
Foldable ROPS. Canopy optional. Cab optional (hydro only) with heat, air-conditioning, and CD player.Reference
Engine
Daedong 2.0L 4-cyl dieselReference
Fuel tank45.0 LReference
Engine (gross)30.6 kWReference
Daedong 4A200Reference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement2.0 LReference
Bore/Stroke83 x 92 mmReference
Power (gross)30.6 kWReference
Rated RPM2600Reference
Starter typeelectricReference
Transmission
12-speed synchronized shuttleReference
hydrostaticReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)25.4 kWReference
PTO (claimed)24.2 kWReference
PTO (claimed)22.5 kWReference
Valves1 or 2Reference
Total flow63.6 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)1130 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase187 cmReference
Weight4130 to 4566 poundsReference
Front tire8-16/6Reference
Rear tire13.6-24/6Reference
Weight499 kgReference
Ag front8-16/6Reference
Ag rear13.6-24/6Reference
Lawn/turf front29x12.5-15/4Reference
Lawn/turf rear21.5L-16.1/4Reference
Industrial front10x16.5/6Reference
Industrial rear14.9x24/8Reference
Length340 cmReference
Width162 cmReference
Height (ROPS)241 cmReference
Height (cab)245 cmReference
Ground clearance37 cmReference
Front tread124 cmReference
Rear tread126 to 148 cmReference
1906 kgReference
1873 kgReference
2071 kgReference
Kioti DK40SE attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Kioti KL351 loaderReference
Kioti KL401 loaderReference
BackhoeReference
Kioti KB2485 Backhoe
Backhoe typeKioti KB2485 BackhoeReference
2-Foot flat digging depth239 cmReference
Reach from pivot345 cmReference
Loading height203 cmReference
Bucket force1700 kgReference
Dipperstick force1000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
