Tractor · 2000Unverified

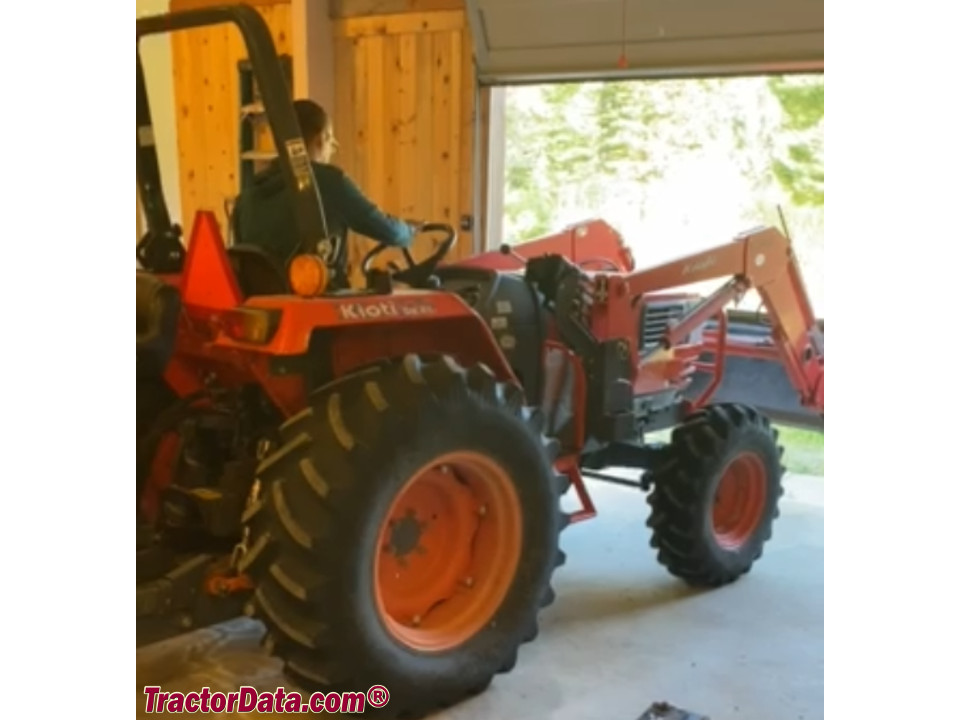

Kioti DK45
Kioti DK45 — DK Series · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
3792 to 4107 pounds
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Built in Daegu, South KoreaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Daedong 2.2L 4-cyl dieselReference
Engine (gross)33.6 kWReference
Daedong 4A220Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power (gross)33.6 kWReference
Fuel systemindirect injectionReference
Rated RPM2600Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity7.0 LReference
Coolant capacity8.9 LReference
Transmission
8-speed synchronized shuttleReference
12-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
Gears12 forward and reverseReference
Oil capacity34.0 LReference
Four gears in three ranges with shuttle.Reference
PTO & Hydraulics
PTO (claimed)28.3 kWReference
Hydraulic system31.0 LReference
Capacity31.0 LReference
Pump flow53.7 lpmReference
Total flow50.0 lpmReference
Steering flow18.9 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)1049 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2507Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Capacities
Fuel40.1 LReference
Dimensions
Wheelbase181 cmReference
Weight3792 to 4107 poundsReference
Front tire9.5-16Reference
Rear tire14.9-24Reference
Weight387 kgReference
Weight444 kgReference
Ag front9.5-16Reference
Ag rear14.9-24Reference
Ag front29x12.5-15Reference
Ag rear21.5L-16.1Reference
Lawn/turf front10x16.5Reference
Lawn/turf rear14.9x24Reference
Length331 cmReference
Width154 cmReference
ROPS Weight1720 kgReference
Cab Weight1862 kgReference
Ground clearance36 cmReference
Front tread125 cmReference
Rear tread121 cmReference
Steering wheel160 cmReference
Kioti DK45 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
Kioti KL1470 loaderReference
Kioti KL1590 loaderReference
Kioti KL249 loaderReference
BackhoeReference
Kioti KB2375 Backhoe
Backhoe typeKioti KB2375 BackhoeReference
Transport height172 cmReference
Bucket width22 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width91 cmReference
Digging depth294 cmReference
Reach from pivot294 cmReference
Loading height183 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1213 kgReference
Dipperstick force954 kgReference
Kioti KB2385 Backhoe
Backhoe typeKioti KB2385 BackhoeReference
Transport height229 cmReference
Bucket width22 cmReference
Bucket width30 cmReference
Bucket width40 cmReference
Bucket width45 cmReference
Bucket width60 cmReference
Bucket width91 cmReference
Digging depth259 cmReference
Reach from pivot326 cmReference
Loading height179 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1610 kgReference
Dipperstick force1009 kgReference
Kioti DK45 Height
ROPS222 cmReference
Height (Folded ROPS)163 cmReference
Cab231 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
