Tractor · 2015Unverified

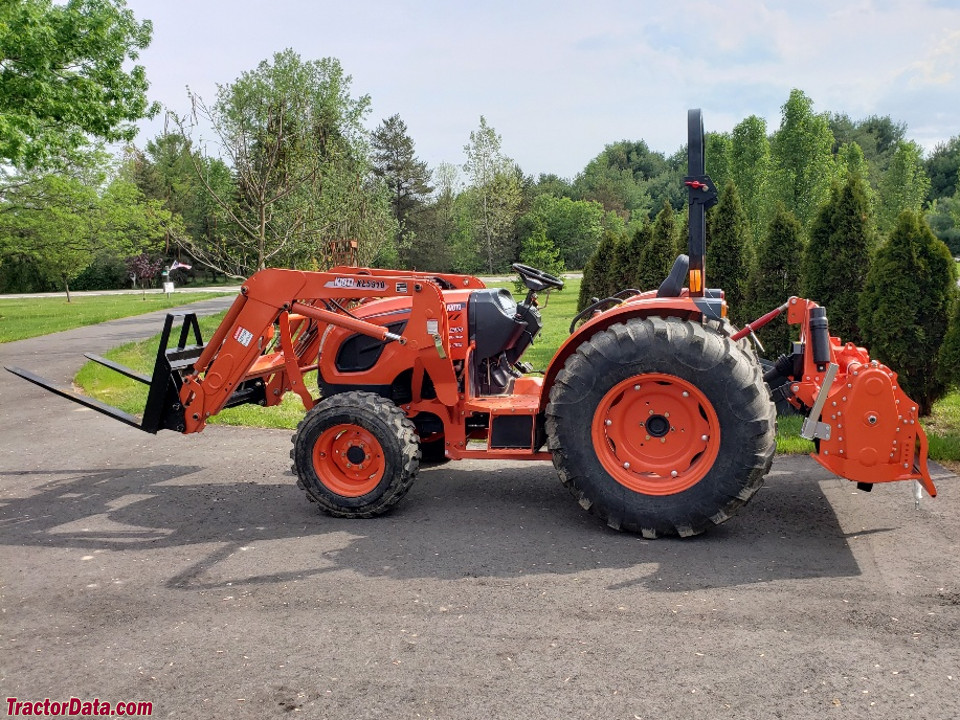

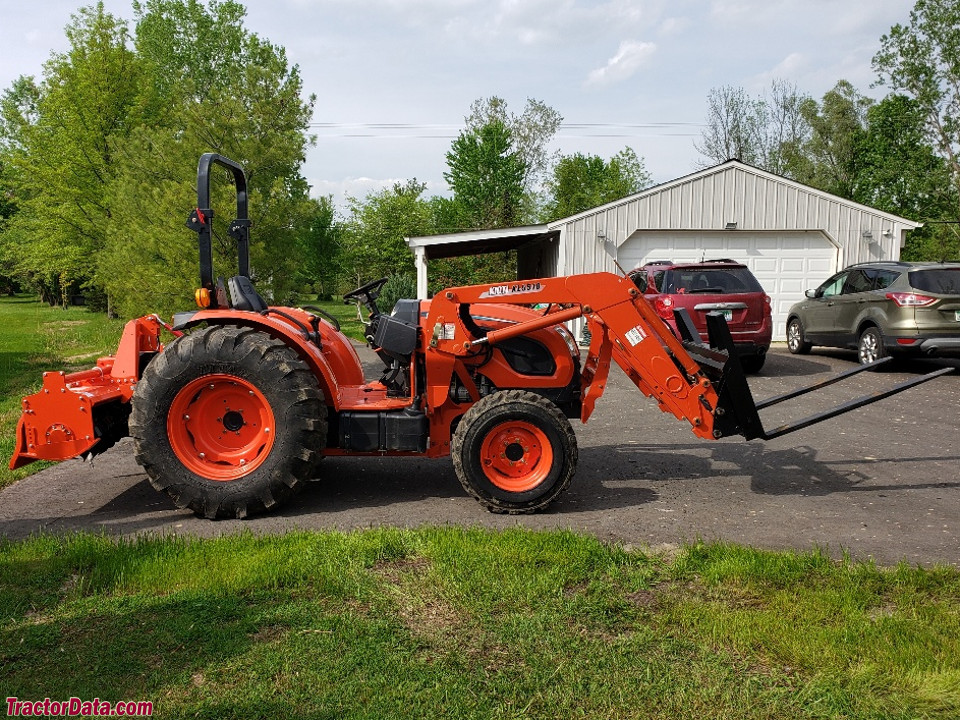

Kioti DK4510
Kioti DK4510 — DK10 Series · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
1529 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Daedong 1.8L 3-cyl dieselReference
Fuel tank45.0 LReference
Engine (gross)33.6 kWReference
Daedong 3F183TReference
turbocharged dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.8 LReference
Bore/Stroke87 x 102 mmReference
Power (gross)33.6 kWReference
Fuel systemcommon rail direct injectionReference
Rated RPM2600Reference
Torque148.1 NmReference
Torque RPM1700Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed mechanical shuttleReference
8-speed power shuttleReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
Typepower shuttleReference
PTO & Hydraulics
PTO (claimed)31.0 kWReference
Typeopen centerReference
Valves2Reference
Total flow54.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)1231 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase181 cmReference
Weight1529 kgReference
Front tire8-16Reference
Rear tire13.6-24Reference
Weight494 kgReference
Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference
Lawn/turf front29-12.5-15Reference
Lawn/turf rear21.5L-16.1Reference
Industrial front10-16.5Reference
Industrial rear14.9-24Reference
Length315 cmReference
Width159 cmReference
Height (ROPS)233 cmReference
Ground clearance38 cmReference
Front tread125 cmReference
Rear tread125 cmReference
Kioti DK4510 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
Kioti KL5510 loaderReference
Kioti KL5520 loaderReference
BackhoeReference
Kioti KB2485L Backhoe
Backhoe typeKioti KB2485L BackhoeReference
Transport height235 cmReference
2-Foot flat digging depth239 cmReference
Reach from pivot345 cmReference
Loading height203 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1700 kgReference
Dipperstick force1000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
