Tractor · 2016Unverified

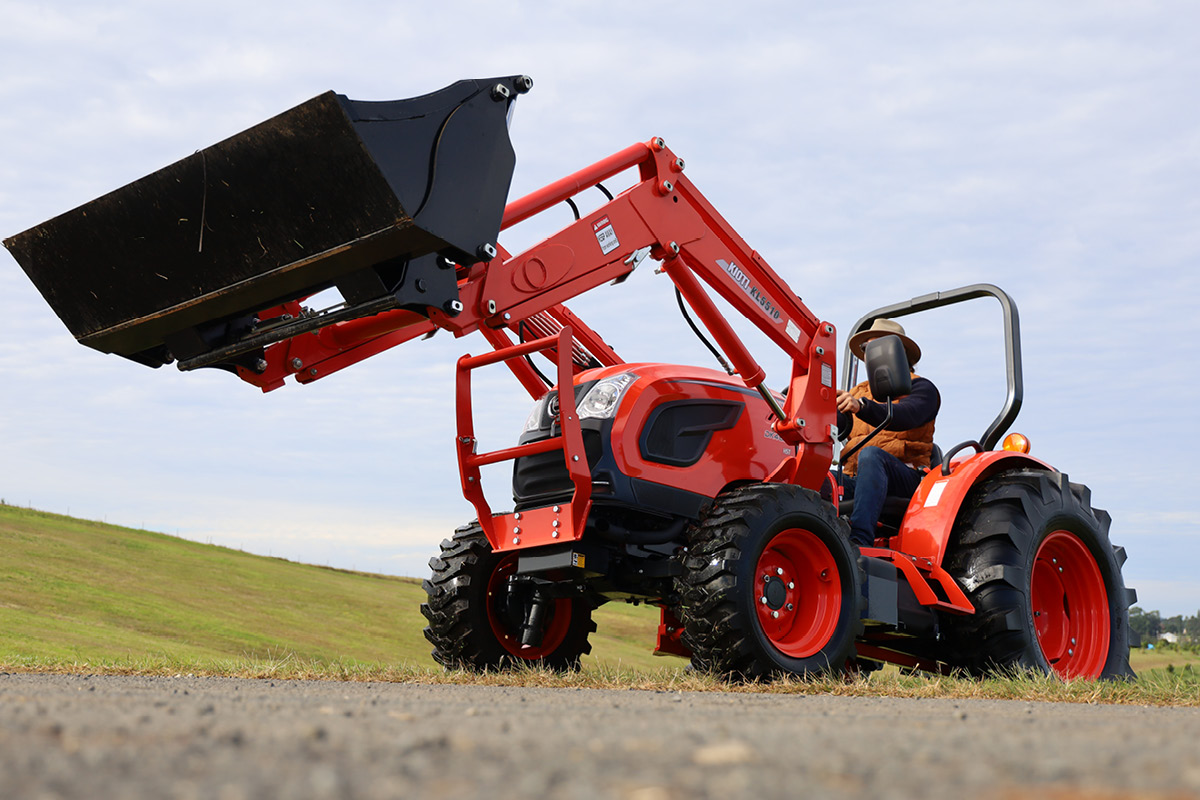

Kioti DK4810
Kioti DK4810 — Compact Utility tractor · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
499 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Daedong 2.4L 4-cyl dieselReference
Fuel tank45.0 LReference
Engine (gross)33.6 kWReference
Daedong 4B243DL-A1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke87 x 102 mmReference
Power (gross)33.6 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed shuttleReference
TypeshuttleReference
Gears8 forward and reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow55.3 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)1232 kgReference
Rear PTOindependentReference
Rear PTO Type540/750Reference
Dimensions
Wheelbase181 cmReference
Weight499 kgReference
Industrial front10-16.5Reference
Industrial rear14.9-24Reference
Length315 cmReference
Width159 cmReference
Height (ROPS)224 cmReference
Ground clearance36 cmReference
Front tread125 cmReference
Rear tread125 cmReference
Kioti DK4810 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kioti KB2485 Backhoe
Backhoe typeKioti KB2485 BackhoeReference
Transport height235 cmReference
2-Foot flat digging depth239 cmReference
Reach from pivot345 cmReference
Loading height203 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1246 kgReference
Dipperstick force1000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
