Tractor · 2007Unverified
Kioti DK50SE
Kioti DK50SE — Compact Utility tractor · 49 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
49 hp
Weight
3902 to 4354 pounds
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Built in Daegu, South KoreaReference
Four-wheel driveReference
Differential lockrear standardReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Foldable ROPS. Canopy optional. Cab optional with heat, air-conditioning, and CD player.Reference
Engine
Daedong 2.4L 4-cyl dieselReference
Fuel tank45.0 LReference
Engine (gross)36.5 kWReference
Daedong 4B243LWHReference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement2.4 LReference
Power (gross)36.5 kWReference
Rated RPM2600Reference
Starter typeelectricReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)28.0 kWReference
PTO (claimed)26.5 kWReference
Valves1 or 2Reference
Total flow63.6 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)1130 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Wheelbase187 cmReference
Weight3902 to 4354 poundsReference
Front tire8-16/6Reference
Rear tire13.6-24/6Reference
Weight499 kgReference
Ag front8-16/6Reference
Ag rear13.6-24/6Reference
Lawn/turf front29x12.5-15/4Reference
Lawn/turf rear21.5L-16.1/4Reference
Industrial front10x16.5/6Reference
Industrial rear14.9x24/8Reference
Length340 cmReference
Width162 cmReference
Height (ROPS)241 cmReference
Height (cab)245 cmReference
Weight1769 kgReference
Weight1974 kgReference
Ground clearance37 cmReference
Front tread124 cmReference
Rear tread126 to 148 cmReference
Kioti DK50SE attachments
front-end loaderReference
backhoeReference
Attachment overview

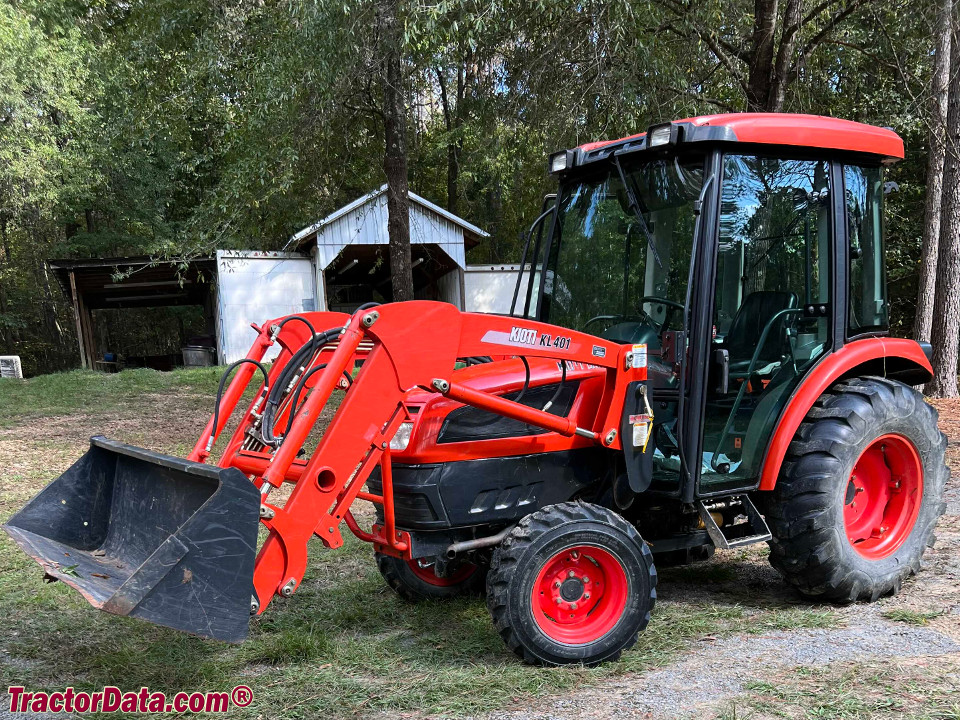

Kioti KL351 loaderReference
Kioti KL401 loaderReference
BackhoeReference
Kioti KB2485 Backhoe
Backhoe typeKioti KB2485 BackhoeReference
2-Foot flat digging depth239 cmReference
Reach from pivot345 cmReference
Loading height203 cmReference
Bucket force1700 kgReference
Dipperstick force1000 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
