Tractor · 2010Unverified

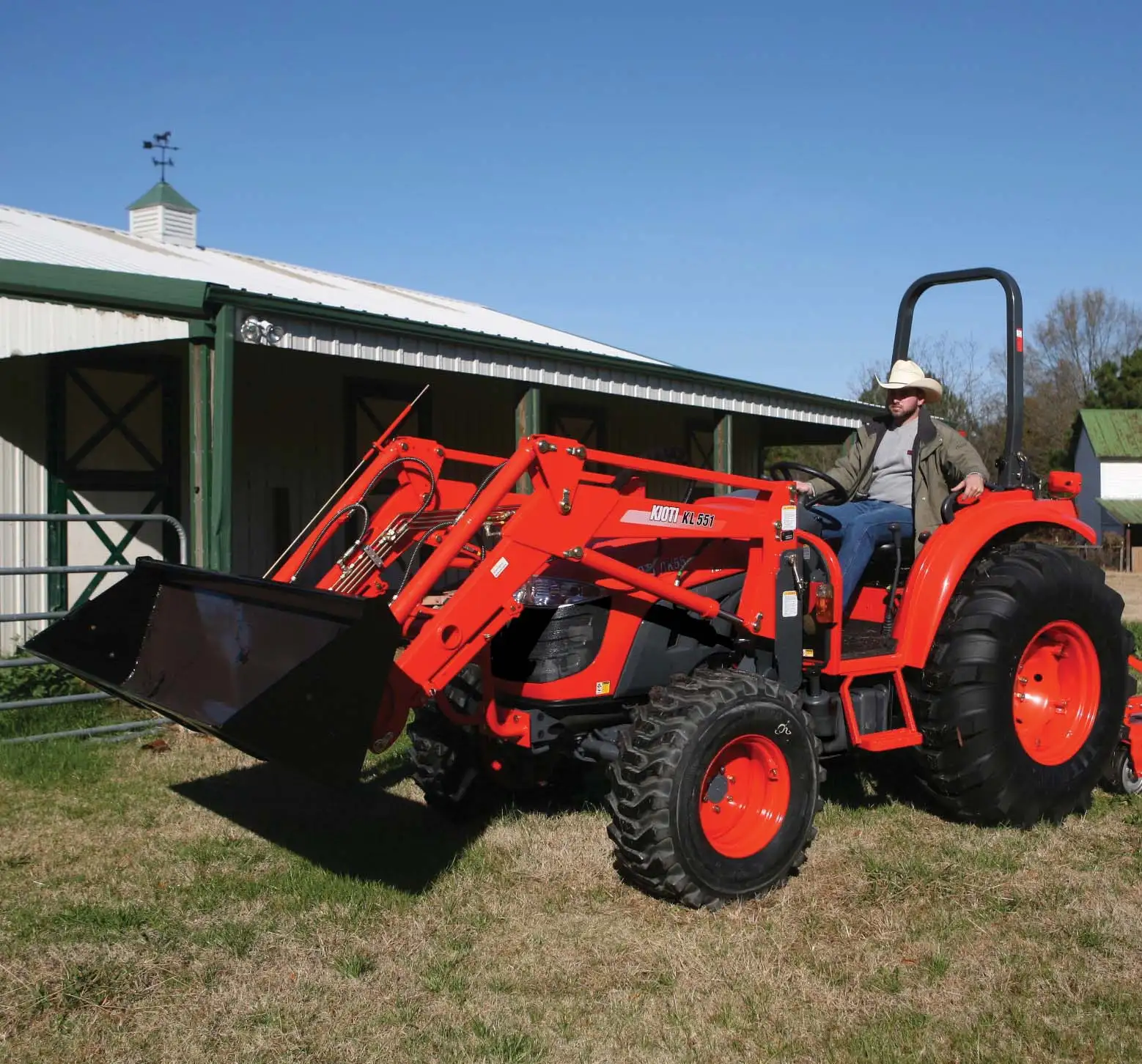

Kioti DK551
Kioti DK551 — Compact Utility tractor · 54 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
54 hp
Weight
4612 to 5203 pounds
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Engine
Daedong 2.2L 4-cyl dieselReference
Fuel tank68.1 LReference
Engine (gross)40.3 kWReference
Daedong 4A220TLXBReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power (gross)40.3 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchro shuttleReference
Typesynchro shuttleReference
Gears12 forward and reverseReference
Clutch275mm dry discReference
PTO & Hydraulics
Typeopen centerReference
Valves2Reference
Pump flow37.5 lpmReference
Total flow62.5 lpmReference
Steering flow25.0 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift (at ends)1203 kgReference
Rear PTOindependentReference
Rear PTO Type540/750/1000Reference
Dimensions
Wheelbase192 cmReference
Weight4612 to 5203 poundsReference
Front tire9.5-20Reference
Rear tire14.9-28Reference
Weight444 kgReference
Standard tires (ag)Front: 9.5-20. Rear: 14.9-28Reference
Length366 cmReference
Width173 cmReference
Height (ROPS)271 cmReference
Height (cab)247 cmReference
ROPS Weight2092 kgReference
Cab Weight2360 kgReference
Ground clearance46 cmReference
Front tread144 cmReference
Rear tread135 to 158 cmReference
Kioti DK551 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Kioti KB2385 Backhoe
Backhoe typeKioti KB2385 BackhoeReference
Transport height220 cmReference
2-Foot flat digging depth240 cmReference
Reach from pivot326 cmReference
Loading height200 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1610 kgReference
Dipperstick force1009 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
