Tractor · 2005Unverified

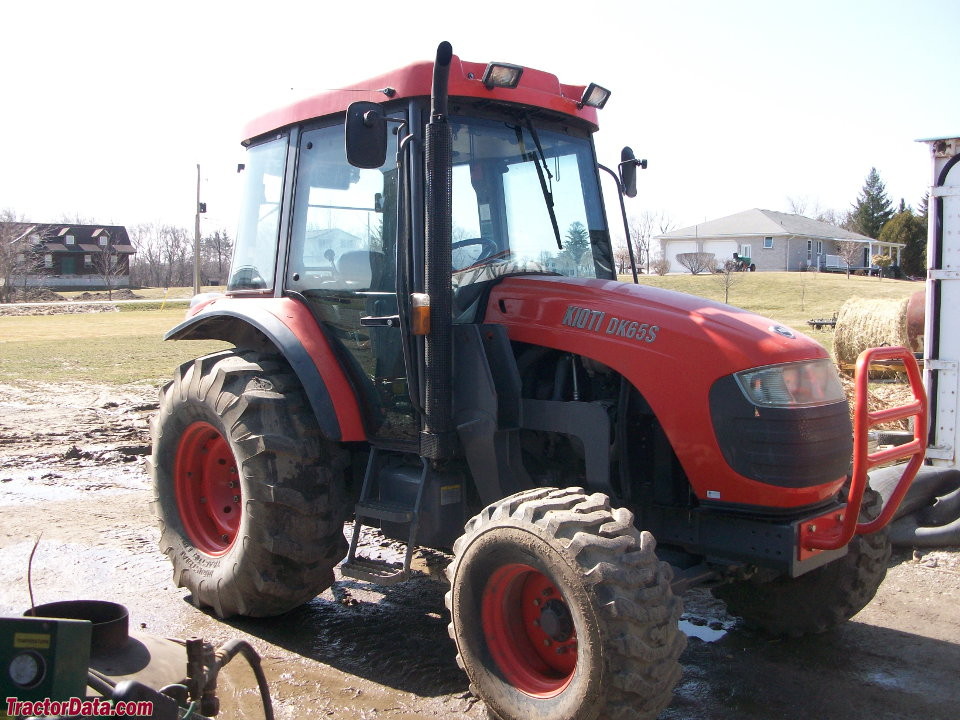

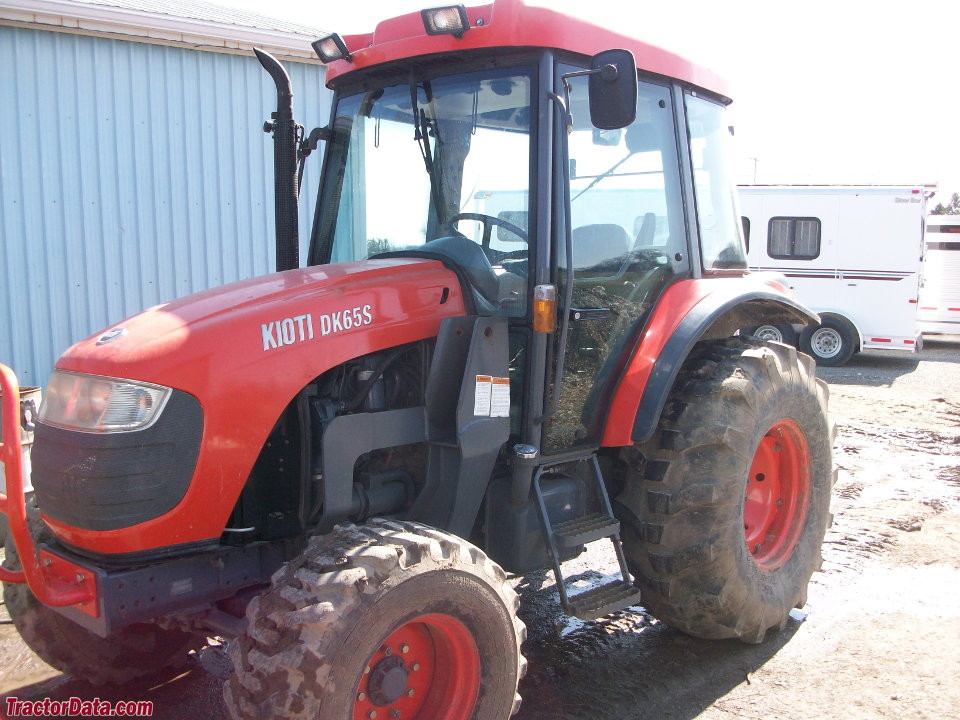

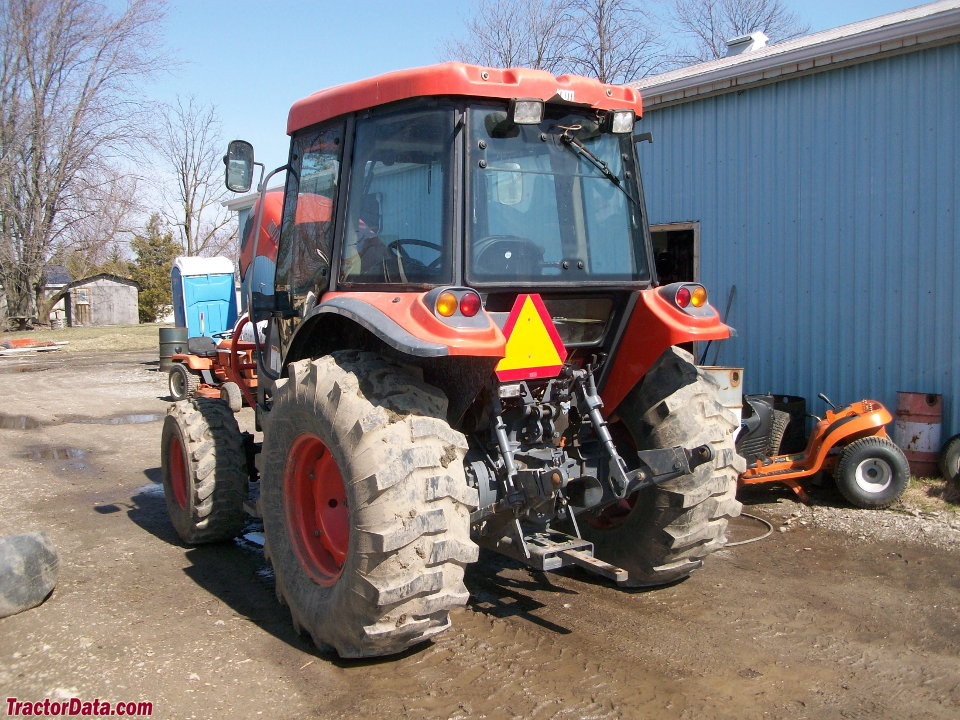

Kioti DK65S
Kioti DK65S — DK Series · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Weight
6503 to 6856 pounds
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Compact Utility tractorReference
Four-wheel driveReference
Differential lockfront and rear lockReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Engine
Perkins 3.3L 3-cyl dieselReference
Fuel tank100.3 LReference
Engine (gross)47.7 kWReference
Perkins 1103C-33TReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke105 x 127 mmReference
Power (gross)47.7 kWReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Typeopen centerReference
Rear valves2 or 3Reference
Pump flow41.2 lpmReference
Steering flow31.7 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)2199 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase204 cmReference
Weight6503 to 6856 poundsReference
Front tire9.5-24Reference
Rear tire16.9-30Reference
Ag front9.5-24Reference
Ag rear16.9-30Reference
Lawn/turf front31x13.50-15Reference
Lawn/turf rear44x18.00-20Reference
Industrial front14-17.5Reference
Industrial rear18.4-24Reference
Length406 cmReference
Width175 cmReference
Height (ROPS)278 cmReference
Height (cab)264 cmReference
ROPS Weight2949 kgReference
Cab Weight3109 kgReference
Ground clearance42 cmReference
Front tread147 cmReference
Rear tread137 to 156 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
