Tractor · 2005Unverified

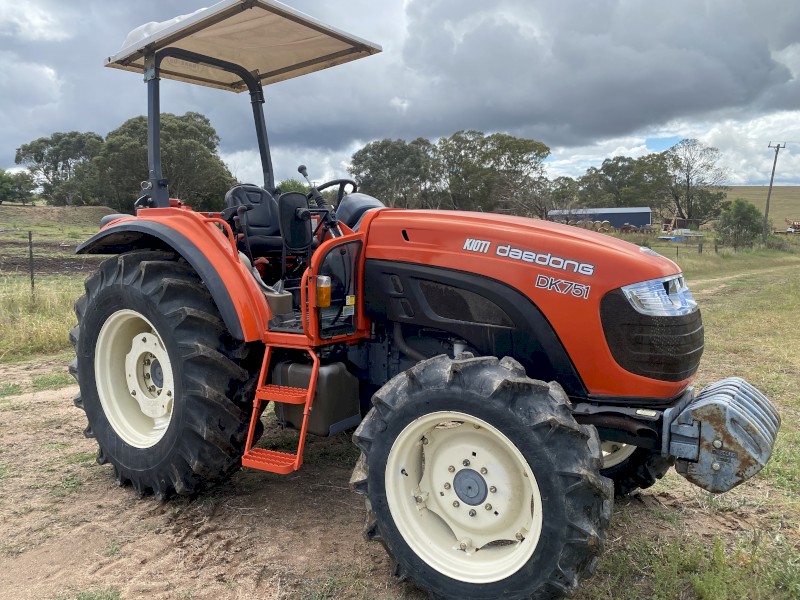

Kioti DK751

Name: Kioti DK751
Brand: Kioti

Kioti DK751 — Utility tractor · 72 hp. Reference specifications; pending source verification.

The Kioti DK751 is a tractor with a rated power of 72 hp, a mid-range figure within its class. It was manufactured from 2005 to 2012. The tractor is powered by a 4-cylinder diesel liquid-cooled engine, paired with a four-wheel drive system and a 12-speed gearbox. Its operating weight is listed at 3331 kg, making it suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

72 hp

Max power

72.4 hp

Weight

3331 kg

Catalogue coverage

Variants represented

Richest spec table

92 rows

Recorded power

72 hp

Recorded weight

3331 kg

Transmissions

12-speed synchromesh

Production years

2005-2012

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerKioti (a part of Daedong)Reference

Utility tractorReference

Built in South KoreaReference

Four-wheel driveReference

Differential lockfront and rear lockReference

Power steeringReference

Hydraulic wet disc brakesReference

Two-post ROPS. Cab available with air-conditioning.Reference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank99.9 LReference

Engine (gross)54.0 kWReference

Perkins 1104C-44Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

Power (gross)54.0 kWReference

Compression19.3:1Reference

Rated RPM2200Reference

Firing order1-3-4-2Reference

StarterelectricReference

Starter volts12Reference

Oil capacity10.5 LReference

Coolant capacity18.5 LReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Bore and stroke4.135x5.00 inchesReference

Compression ratio19.3:1Reference

Cooling systemliquid-cooledReference

Transmission

12-speed synchromeshReference

TypesynchromeshReference

Gears12 forward and reverseReference

Clutch325mm dry discReference

Oil capacity60.0 LReference

Transmission TypeSync ShuttleReference

forward and reverse optionsSynchromesh : 12F and 12 RReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeopen centerReference

Valves2Reference

Pump flow45.4 lpmReference

Total flow77.2 lpmReference

Steering flow31.8 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at ends)2399 kgReference

Rear PTOindependentReference

Rear PTO Type540/750 (1.375)Reference

Dimensions

Wheelbase214 cmReference

Weight3331 kgReference

Front tire11.2-24Reference

Rear tire18.4-30Reference

Standard tires (ag)Front: 11.2-24. Rear: 18.4-30Reference

Length414 cmReference

Width185 cmReference

Height (ROPS)287 cmReference

Height (cab)271 cmReference

Ground clearance44 cmReference

Front tread153 cmReference

Rear tread150 to 190 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

General

Make & ModelKioti (a part of Daedong)Reference

SCV controlJoystickReference

Rollover protective structureTwo-post ROPS.Reference

Country of manufacturerSouth KoreaReference

Capacities

Capacity268.5 ciReference

Crankcase oil volume11.1 qtsReference

Power

Max Power72.4 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM750 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)20.4 gpmReference

Hydraulics Typeopen centerReference

Remote Valves2 ValvesReference

Steering & Implements flow8.4 gpm (12 gpm)Reference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity2,400 kgReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Height Over Cab271 cmReference

Height Over ROPS287.5 cmReference

Overall Length414.3 cmReference

Overall Width185.4 cmReference

Overall weight3,331.2 kgReference

Wheels & tyres

Rear Wheel TypeRear: 18.4-30Reference

Rear wheel tread range59.2 to 75 inchesReference

Front Wheel TypeFront: 11.2-24.Reference

Front Wheel tread range153.4 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
