Tractor · 2007Unverified

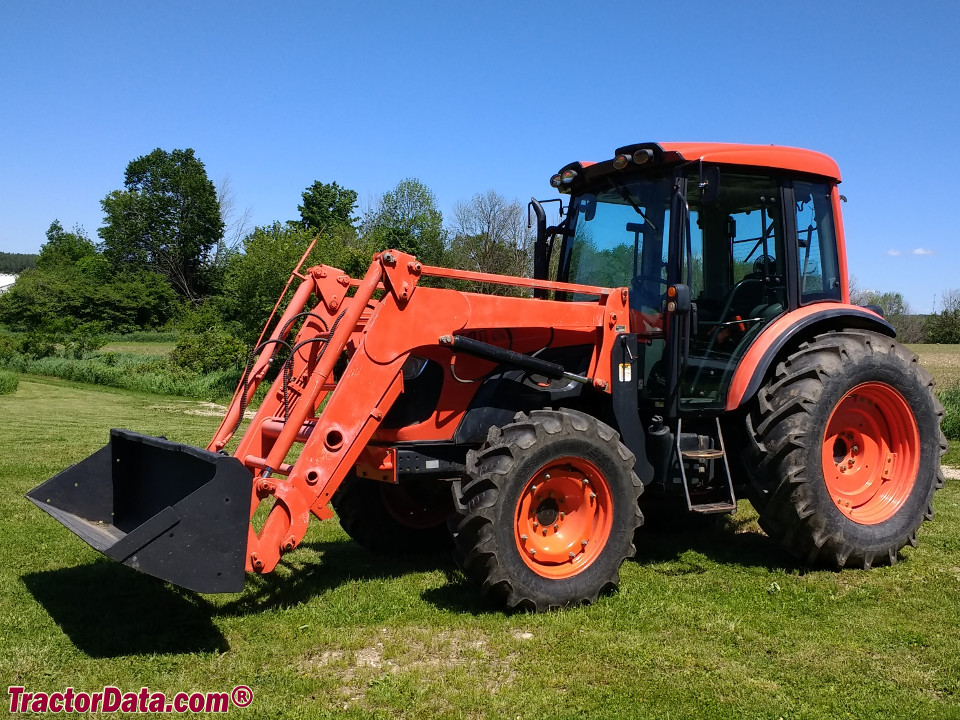

Kioti DK90
Kioti DK90 · 91 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
91 hp
Weight
4039 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Built in Daegu, South KoreaReference
Four-wheel driveReference
Differential lockrear standardReference
Steeringhydrostatic powerReference
Hydraulic wet disc brakesReference
Cab standard with heat, air-conditioning, and radio with CD and iPod jack.Reference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank124.9 LReference
Engine (gross)68.0 kWReference
Perkins 1104D-44TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement4.4 LReference
Power (gross)68.0 kWReference
Air cleanerdry cartridgeReference
Pre-heatingglow plugsReference
Rated RPM2200Reference
Starter typeelectricReference
Transmission
16-speed synchronized shuttleReference
Typesynchronized shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)58.2 kWReference
Valves2 or 3Reference
Pump flow48.4 lpmReference
Total flow83.6 lpmReference
Steering flow35.2 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)2399 kgReference
Rear PTOindependentReference
Rear PTO Typeground/540/1000Reference
Dimensions
Wheelbase230 cmReference
Weight4039 kgReference
Front tire12.4x24Reference
Rear tire18.4x34Reference
Ag front12.4x24Reference
Ag rear18.4x34Reference
Length411 cmReference
Width199 cmReference
Height (cab)281 cmReference
Ground clearance49 cmReference
Front tread151 to 171 cmReference
Rear tread156 to 196 cmReference
Kioti DK90 attachments
front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
