Tractor · 2005Unverified

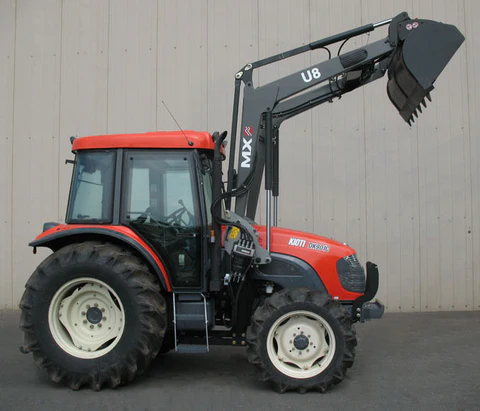

Kioti DK901
Kioti DK901 — Utility tractor · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Weight
3557 kg
Hover a source tag to verify
Overview
ManufacturerKioti (a part of Daedong)Reference
Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Differential lockfront and rear lockReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS. Cab available with air-conditioning.Reference
Engine
Perkins 4.4L 4-cyl dieselReference
Fuel tank99.9 LReference
Engine (gross)67.1 kWReference
Perkins 1104C-44TReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke105 x 127 mmReference
Power (gross)67.1 kWReference
Compression18.2:1Reference
Rated RPM2200Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Oil capacity10.5 LReference
Coolant capacity18.5 LReference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and reverseReference
Clutch325mm dry discReference
Oil capacity60.0 LReference
PTO & Hydraulics
Typeopen centerReference
Valves2Reference
Pump flow45.4 lpmReference
Total flow77.2 lpmReference
Steering flow31.8 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)2399 kgReference
Rear PTOindependentReference
Rear PTO Type540/750 (1.375)Reference
Dimensions
Wheelbase214 cmReference
Weight3557 kgReference
Front tire12.4-24Reference
Rear tire18.4-34Reference
Standard tires (ag)Front: 12.4-24. Rear: 18.4-34Reference
Length426 cmReference
Width185 cmReference
Height (ROPS)292 cmReference
Height (cab)275 cmReference
Ground clearance46 cmReference
Front tread157 cmReference
Rear tread153 to 193 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
