Tractor · 2007Unverified

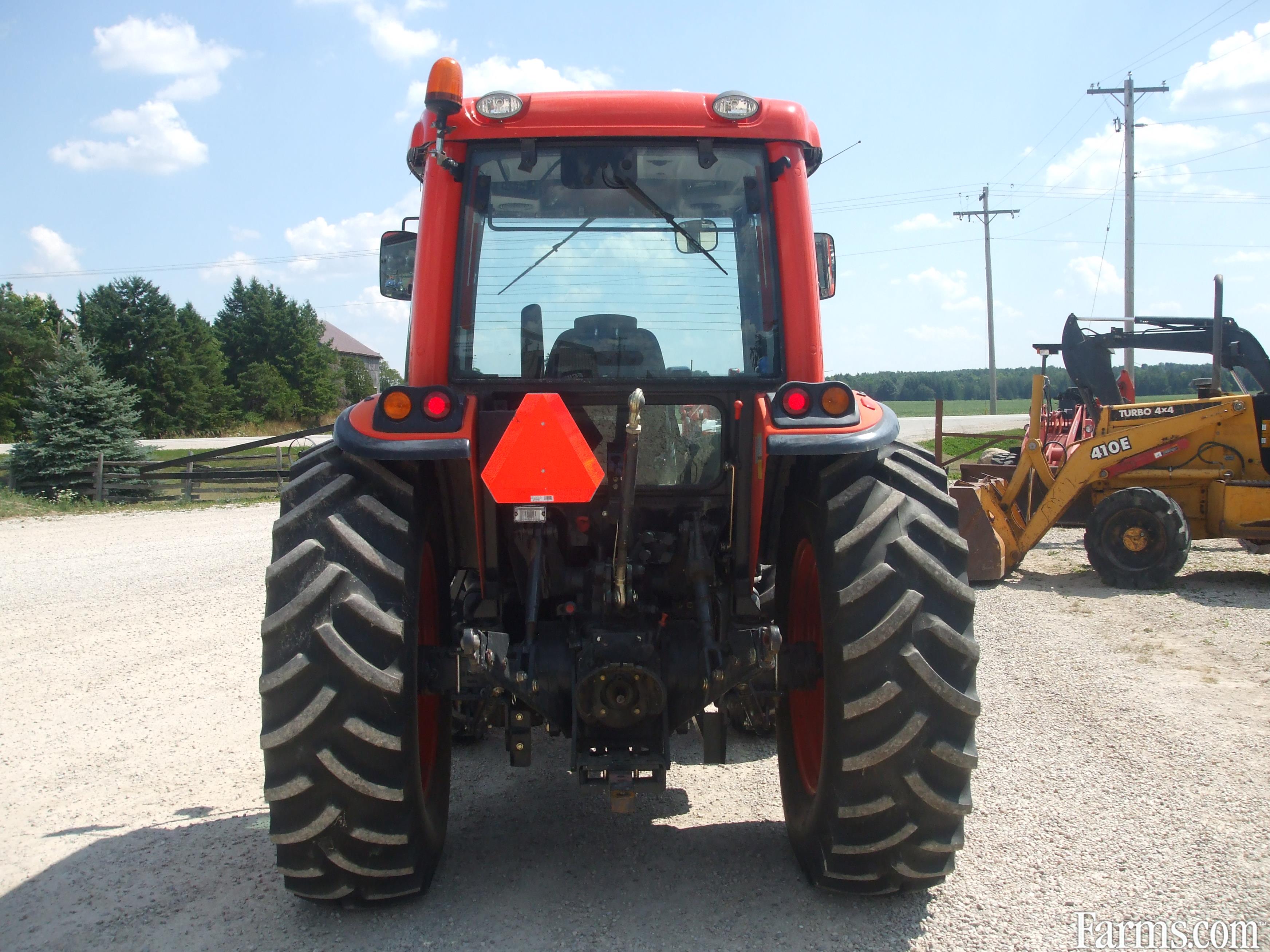

Kioti DK902

Name: Kioti DK902
Brand: Kioti

Kioti DK902 — Utility tractor · 90 hp. Reference specifications; pending source verification.

The Kioti DK902 tractor is a mid-range model rated at approximately 90 hp, suitable for a variety of operations. Produced in 2007, it features a 4-cylinder turbocharged diesel liquid-cooled engine paired with four-wheel drive and a 16-speed gearbox. This model is designed for use on plots of land ranging from 200 to 800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

90 hp

Max power

90 hp

Catalogue coverage

Variants represented

Richest spec table

87 rows

Recorded power

90 hp

Transmissions

16-speed synchromesh

Production years

2007-2007

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerKioti (a part of Daedong)Reference

Utility tractorReference

Built in South KoreaReference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Cab standard with air-conditioning.Reference

Engine

Perkins 4.4L 4-cyl dieselReference

Fuel tank99.9 LReference

Engine (gross)67.1 kWReference

Perkins 1104C-44TReference

turbocharged dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.4 LReference

Bore/Stroke105 x 127 mmReference

Power (gross)67.1 kWReference

Compression18.2:1Reference

Rated RPM2200Reference

Firing order1-3-4-2Reference

StarterelectricReference

Starter volts12Reference

Oil capacity10.5 LReference

Coolant capacity18.5 LReference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,200 RPMReference

Bore and stroke4.135x5.00 inchesReference

Compression ratio18.2:1Reference

Cooling systemliquid-cooledReference

Transmission

16-speed synchromeshReference

TypesynchromeshReference

Gears16 forward and reverseReference

Clutch325mm dry discReference

Oil capacity74.0 LReference

Transmission TypeSync ShuttleReference

forward and reverse optionsSynchromesh : 16F and 16 RReference

Wheel Drive4WDReference

PTO & Hydraulics

Typeopen centerReference

Valves2Reference

Pump flow45.4 lpmReference

Total flow77.2 lpmReference

Steering flow31.8 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift (at ends)2399 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase230 cmReference

Front tire12.4-24Reference

Rear tire18.4-34Reference

Standard tires (ag)Front: 12.4-24. Rear: 18.4-34Reference

Length453 cmReference

Width198 cmReference

Height (cab)279 cmReference

Ground clearance42 cmReference

Front tread147 cmReference

Rear tread153 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery volts12Reference

General

Make & ModelKioti (a part of Daedong)Reference

SCV controlJoystickReference

Country of manufacturerSouth KoreaReference

Capacities

Capacity268.5 ciReference

Crankcase oil volume11.1 qtsReference

Power

Max Power90 hpReference

PTO

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Steering & brakes

Brakeshydraulic wet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)20.4 gpmReference

Hydraulics Typeopen centerReference

Remote Valves2 ValvesReference

Steering & Implements flow8.4 gpm (12 gpm)Reference

Rear Hitch category (SAE designation)Category IIReference

Rear Hitch maximum lift capacity2,400 kgReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Height Over Cab279.4 cmReference

Overall Length453.9 cmReference

Overall Width198.6 cmReference

Wheels & tyres

Rear Wheel TypeRear: 18.4-34Reference

Rear wheel tread range153.4 cmReference

Front Wheel TypeFront: 12.4-24.Reference

Front Wheel tread range147.1 cmReference

Operator station

Cab AvailabilityAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
